M44MV
HDMI 2.0b (18Gbps) Scaling Fast Switch with Video Wall and Multiview Functions
The M44-MV is a Scaling HDMI 2.0b (18Gbps) 4 x 4 HDMI matrix that supports video wall and Multiview functions. The M44-MV is a fast switch (switching functions are instantaneous). Resolutions, color space, HDCP, and EDID are fully editable. There are four HDMI inputs and 4 HDMI outputs. The M44-MV can be used as a matrix with Multiview functions, a video wall processor, or any combination of the above. In addition, the audio functions are incredibly diverse. Audio can be bound to input, output, ARC, or in a matrix function.
Primary Use: Varies as it is a fast switch, video wall processor and Multiview unit in a single device
Drivers
Features
• HDMI 2.0b (18Gbps) and HDCP 2.2 compliant |
• Each output can scale independently from each other, including the HDMI |
• DolbyVision™ and all HDR formats are supported |
• 4 HDMI output ports support 18Gbps lossless uncompressed video |
• Supports 12 different viewing options in multiview mode and 9 options in video wall mode |
• Audio functions include, bind to input, bind to output, ARC, and matrix function |
• ARC Audio can be returned from the display to the matrix via HDMI cable or ARC over category cable extender |
• IR can be routed through the matrix independently as well |
• Supports video resolution up to 4K@60Hz 4:4:4 (can be fully adjusted) |
• The M44-MV supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio |
• Intelligent EDID management combined with scaling, color space options, and HDCP selection, makes the M44-MV easy to use with multiple displays with different resolutions and/or capabilities |
• Control options include via the front panel, IR remote, web GUI, or control with a third-party control device via IR, RS232, or LAN |
• Advanced EDID management |
• 3-Year Warranty |
Specifications
Technical | |
HDMI Compliance | 2.0b |
HDCP | 2.2 |
Video Bandwidth | (18Gbps) |
Video Resolutions | Up to 4K2K@50/60Hz (4:4:4) |
Transmission Distance | HDMI output only |
HDMI Audio Format | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
Optical Audio Formats | PCM 2.0, Dolby Digital / Plus, DTS |
L/R Audio Formats | PCM2.0 |
HDR Formats | HDR, HDR10, HDR10+, DolbyVision™, HLG |
Transmission Distance | 70M (CAT6/6a/7) |
IR Level | 12Vp-p |
IR Frequency | Wideband 20KHz ~ 60KHz |
Color Depth | 8/10/12bit |
Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
ESD Protection: Human Body Model | ±8kV (air-gap discharge) ±4 kV (contact discharge) |
3-Year Warranty |

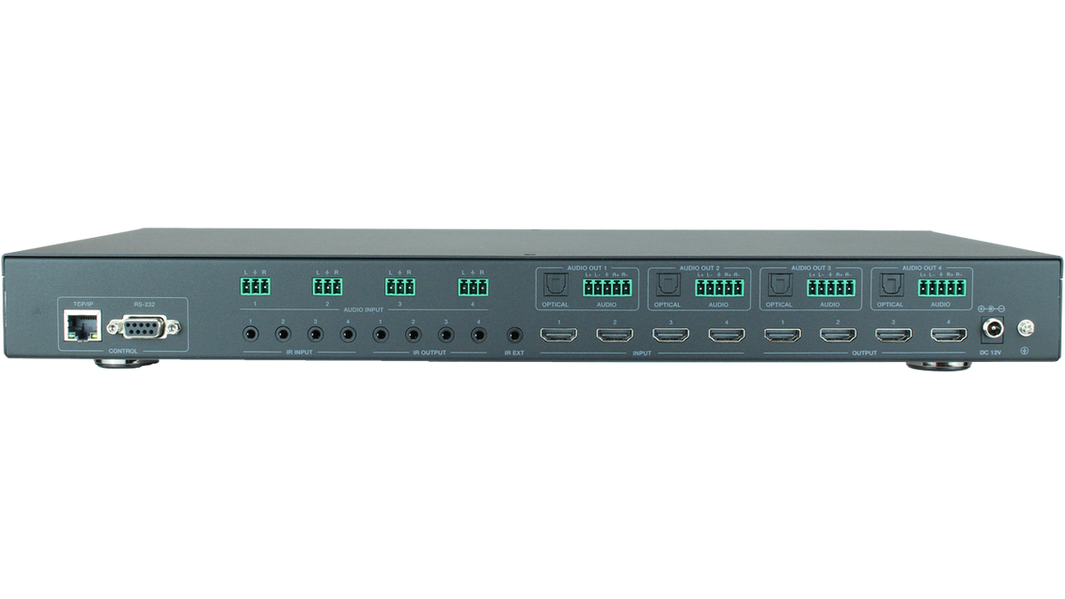

Connections | |
Inputs | 4×INPUT [HDMI Type A, 19-pin female] 4x L/R Audio Input [3-Pin Phoenix] |
Outputs | 4×HDMI OUTPUT [HDMI Type A, 19-pin female] 4×S/PDIF(Optical) 4×Stereo Audio [3-Pin Phoenix Connector] |
Control Ports | 1 × TCP/IP [RJ45] 1 × RS-232 [D-Sub 9] 1 × IR EXT [3.5mm, Stereo Mini-jack] 4 × IR INPUT [3.5mm, Stereo Mini-jack] 4 × IR OUTPUT [3.5mm, Stereo Mini-jack] |
Mechanical | |
Housing | Metal Enclosure |
Color | Matte Black |
Dimensions | TX: 440mm [17.32”] (W)×203mm [8”] (D)x 44.5mm [1.75”] (H) |
Weight | TX: 2550g/5 Pounds, 10 Oz. |
Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
Power Consumption | 25W (Max) |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% (non-condensing) |
Resolution/ Distance | 1080p - Feet/Meters | 4K60 - Feet/Meters |
CAT5e/6/7 | 230ft/70m | 131ft/40m |
Resolution/ Cable length | 4K60 -Feet/Meters | 4K30 - Feet/Meters | 1080p60 - Feet/Meters |
HDMI IN/OUT | 16ft/5m | 32ft/10m | 50ft/15m |
*The use of "Premium High-Speed" cable is highly recommended.
