CXM1616

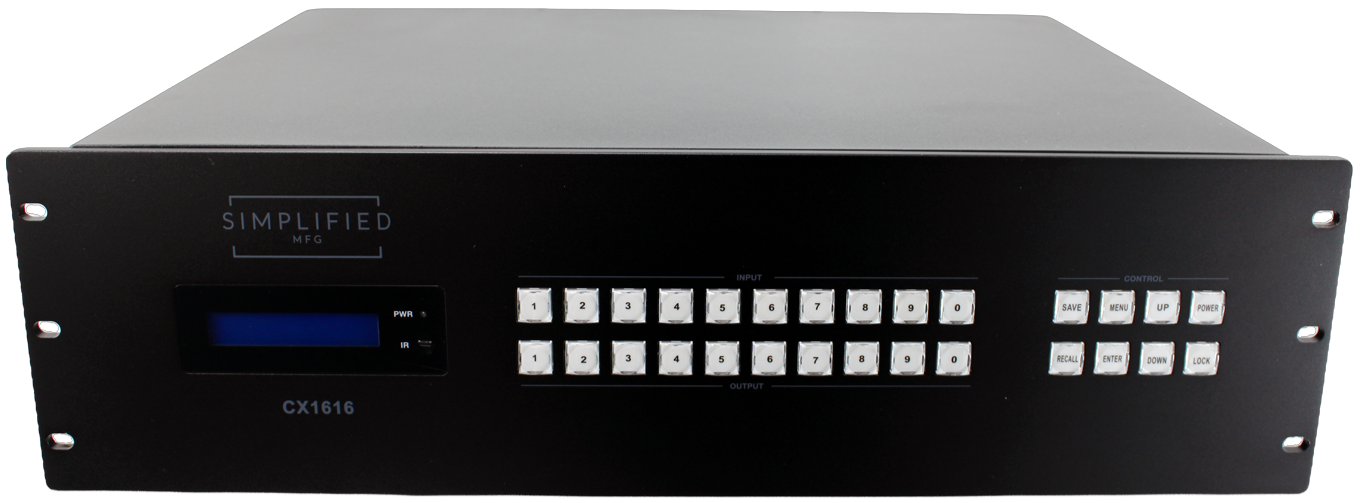

CXM1616 (pictured) and CXM3636 Chassis
Configurable Matrices
The Centrinsix configurable matrices are available in two chassis sizes. An 8 bay (4 input/4 output) and a 18 bay (9 input/9 output). Each input/output card has 4 inputs or outputs. The type of outputs depend on the model of the card. Right now there is a HDMI output with analog audio breakout and a 120m HDBaseT output card with analog audio breakout with RS-232 pass-thru. The input card is HDMI 2.0b (18Gbps) and has a 3.5mm combination audio breakout that supports optical and analog. These cards go into the chassis and are held in place with thumb screws and a rail alignment system to assure a secure connection. The chassis has a power supply card and control card already populated. The input and output cards are added by removing a blank cover and sliding the card into place using the rail alignment system and locked into place with the thumb screws.
Drivers:
Current Input and output cards.
Features:
• Configurable up to 16x16(CXM1616) and 36x36 (CXM3636) in steps of four (input and outputs cards)
• Fast switch (instant)
• 18Gbps (HDMI 2.0b) matrix
• 3.5mm combination optical/analog audio breakout/audio overlay port on each card
• Intuitive WEB GUI for setup and control
• Full scaling on each output assures compatibility with most displays
• HDCP processing to avoid HDCP issues
• 64 Scenes can be preset and recalled
• HLG, WCG, HDR10+ and DolbyVision™ support
• 3.5mm combination optical/analog audio breakout on each card
• 120m, 50m, and HDMI out cards
• Video Wall capability
• Control via front panel buttons, 3rd party (RS-232 or TCP/IP), or web GUI
Application Example:
Specifications:
Technical | |
HDMI Compliance | HDMI 2.0b (18Gbps) |
HDCP Compliance | HDCP2.2 |
Video Bandwidth | 600MHz. / 18Gbps |
Video Resolution | 3840 x 2160p |
Color Depth | 8/10/12-bit |
Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
Audio Formats | HDMI Audio Analog Audio LPCM 2.0 Optical Audio LPCM 2.0, Dolby Digital 5.1, & DTS 5.1 |
Transmission Distance | CX 4 HDBT120-OUT -120m at 4K, 150m at 1080p CX 4 CAT50-OUT – 50m at 4K, 50m at 1080p |
ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
Connections | |
Input Ports | 4 Cards on CXM1616, 9 Cards on CXM3636 total of 16 and 36 respectively |
Output Ports | 4 Cards on CXM1616, 9 Cards on CXM3636 total of 16 and 36 respectively |
Control Ports | Control card has the following ports, 1 RS-232 In, 1 RS-232 OUT, 1 RJ-45 LAN port, and a recessed reset button |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |
Dimensions | CXM1616: 483mm/17.05” (W) × 379mm/14.92” (D) × 133mm/5.24” (H) CXM3636: 483mm/17.05” (W) × 378mm/14.88” (D) × 266mm/10.47” (H) |
Weight | CXM1616: 8.62kg/19lbs. (without cards) CXM3636: 15.4kg/33lbs., 15.29 oz. (without cards) |
Power Supply | AC 100-240VAC, 50/60Hz. |
Power Consumption | CXM1616: 80-320W, depending on number of cards and type of cards CXM3636: 200-840W, depending on number of cards and type of cards |
Operating Temp | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temp | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (no condensation) |
