TXIWKT

TXIWKT

$0.00Price
Quantity
HDMI/USB-C Over Category Cable In Wall Kit
​

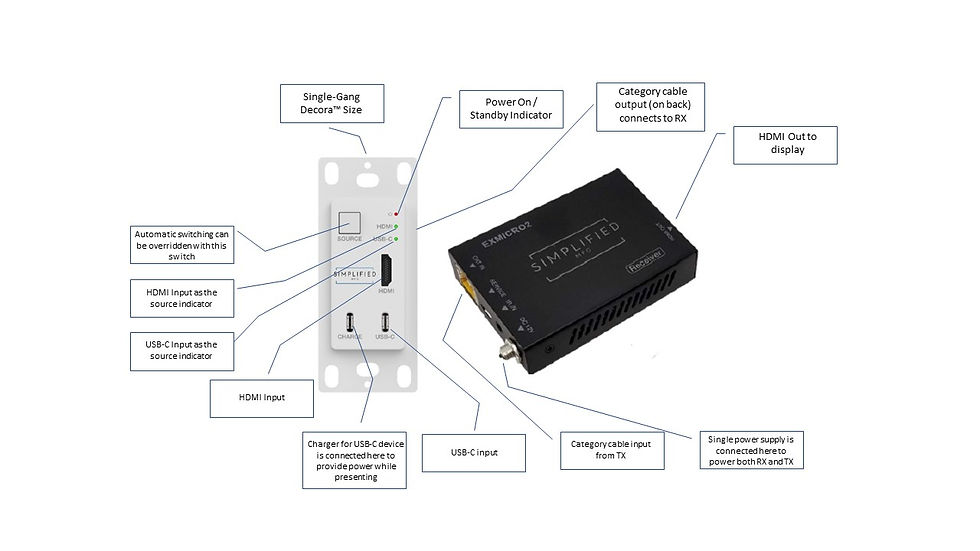

The TXIWKT is a kit consisting of a single gang Decora wall plate with a small footprint RX.  Technology used in the TXIWKT is about 3 times more efficient than the typical extender.  This means less heat, less energy used, and greater reliability.   The TXIWKT has an HDMI Type-A input as well as a USB-C input.  There is also a USB-C charging port.  You simply connect your laptop power supply to the USB-C charge port and the power is then passed through the AV connection while presenting, back to your laptop or tablet.  The sources are selected by a button on the front of the TX.  The RX powers the TX device.  HDMI 2.0b is supported at @60Hz for 35 meters and at 30Hz, up to 50m.  Perfect for K-12, higher ed, board room, podiums, and other applications where a HDMI port needs to be accessed.

Features & Benefits:
​​
  • Supports POE (Power Over Ethernet), the matched RX device powers the TX device
  • Transmission distance: over CAT6/6A cable
    • 50 meters:
      • 4K X 2K @30Hz36bit;
    • 35 meters:
      • 4K x 2K @ 60Hz.
  • Supports the entire HDMI 2.0b format at 60Hz/35m, up to 30Hz. at 50m
  • Compliant with the USB-C Video format
  • Single Gang Decora
  • RX is about the footprint of a credit card and about half an inch thick
  • Supports all HDMI audio formats
  • 3-Year Warranty
  • HDMI Compliance  HDMI 2.0b
    HDCP Compliance  HDCP 2.2 and HDCP 1.4
    Video Bandwidth  18Gbps
    Video Resolutions  4K x 2K 60/50/30/25/24 Hz., 1080p 60/50/30/25/24Hz.
    Color Space  RGB, YCbCr 4:4:4, YCbCr 4:2:2
    Color Depth  10-bit, 12-bit
    HDMI Audio Formats (Pass-through)  LPCM 2/5.1/7.1CH and all Dolby+ formats, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio
    ESD Protection: Human Body Model  ±8kV (air-gap discharge)
