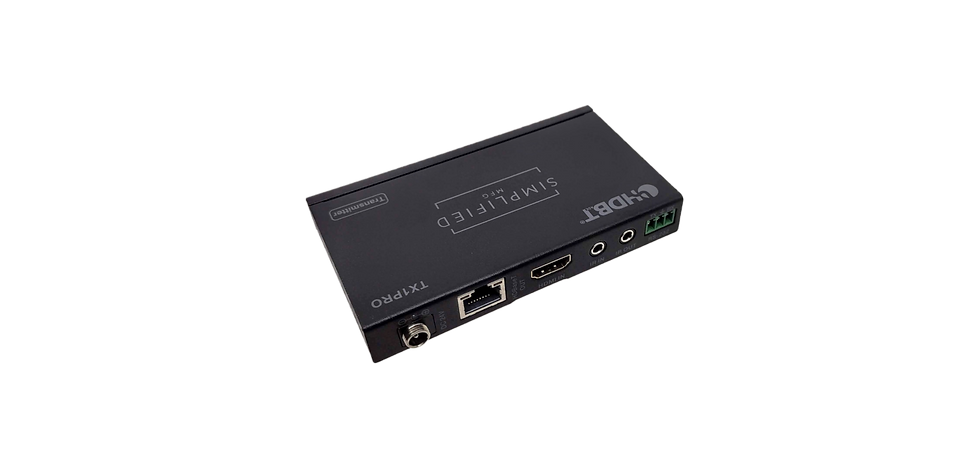

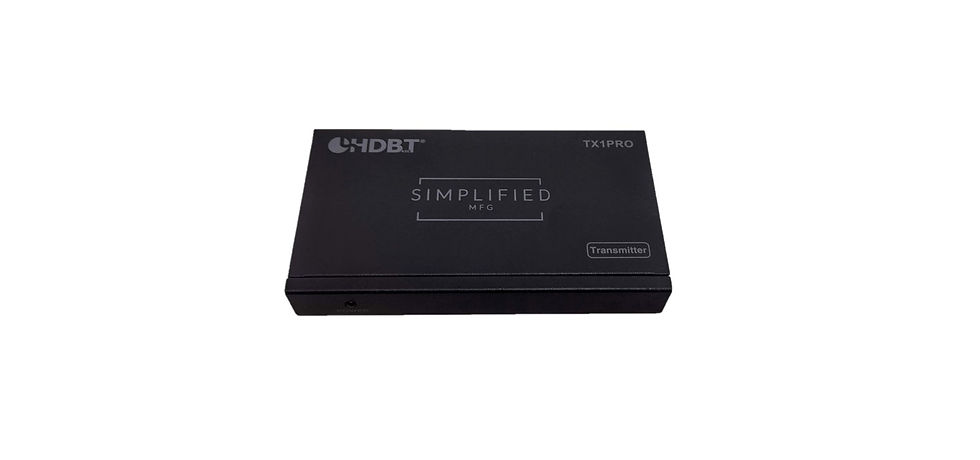

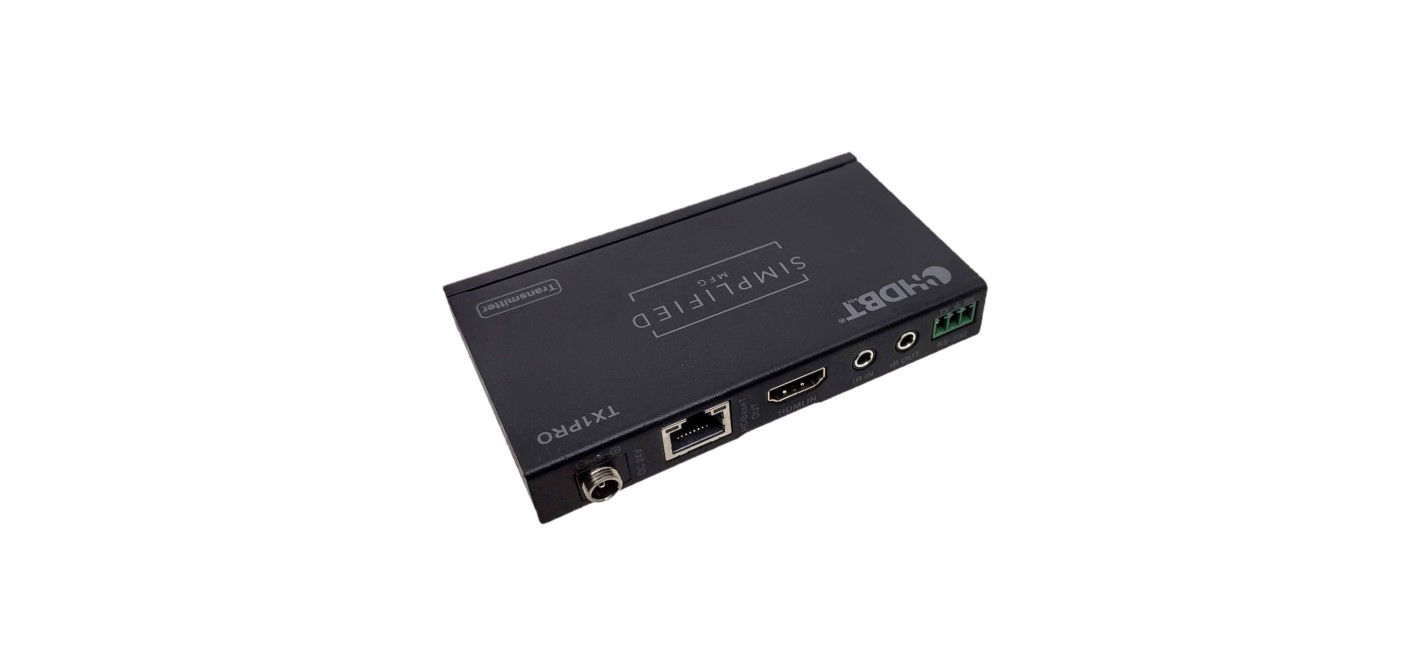

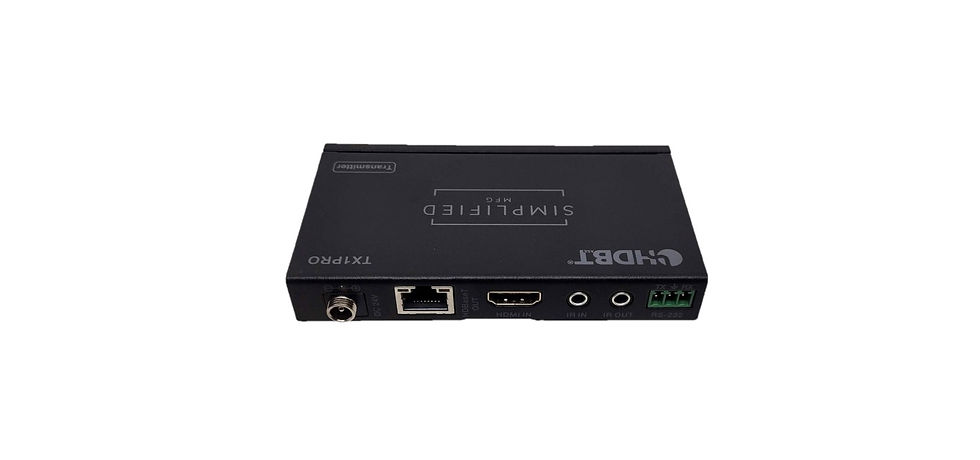

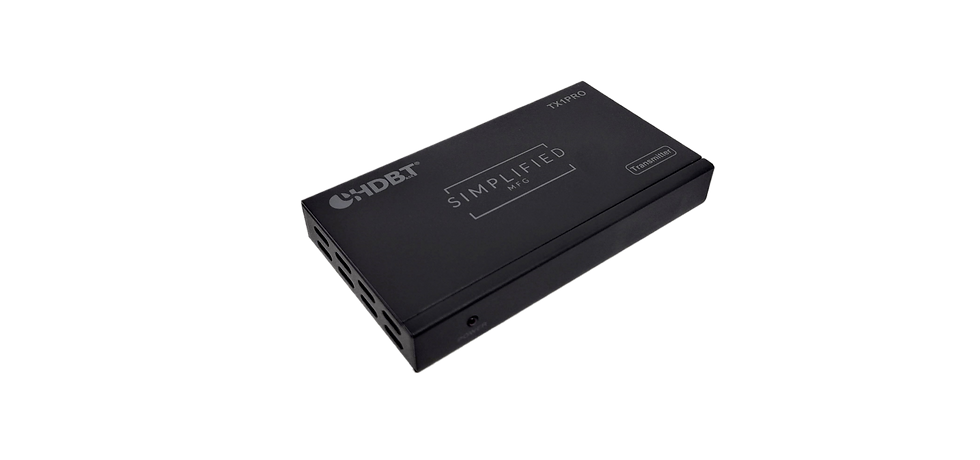

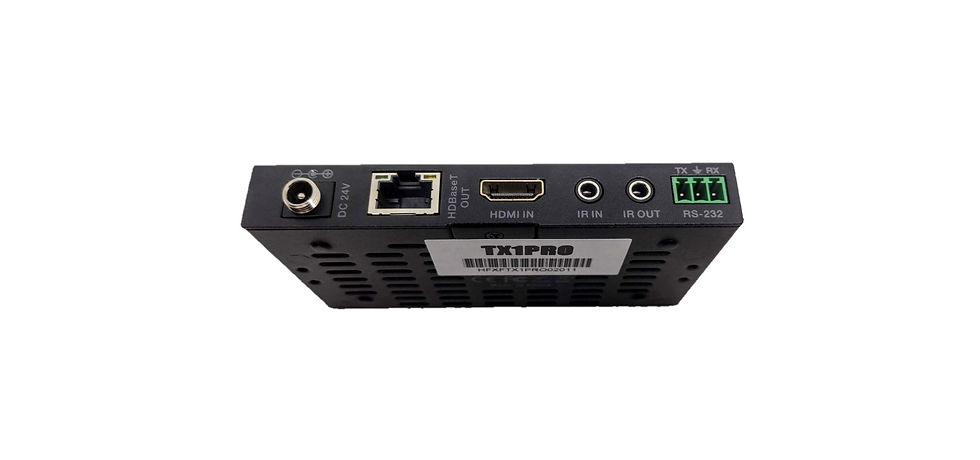

TX1PRO
HDBaseT Certified TX for
HDBaseT enabled displays
4K HDMI 40m/131ft. on Cat6, 18Gbps YUV4:4:4
The TX1PRO 18Gbps HDMI transmitter can extend your HDMI signal over 232ft/70meters to a compatible 1080p display, 131ft/40meters to a HDMI 2.0b 18gbps compatible display. The TX1PRO supports HDR8/10/10+ as well as the entire HDMI 2.0b standard. It also supports RS-232, together with the 18gbps HDMI 2.0b signal. Designed for use with displays with HDBaseT inputs.
Primary Use: The TX1PRO is designed to work specifically with displays that have an HDBaseT input, making the install far tidier that having a RX device to hide.
Features & Benefits:
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
HDR8/10/10+ pass through
Supports HDMI High Bit Rate(HBR) audio pass through
Supports CEC
Transfers Bidirectional RS232 control signal together with the HDMI signal
Transmission distance: Over CAT6 cable
70m/ 232ft.:
1080P @60Hz36bit; 3D1080P@30Hz36bit;
40m/394 ft.:
4K x 2K@30Hz@24bit.
4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
3-Year Warranty
HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps Video Resolutions up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit, 10-bit, 12-bit HDMI Audio Formats (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X POE Format 24V ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
