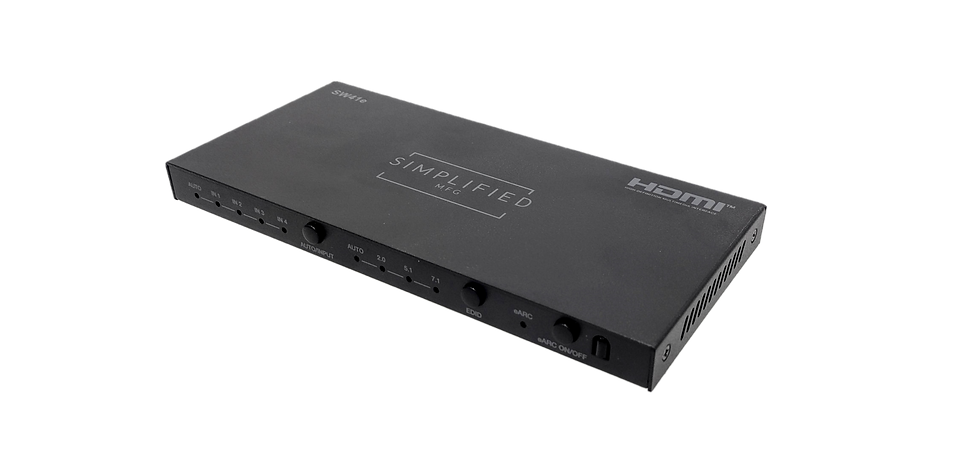

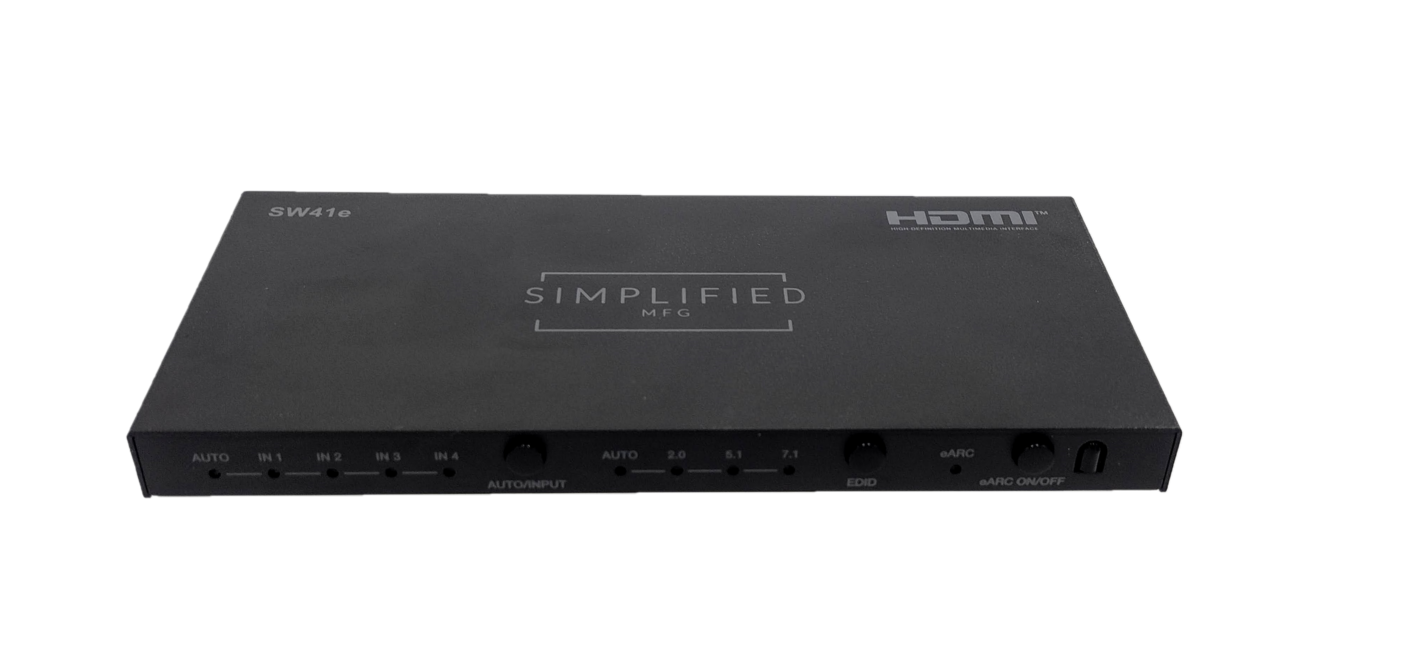

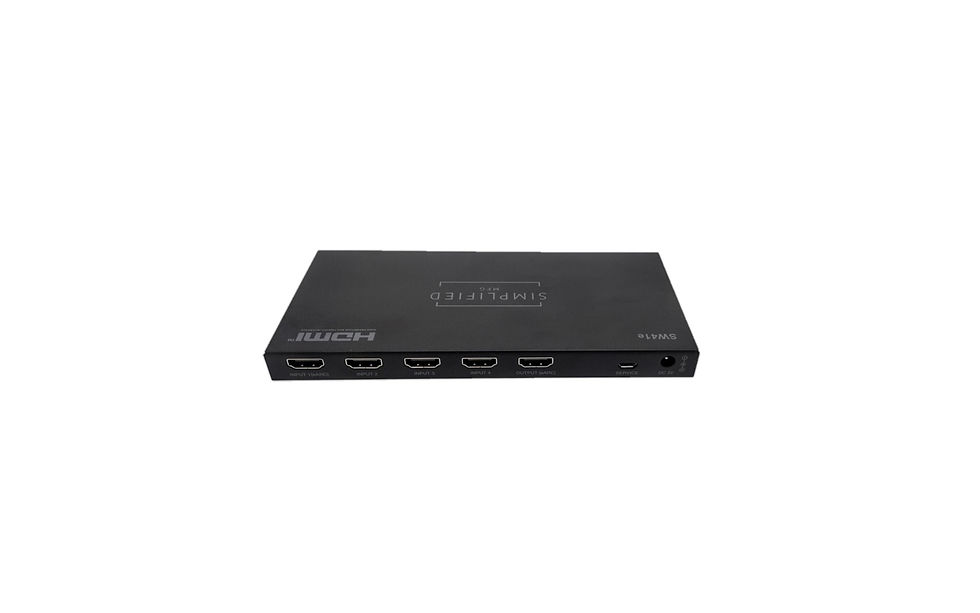

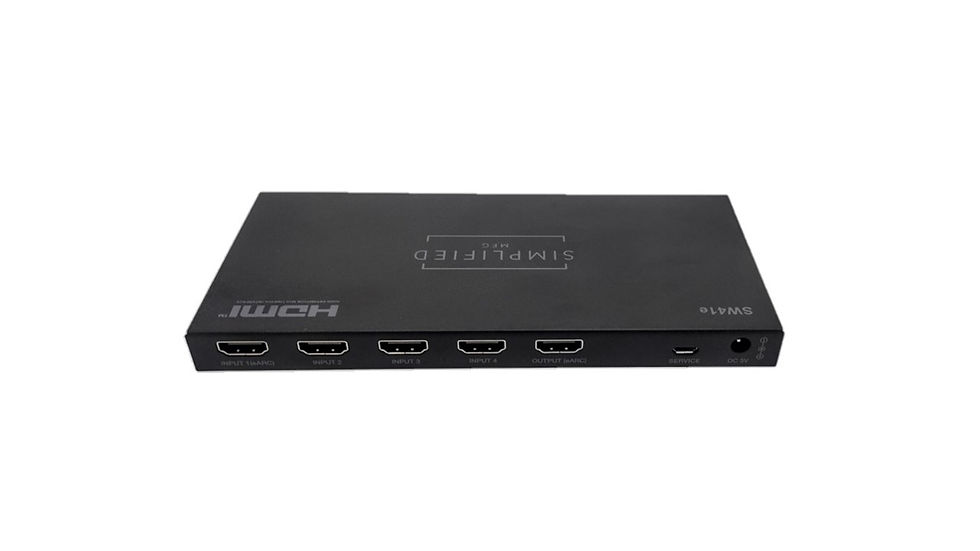

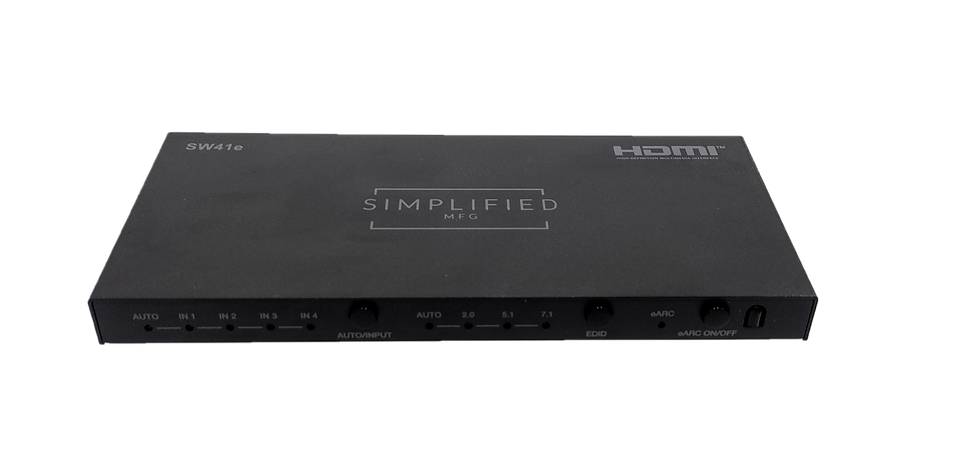

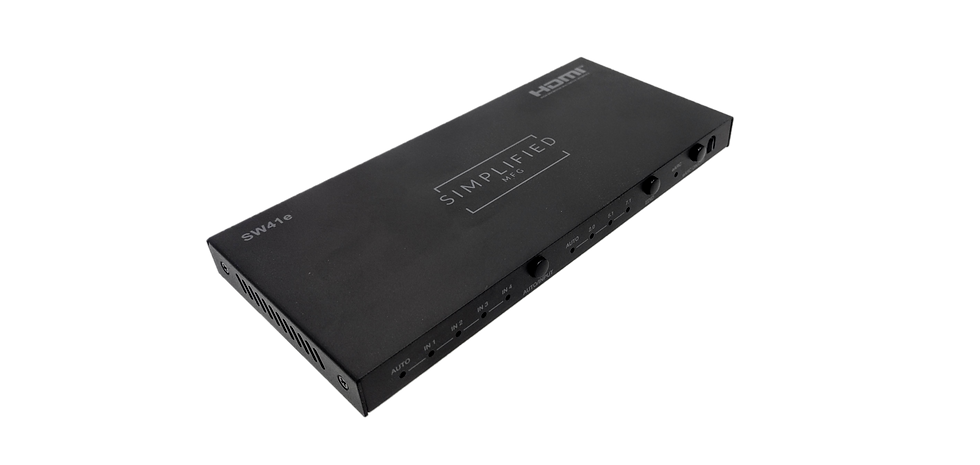

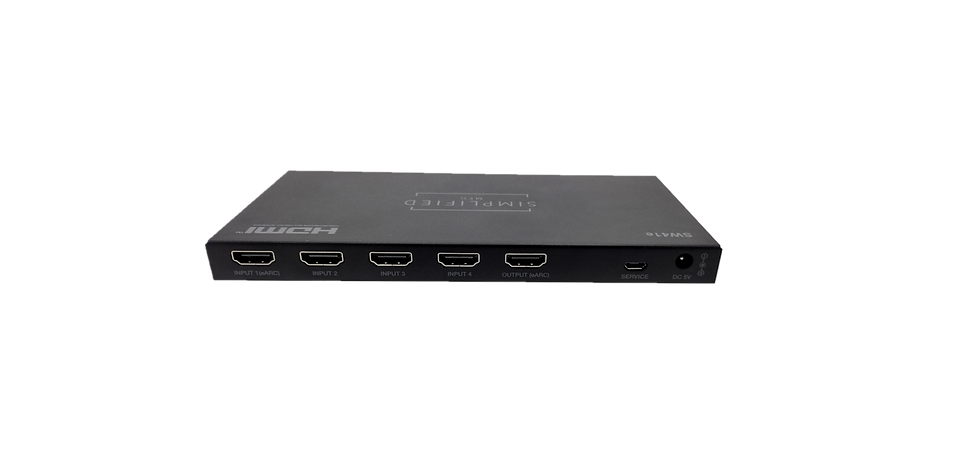

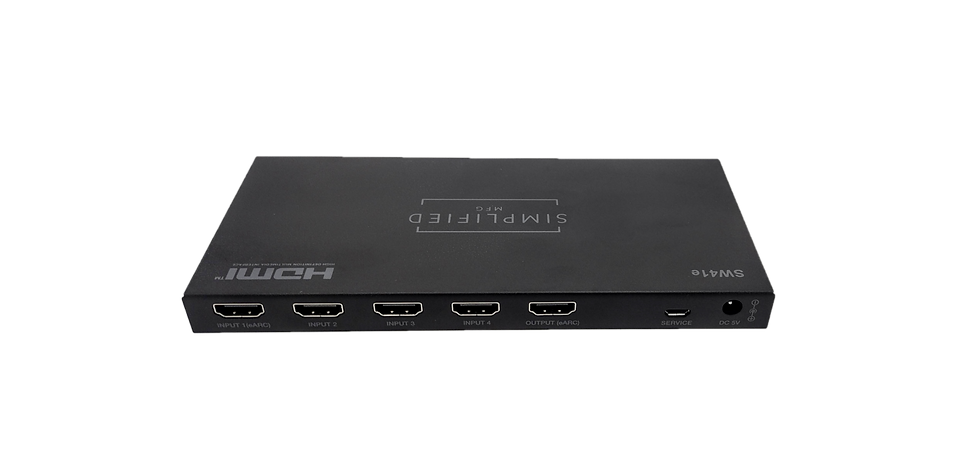

SW41e
4×1 4K@60 HDMI 20.b (18gbps) Switch with eARC
The SW41e a high-performance HDMI 4x1 switch that supports HDTV formats up to 4Kx2K@60Hz. In addition, it can rout eARC/ARC from display to Input1 for connection to soundbars, AVR's and other devices that support eARC/ARC. This eliminates one input making it a 3:1 switch in this configuration. The SW41e supports HDCP repeater/CEC/eARC functions. Select any of the inputs by front panel button, Auto-Switch, or with supplied IR Remote, Auto-switch mode switches the input to the last source that is powered on. The corresponding LED on the front panel will indicate the selection and status.
Features & Benefits:
Compliant with HDMI 2.0b (18gbps), DVI 1.0 standards
Supports HDR/HDR+/DolbyVisionTM
Supports eARC/ARC extraction and routing
Can be used in three modes: Traditional 4:1 switch/eARC or ARC extractor/3:1 switch with eARC or ARC
HDCP 2.2/1.xx compliant
Supports PCM, Dolby TrueHD, DTS-HD Master Audio, Dolby+, Dolby Atmos, and DTS-X
Audio extraction is through HDMI Input1
Smart EDID management (Auto/2CH/5.1CH/7.1CH selectable)
Supports input port auto switching or manual switching mode
Will extract audio from sources if display is not eARC/ARC compatible
3-Year Warranty
Frequency Bandwidth 18Gbps Input Ports 4 HDMI Female ports Output Ports 1 HDMI Female port DMI Audio Output PCM2.1/5.1/7.1CH, Dolby5.1,DTS5.1, Dolby-TrueHD, DTS-HD, Dolby+, Atmos, DTS-X ESD Protection: Human Body Model ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions 180mm/7.08" [W] x 85mm/3.35" [D] x 11.6mm/0.46" [H] Weight 300g/10.6oz. Power Consumption Max 2.5W Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
