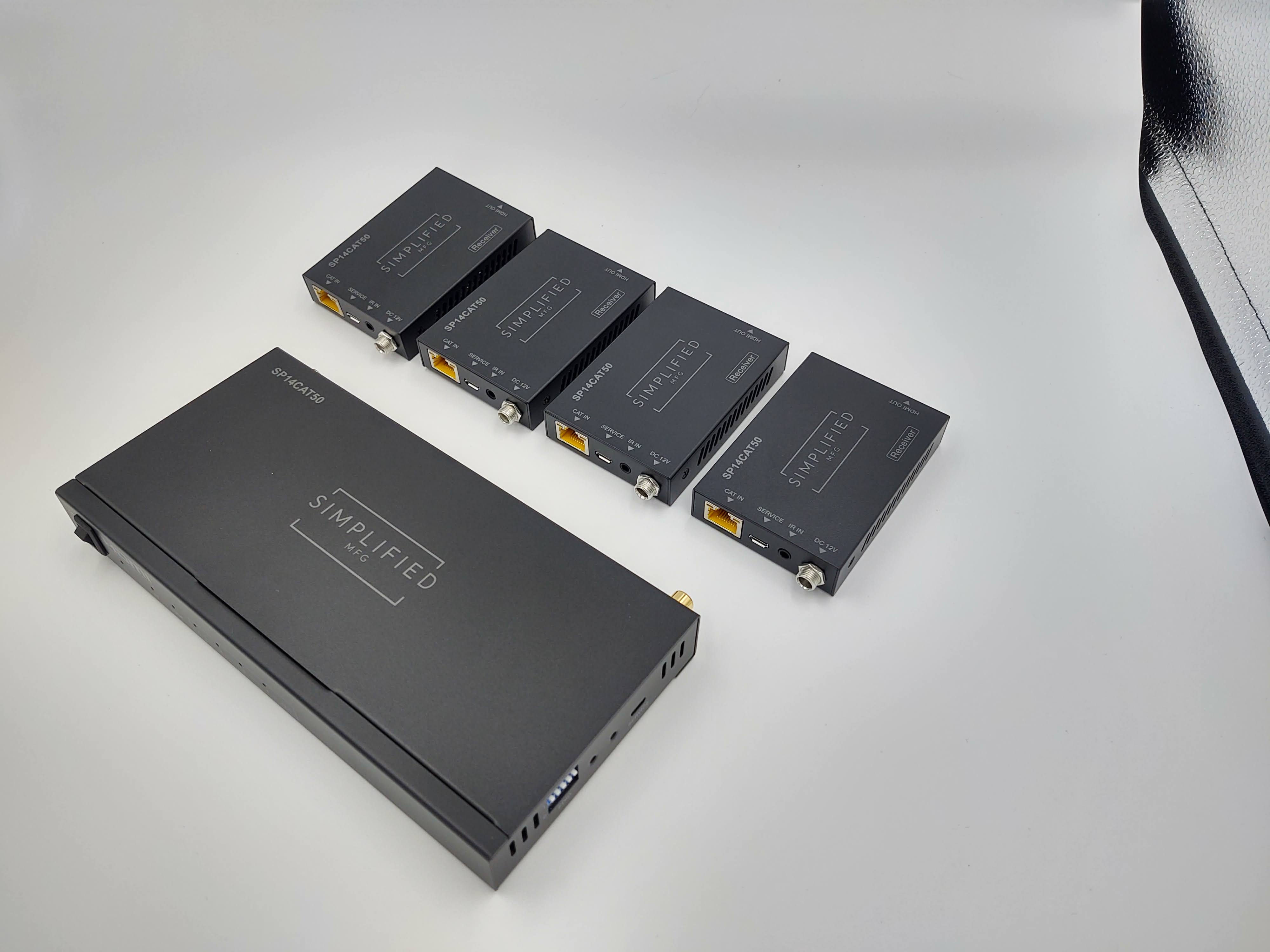

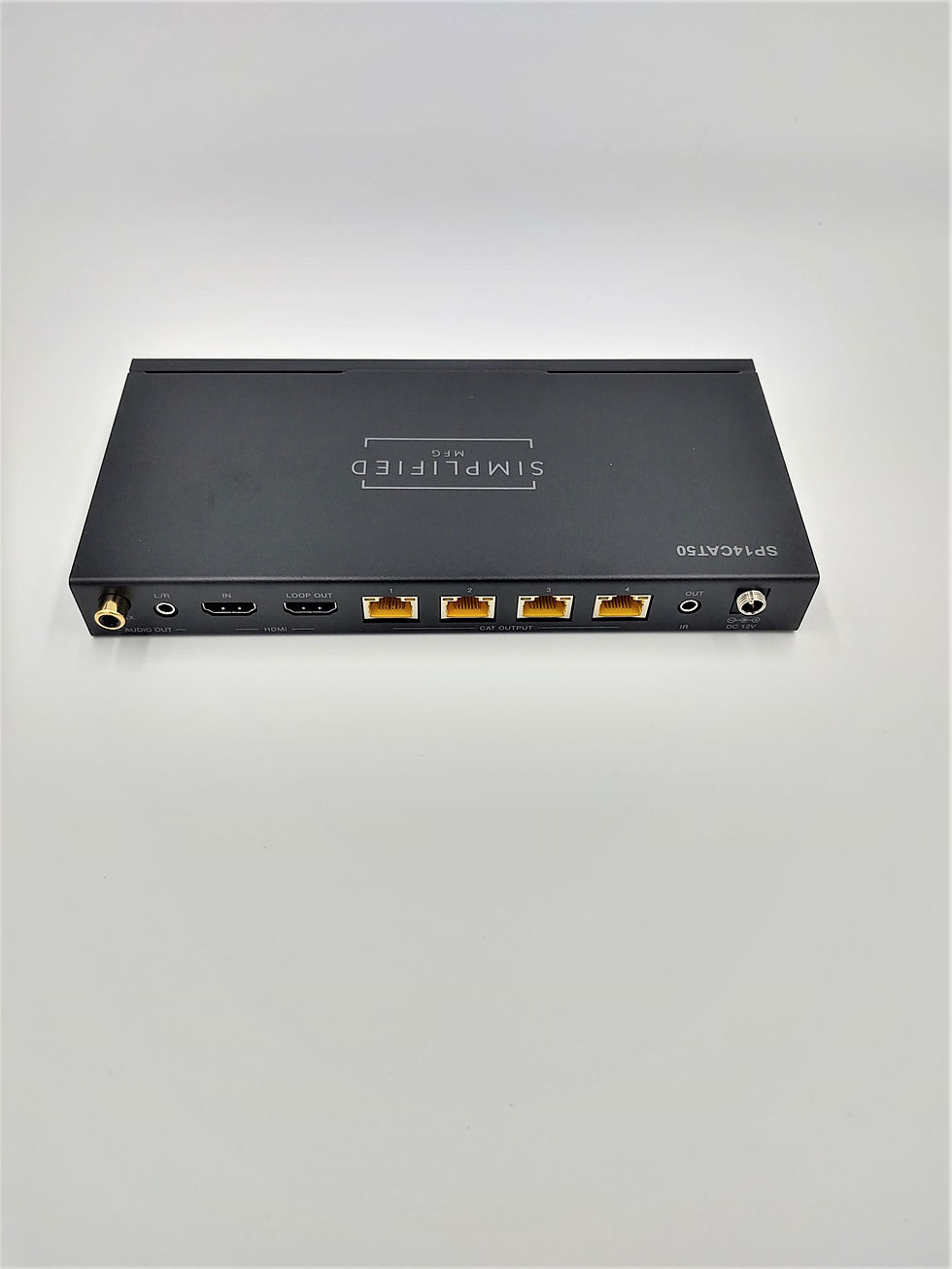

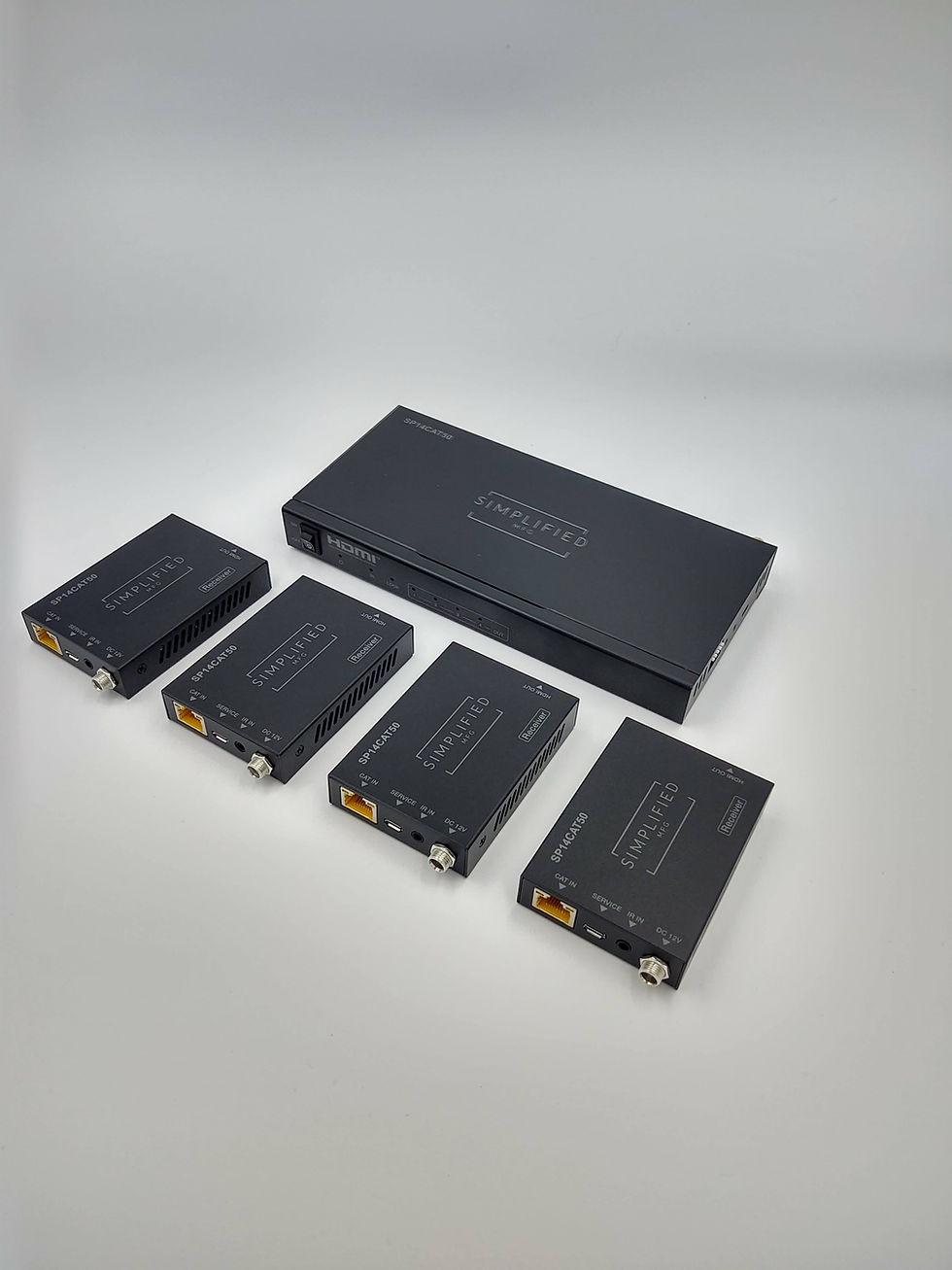

SP14CAT50
50m HDMI 2.0b (18gbps) 1x4 HDMI Splitter on category cable

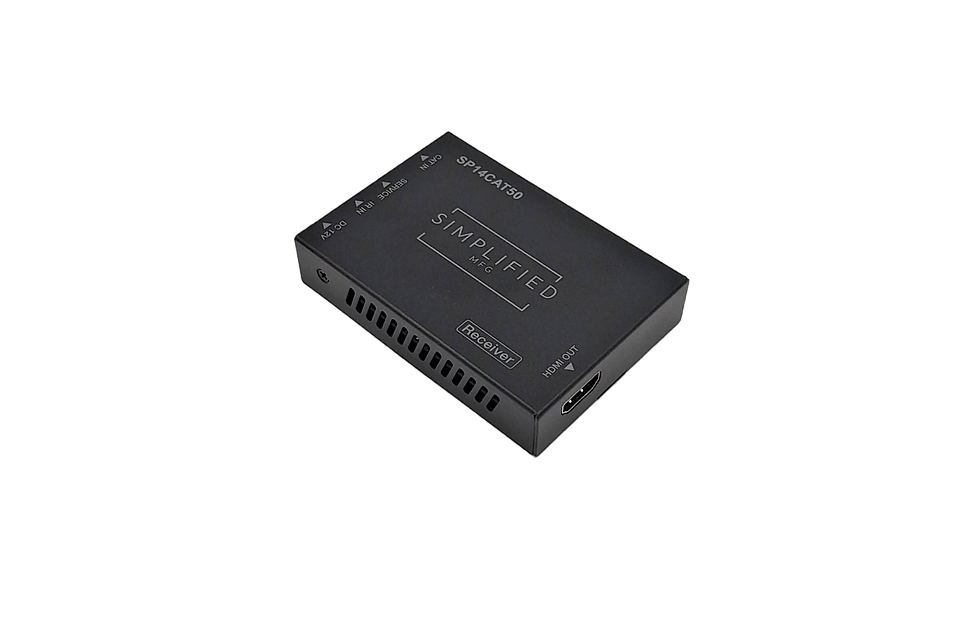

The SP14CAT50 is an18gbps 4K/UHD Splitter 1 to 4 HDMI splitter over category cable. The SP14CAT50 supports HDCP 2.2/1.4 and is a solution for splitting a single HDMI input to four HDMI outputs where you need to send the output over distance. The receivers are powered by the TX, compact (about the footprint of a credit card). EDID can be managed from the TX with the ability to copy or use EDID from the integrated EDID library. The SP14CAT50 is rated at 50m at 4K and 70m at 1080p while supporting the all latest features of the most advanced HDMI 2.0b signals including HDR8/10/10+ and Dolby Vision. IR from the RX devices are returned to the TX for source control. The technology used is also very efficient, this device only draws 14W. Also, there is a loop out to cascade more devices to make a larger splitter. Also see the SP18CAT120 for more outputs and a longer distance.
Features & Benefits:
Compliant with HDMI2.0, HDCP2.2 and DVI 1.0
Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4
Supports HDR8/10/10+ and Dolby Vision
EDID can be copied or can be circumvented by using EDID files from the EDID library in the TX device
Link and signal lights on the TX/RX for easy trouble shooting
Supports high resolution VESA mode video format up to QSXGA@60Hz
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Highly efficient/low power consumption (14W)
3-Year Warranty
Video Bandwidth 600MHz/18Gbps Input Ports 1 × HDMI (Female type) Output Ports 4 × HDBaseT [RJ-45] Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz ESD Protection: Human Body Model ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 12V/2.5A DC (US/EU standards, CE/FCC/UL certified) Dimensions TX: 210 mm/8.25" (W) × 100 mm/4" (D) × 25 mm/1" (H) RX: 81mm/3.2" x 68mm/2.67" x 18mm/ .7" Weight TX: 595g (1lb., 5oz.) RX: 155g (5.5oz.) Chassis Material Metal Operating Temperature 0 °C~40 °C/ 32 °F~104 °F Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F Relative Humidity 20~90 % RH (non-condensing) Power Consumption (Max) 14W
