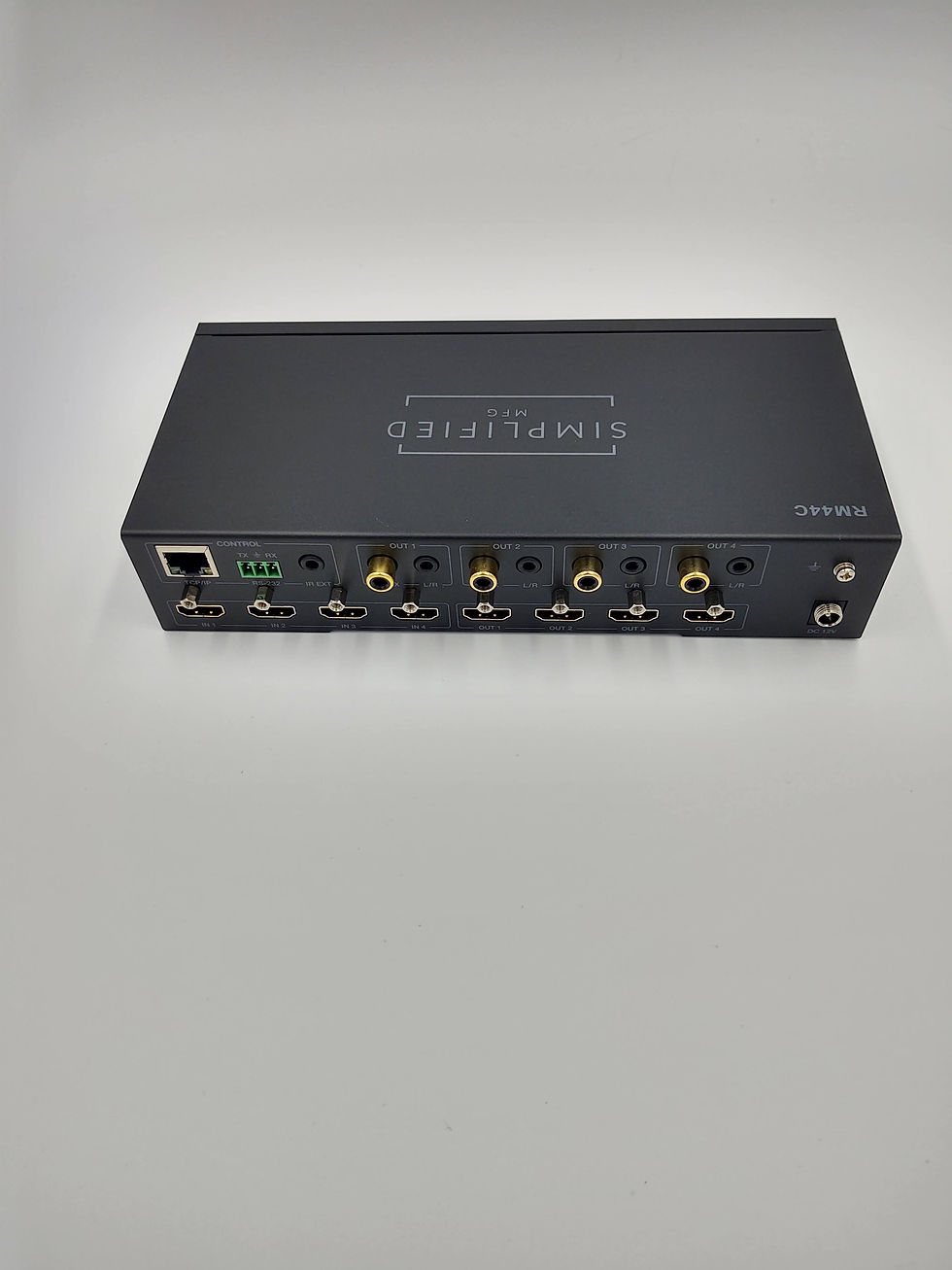

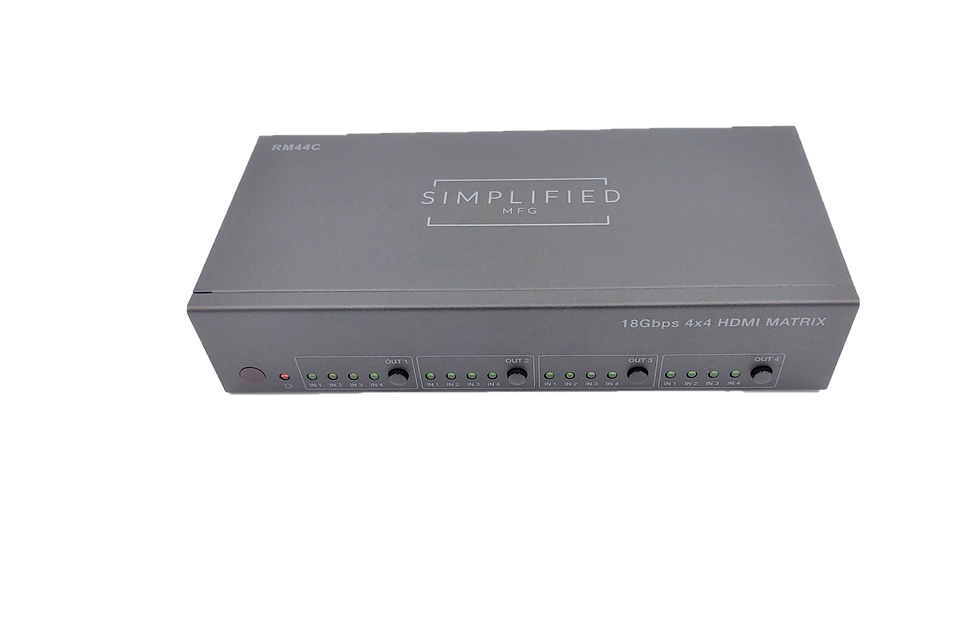

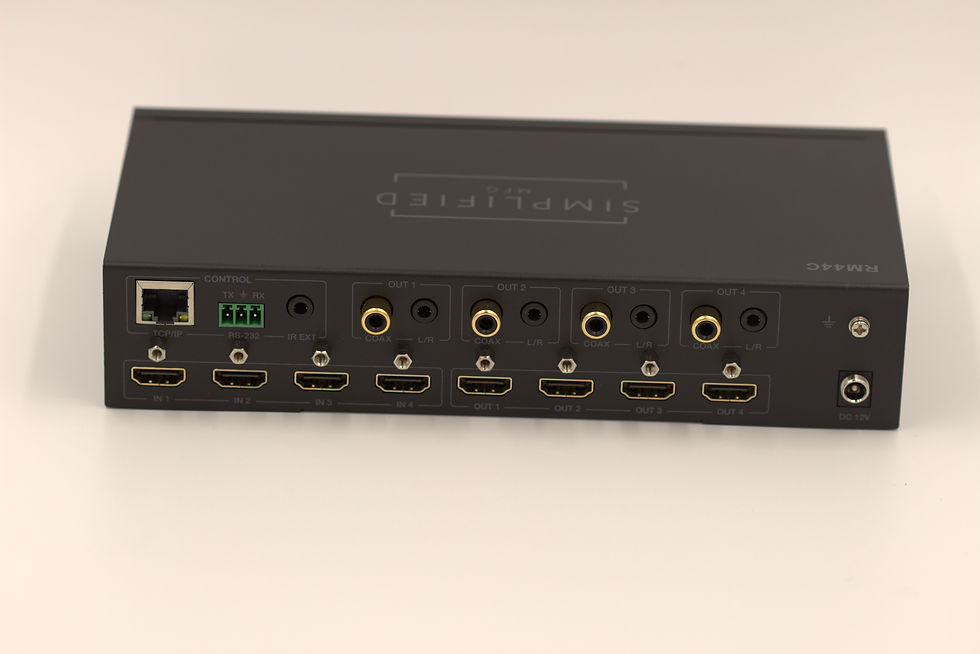

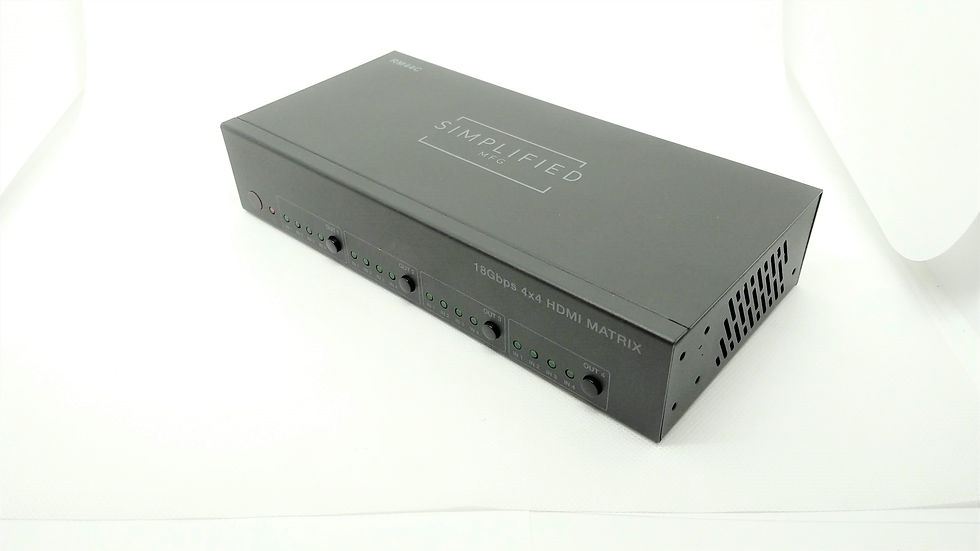

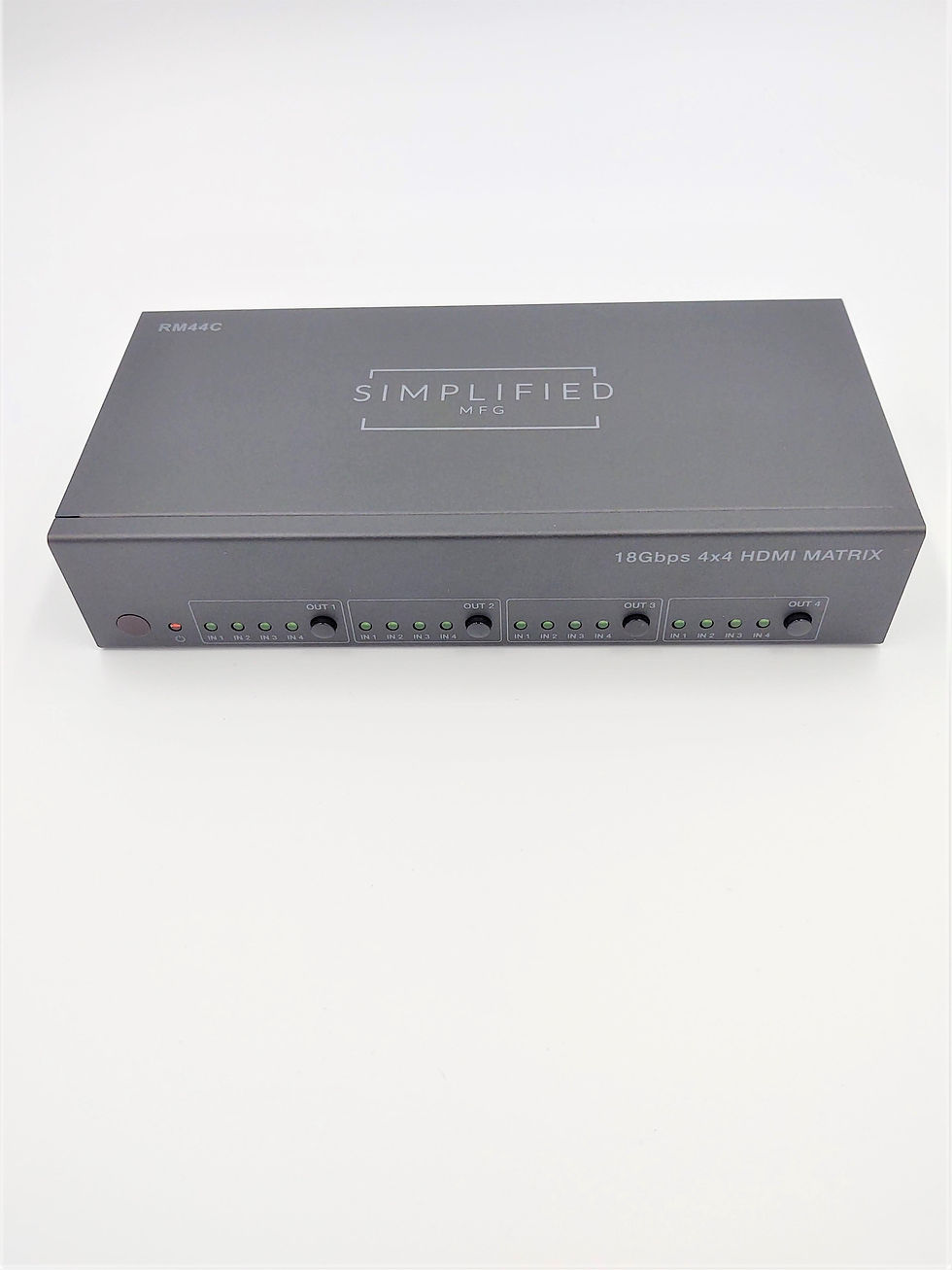

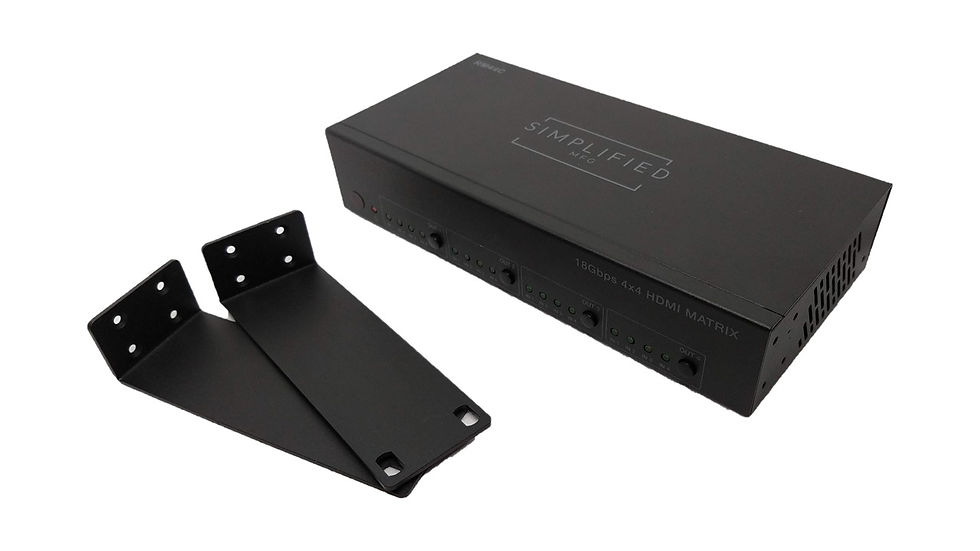

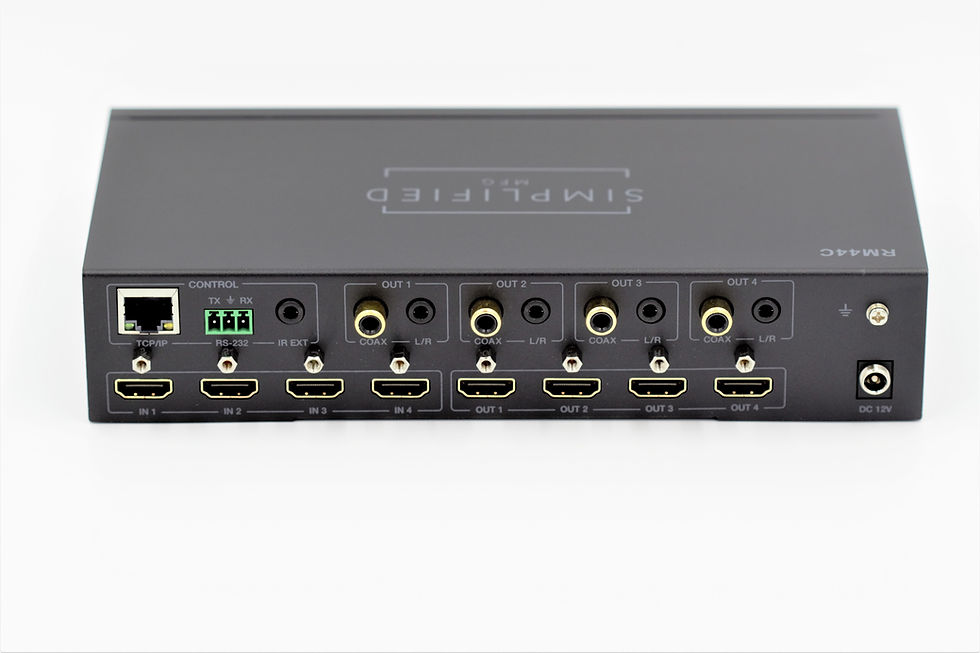

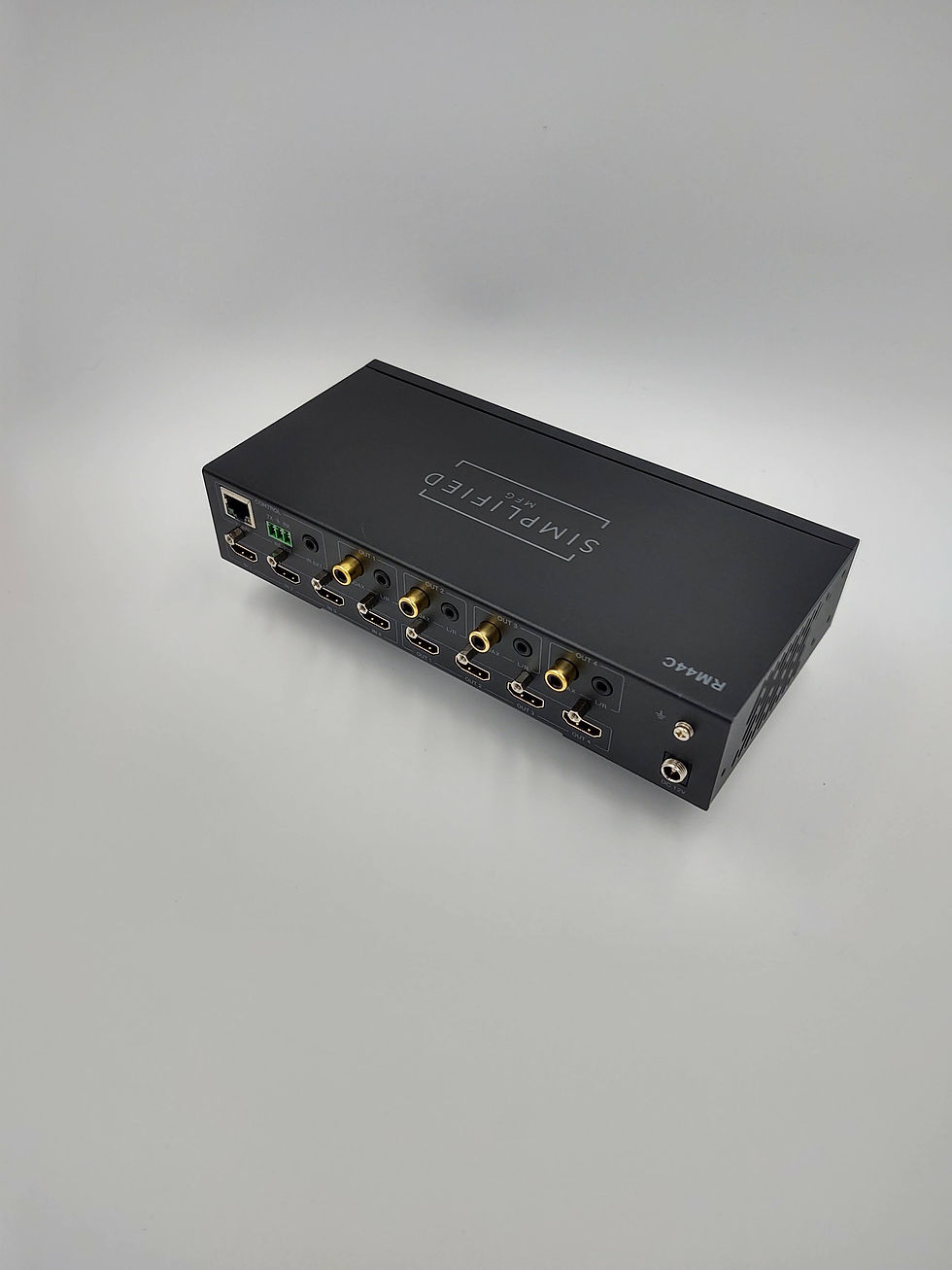

RM44C

4x4 HDMI 2.0b (18Gbps) Fast Switch/Scaling Matrix Switch
​
The RM44C HDMI Matrix switch is a fast switch 4x4 Matrix that features four HDMI inputs and four HDMI outputs  It provides true matrix routing for HDMI signals.  It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD (4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio.  The RM44C will also pass HDR High Dynamic Range information as well (8, 10, 10+, Dolby Vision).  Each output has scaling options for easier integration of unlike displays.  In addition, there is a CEC control feature allowing the matrix to turn on the displays.  Features are adjustable in the Web GUI with both Admin and User login settings

Features & Benefits:
​​
HDMI2.0b (18Gbps), HDCP2.2/HDCP1.4 compliant
Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0
Built in Web GUI with Admin and User options
Each output has scaling
Each Output has an audio breakout
Built in signal pattern generator
Built in CEC editor to allow control of connected devices
Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats
Supports HDR8/10/10+ and Dolby Vision
Supports high resolution VESA mode video formats up to QSXGA@60Hz
Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats
Sophisticated EDID management with scaling allows different resolution displays to integrate easily
Control of the via IR Remote Control or on-panel control
3 Year Warranty
