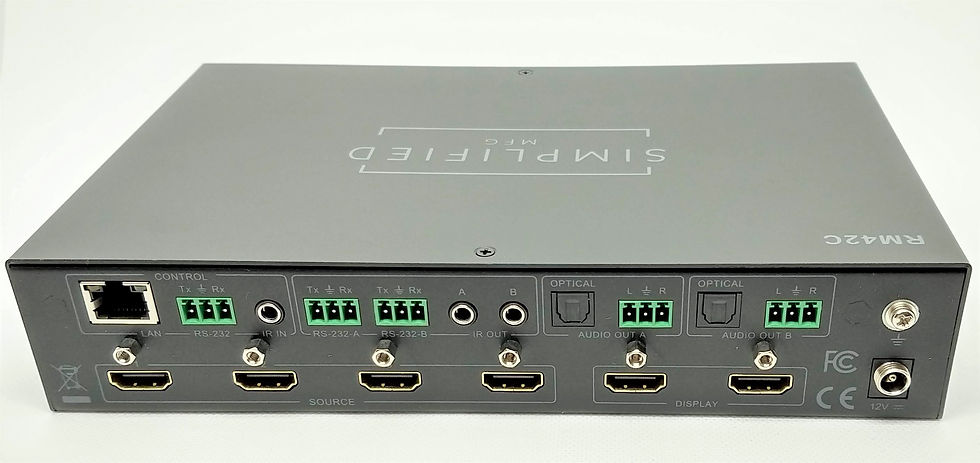

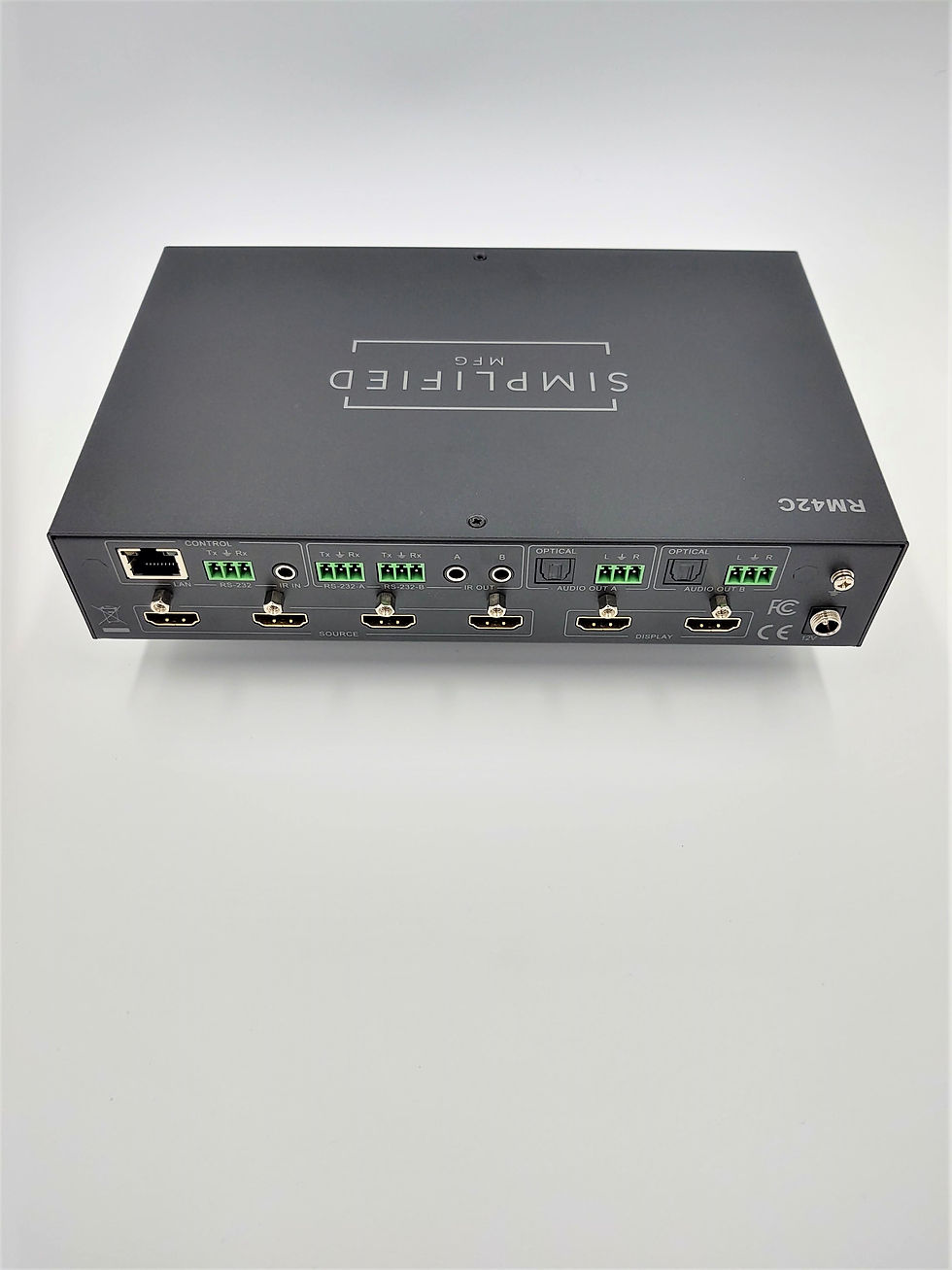

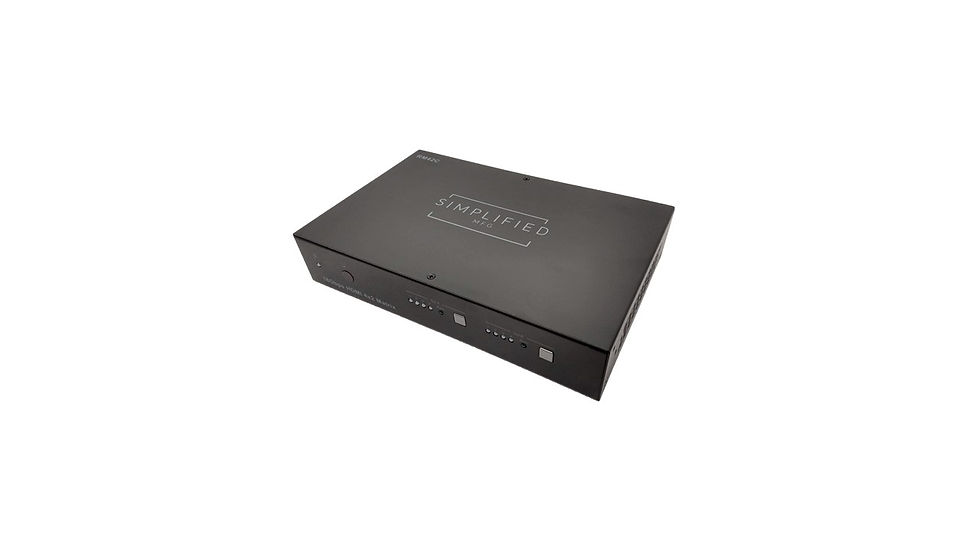

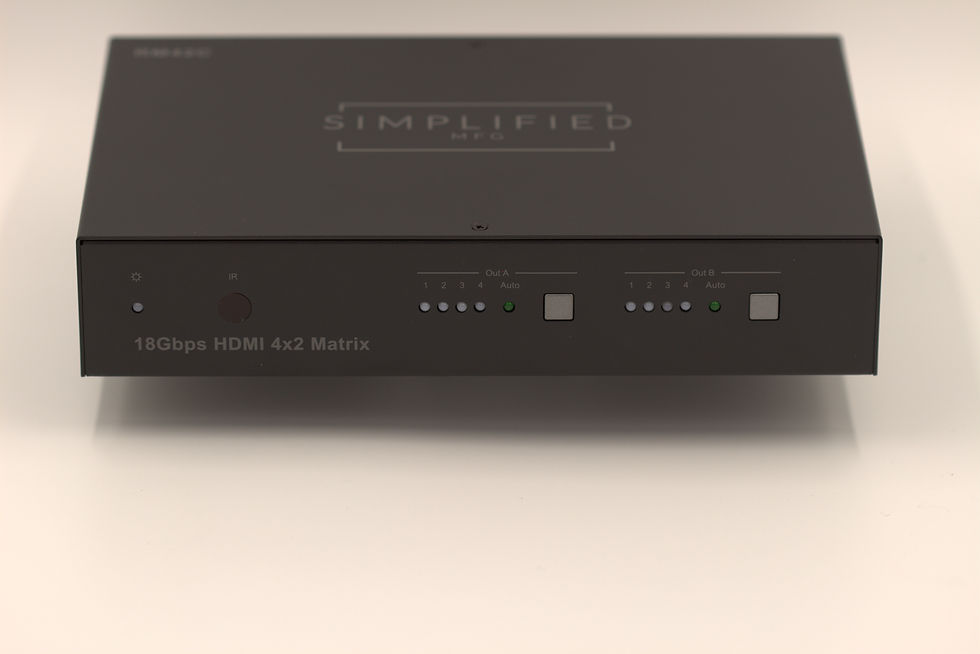

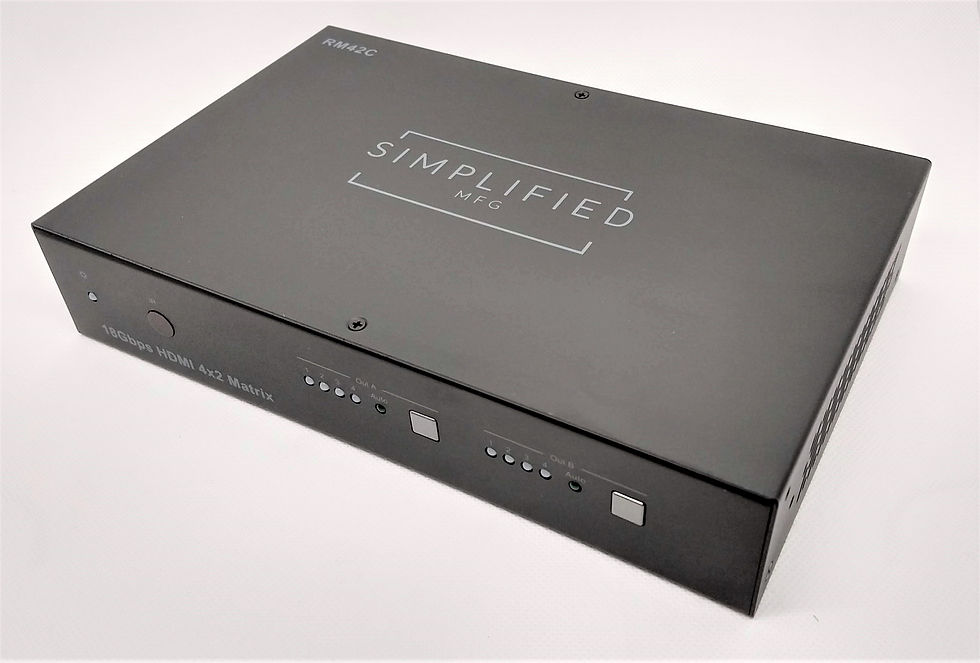

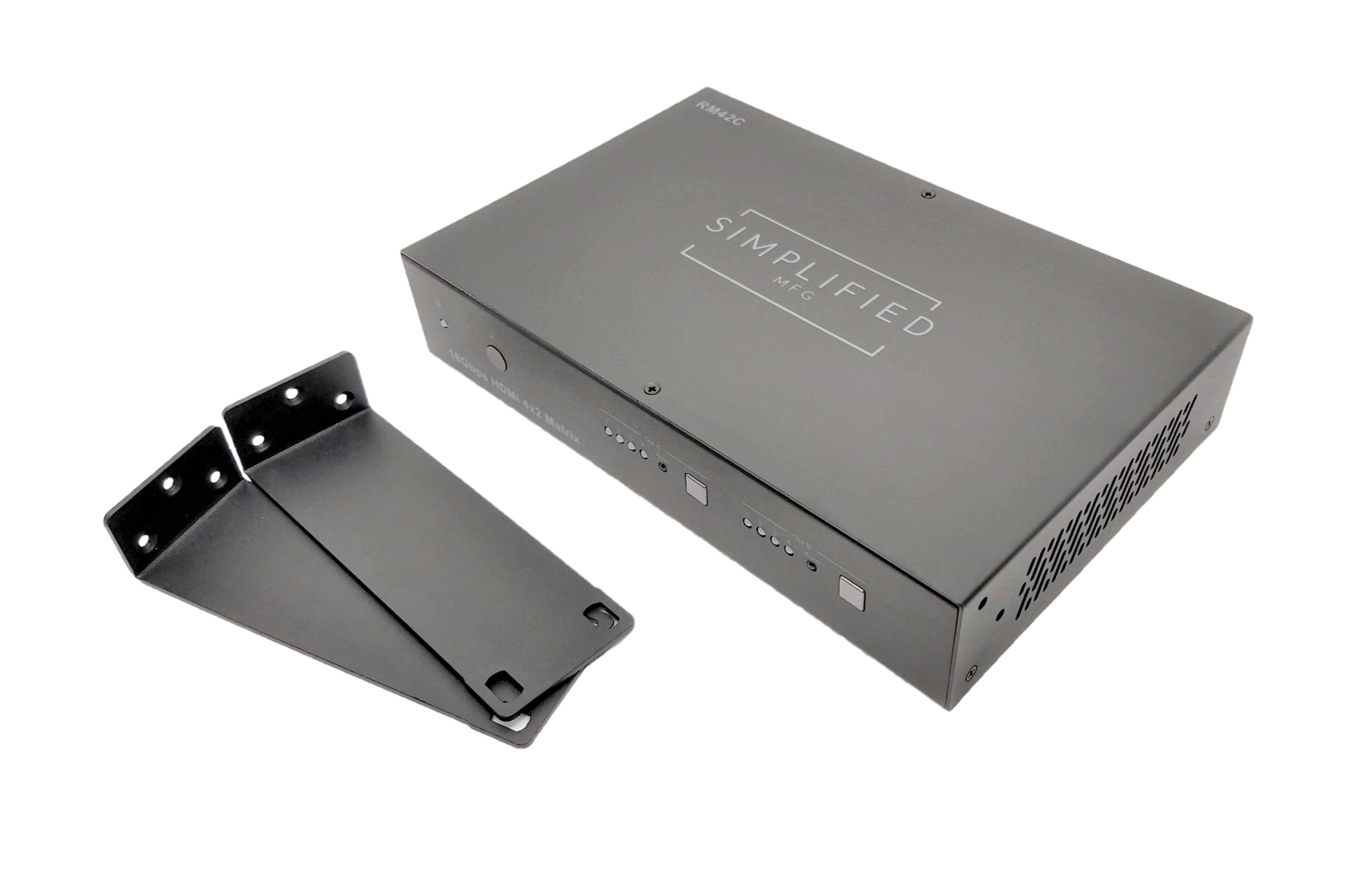

RM42C

4x2 HDMI 2.0b (18Gbps) Fast Switch/Scaling Matrix Switch
​
The RM42C HDMI Matrix switch is a fast switch 4x2 Matrix that features four HDMI inputs and two HDMI outputs  It provides true matrix routing for HDMI signals.  It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD (4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio.  The RM42C will also pass HDR High Dynamic Range information as well (8, 10, 10+, Dolby Vision).  Each output has scaling options for easier integration of unlike displays.  In addition, there is a sophisticated control feature allowing the matrix to turn on other devices in the system.  There is also a built in pattern generator.  This switch can be used as a four to one switch with our without a second display, as a presentation switch (auto power function is handy here), and used as an upgrade for the video switching in an existing AV system with a less capable AVR.

Features & Benefits:
​​
HDMI2.0, HDCP2.2/HDCP1.4 compliant
Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0
Built in Web GUI with Admin and User options
Each output has scaling
Each output has an audio breakout
Built in test patterns
Sophisticated control options with CEC, RS232, and IR
Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats
Supports HDR8/10/10+ and Dolby Vision
Supports high resolution VESA mode video formats up to QSXGA@60Hz
Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats
Smart EDID management
Control of the via IR Remote Control or on-panel control
3 Year Warranty
