REX2.1
The REX2.1 is a compact 4K (24/25/30Hz.)/1080p (60Hz.) HDMI Extender kit over single Cat cable (50m/70m) 4K and 1080p respectively
The REX2.1 is a HDMI/ HDCP 1.4 Extender over Single Cat5e/6 with IR extends high definition Audio/Video signals and IR, at a distance of up to 230ft/70m at 1080p and164ft/50m at 4K (24/25/30Hz., HDCP 1.4 Only) over a single Cat5e/6 cable. The REX2 is small, and robust. The 10.2Gbps capability makes it a very reliable and powerful 1080p extender with the added benefit of supporting some 4K signals. In addition, the extender is also equipped with IR pass-through which allows for source control.

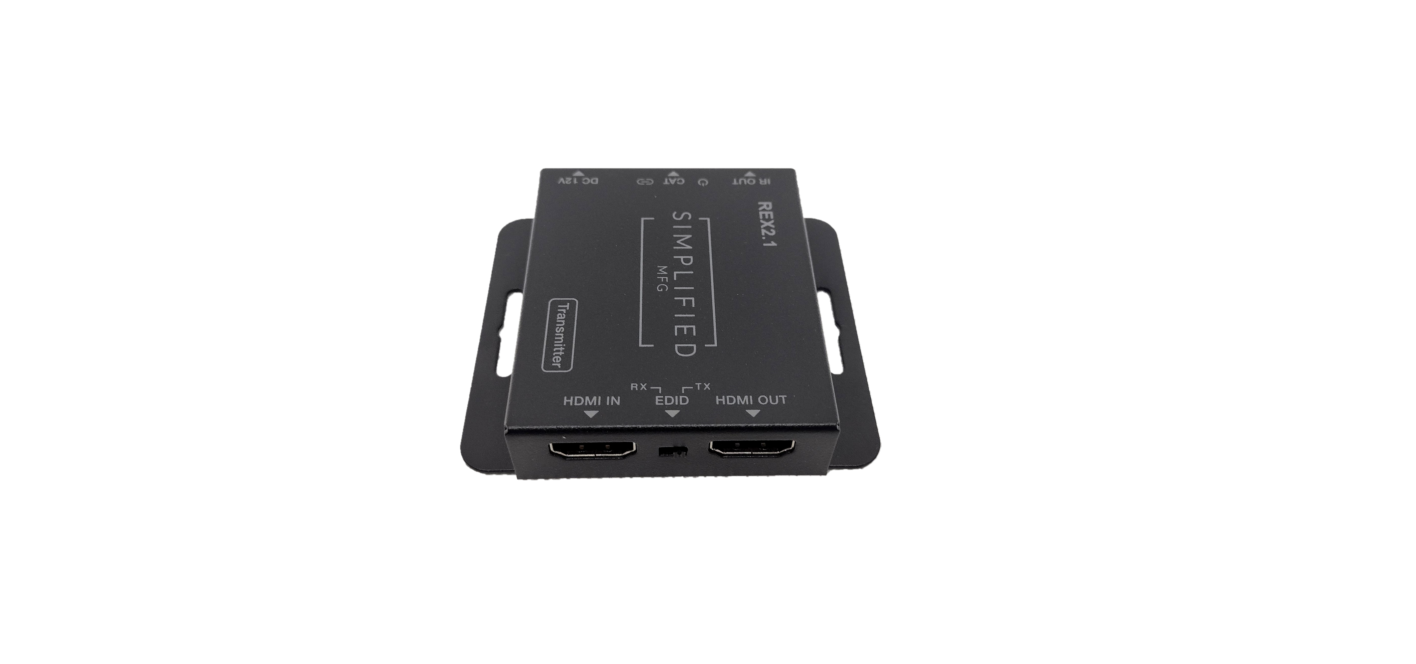

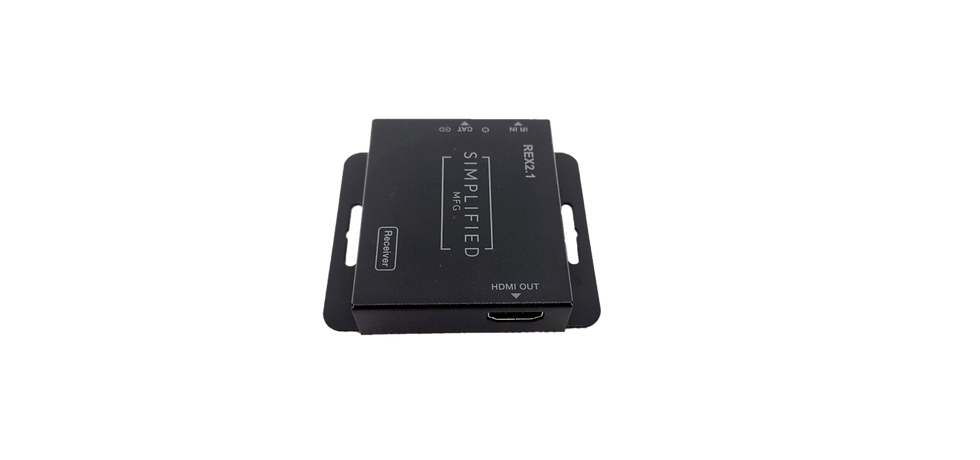

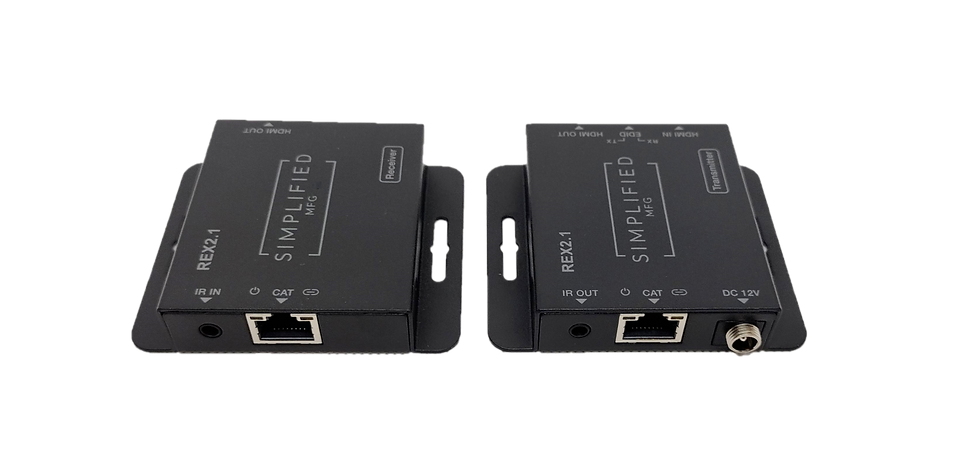

The REX2.1 extender includes two units: a transmitting unit and a receiving unit. The transmitting unit is used to capture the HDMI input with IR carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for decoding the transmitted HDMI signal. The extender cost effective HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for Set top boxes at 1080p (70m) and some 4K sources (50m) with HDCP1.4 such as live performance and/or security cameras
Features & Benefits:
Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
Supports copy EDID from receiver display or loop out display.
Allows for cascading via additional HDMI loop out port.
Supports 4K at 24/25/30Hz. (HDCP 1.4 Only)
Single power supply (TX)
Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable.
Compact design for an easy and flexible installation.
3-Year Warranty
Video Bandwidth 10.2Gbps Video Support 480i/480p/720p/1080i/1080p @60/4K 24/25/30Hz. Audio Support Surround Sound (up to 7.1 ch) or stereo digital audio Transmission Range 4K 30Hz. – up to 50m [164ft] 1080p up to 70m (230ft.) Input TMDS Signal 3.3 volts Input DDC Signal 5.0 volts/P-P ESD Protection: Human Body Model +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge) HDMI Connector Type A 19 pin female RJ-45 Connector WE/SS 8P8C 3.5mm Connector (TX and RX) IR Receiver/IR Blaster Housing Metal enclosure Dimensions 60mm/2.375" [W] x 60mm/2.375" [D] x 17mm/0.67" [H] Weight 90g/3.175 oz. Power Supply (1) 5V1A DC Power Consumption 1.5 watts (TX); 1.0 watts (RX) Operation Temperature 32~104 °F Storage Temperature -4 ~140 °F Relative Humidity 20~90 % RH (no condensation)
