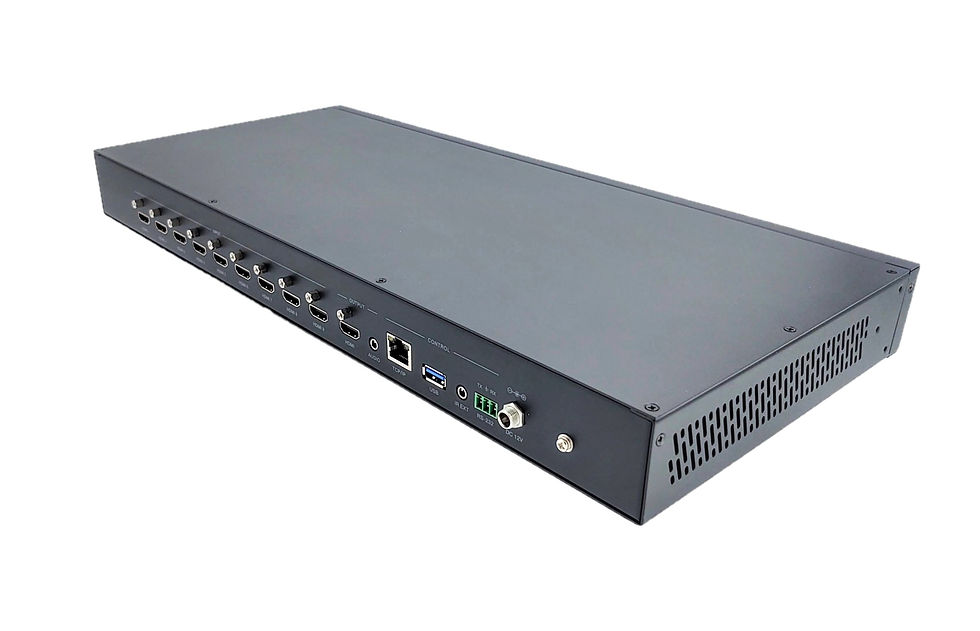

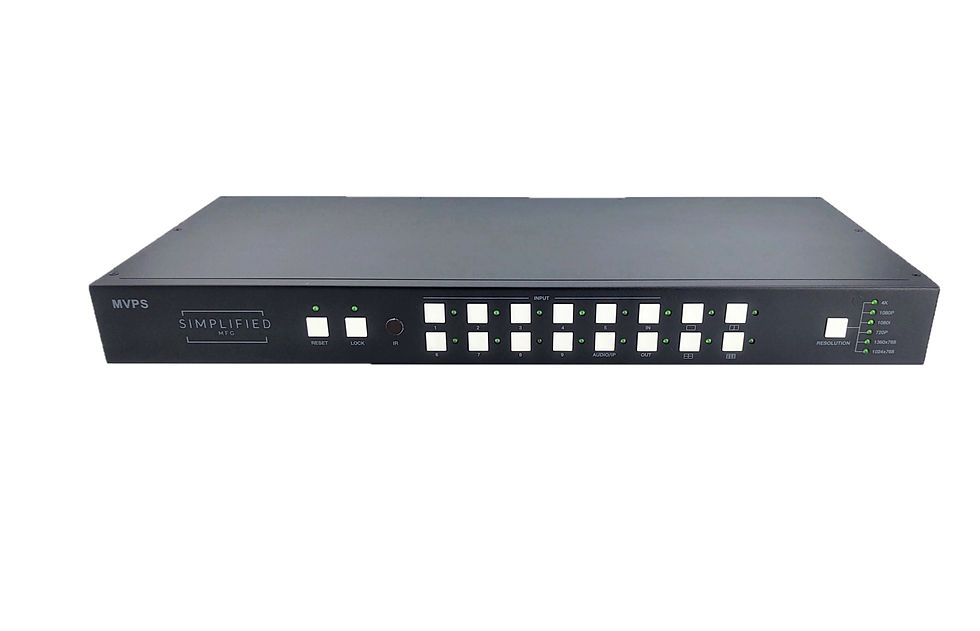

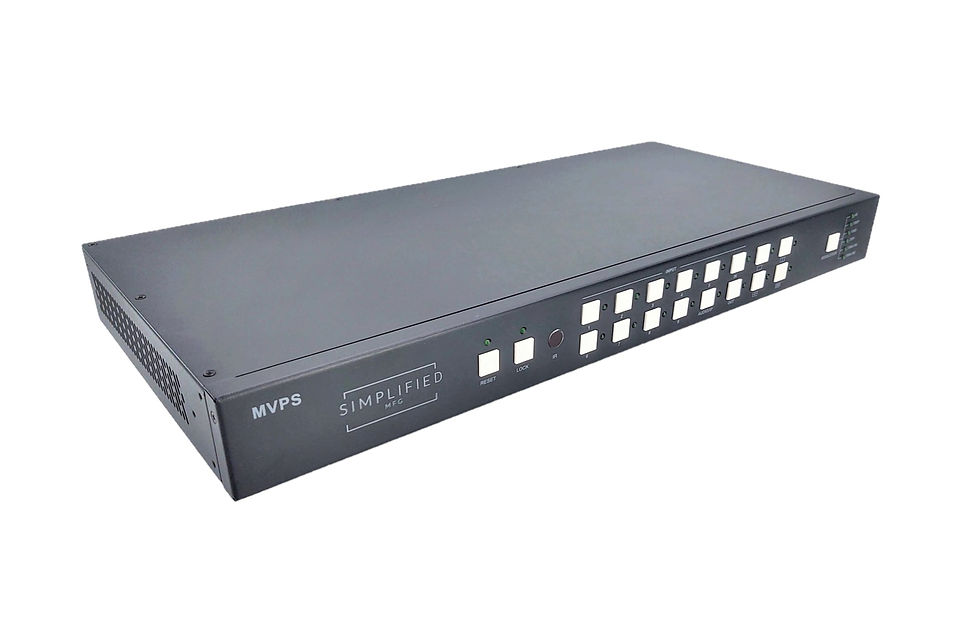

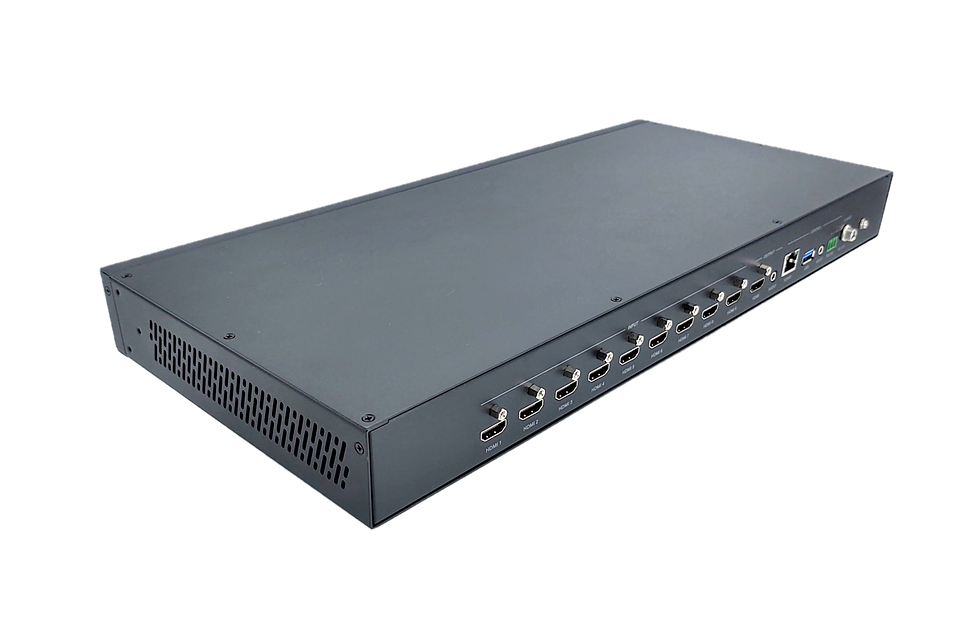

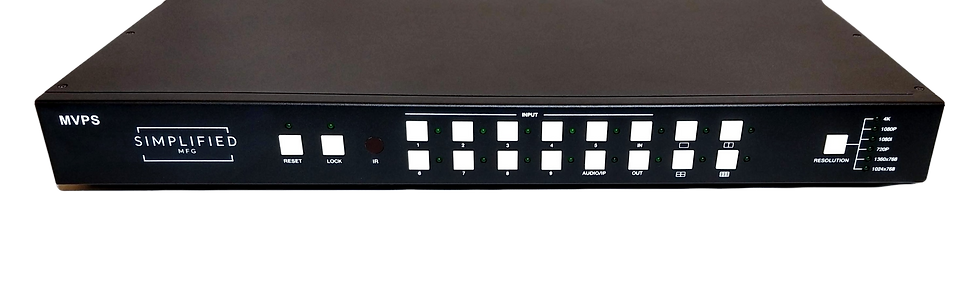

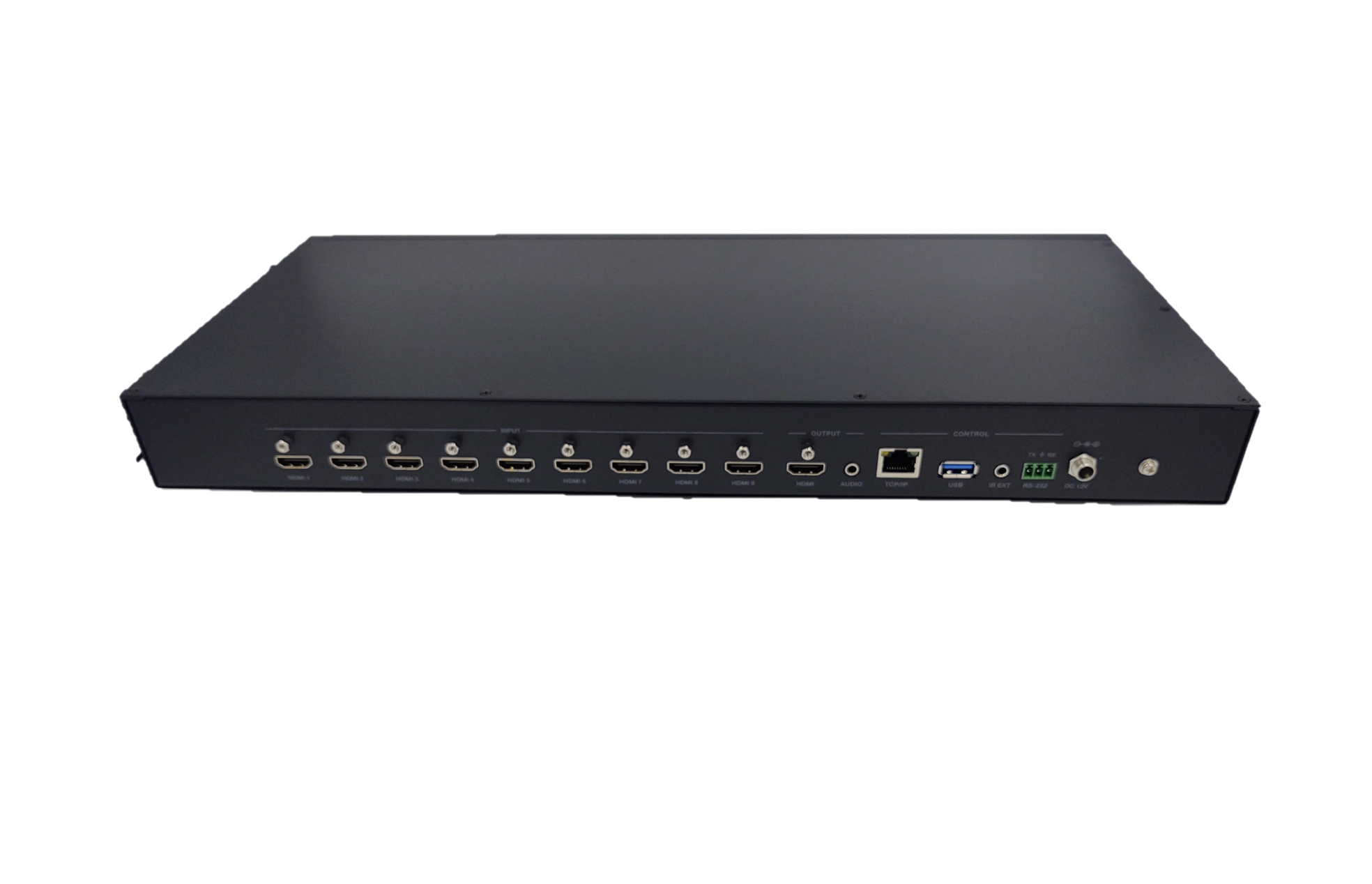

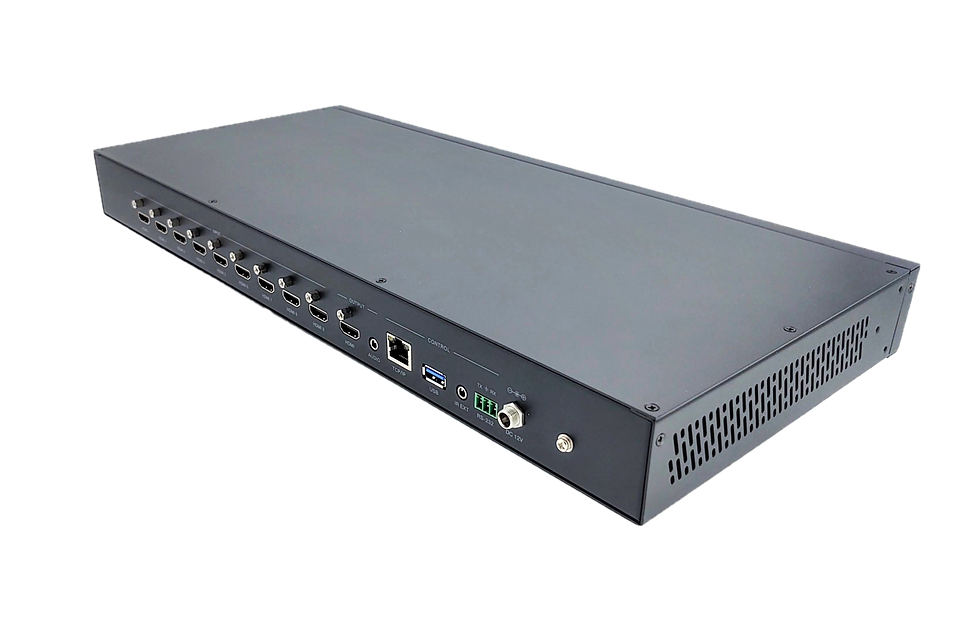

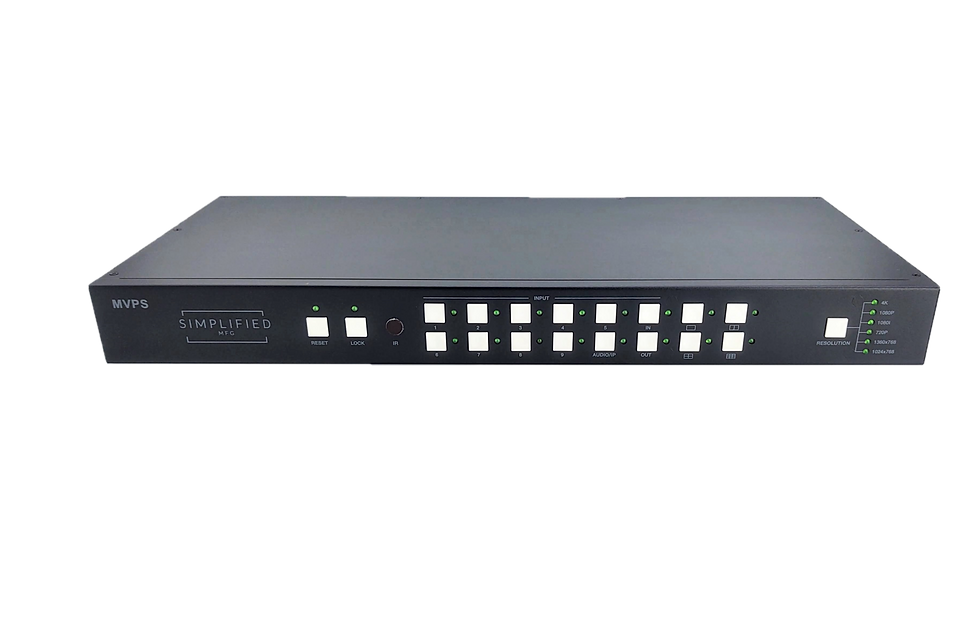

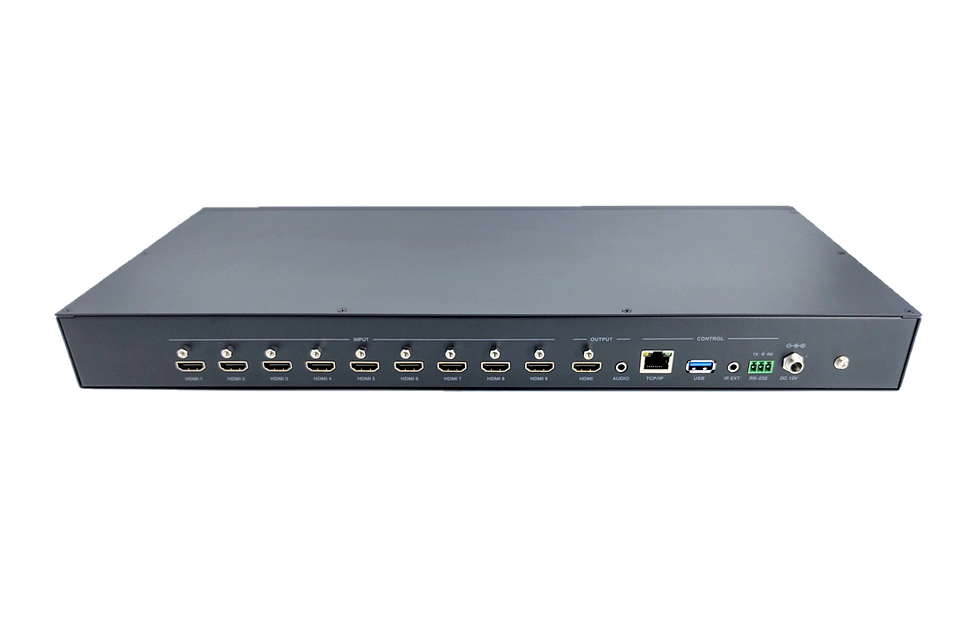

MVPS
9x1 Instant-switching HDMI Switch with Multi-View
The MVPS HDMI Switch features nine HDMI inputs and one HDMI output with a 3.5mm mini-jack audio breakout. Output resolution can be set to many different resolutions up to 4K @ 30Hz. Applications include presentation switches where multiple sources need to be shown on a single display and control room/command center type of uses. The instant switching makes this a perfect device for live performances such as public speaking and houses of worship applications. There is no "wait time" when switching from source to source. The output can also be configured to show 2 sources (side by side and PIP), 4 sources (quad and 3 collaboration modes), and 9 sources.
Uses include: Sports venues, live performance, conference/huddle rooms and command and control.
Features & Benefits:
HDMI 1.4b and HDCP 1.4 Compliant
Supports multiplexed HDMI 9-input and 1-output
Several output resolutions;(1024x768/1360x768/720p/1080i/1080p/4K)
Single, Side by side, PIP, Quad, 3 versions of Collaboration format, and a 9-view options
Seamless switching
Up and Down Scaling
Multiple Output Resolutions up to 4K @ 30Hz
Web GUI Interface
Manual, IR, RS232, and IP Control Options
3-Year Warranty
HDMI Compliance 1.4b HDCP Compliance 1.4 Video Bandwidth 10.2Gbps Video Resolutions 1024x768, 1360x768, 720p, 1080i, 1080p, and 4K @ 30Hz. Color Depth 8-Bit Color Space RGB, YUV4:4:4, & YUV4:2:2 HDMI Audio Formats LPCM 2.0 Stereo ESD Protection ±8 kV (air-gap discharge) ±4 kV (contact discharge)
