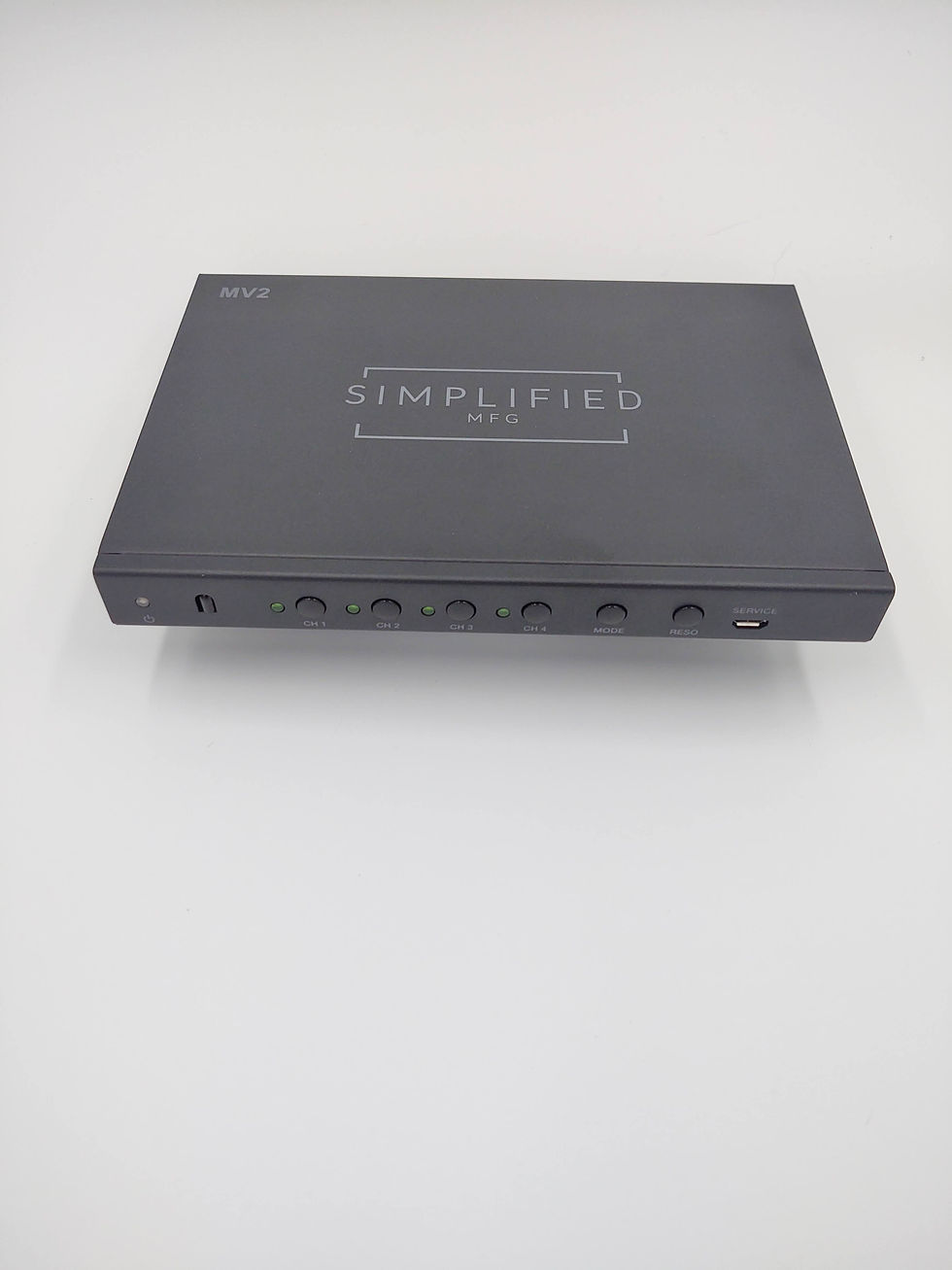

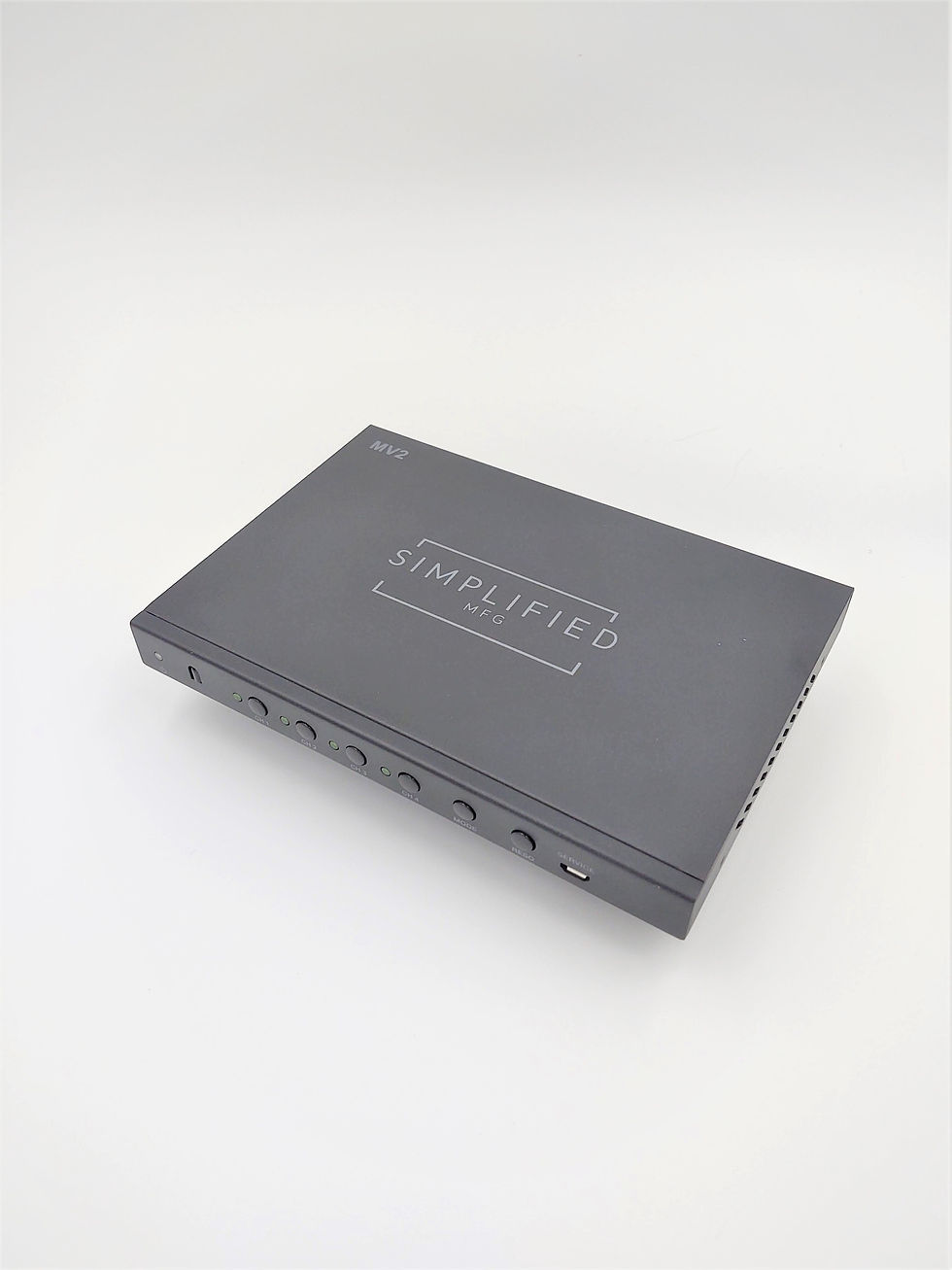

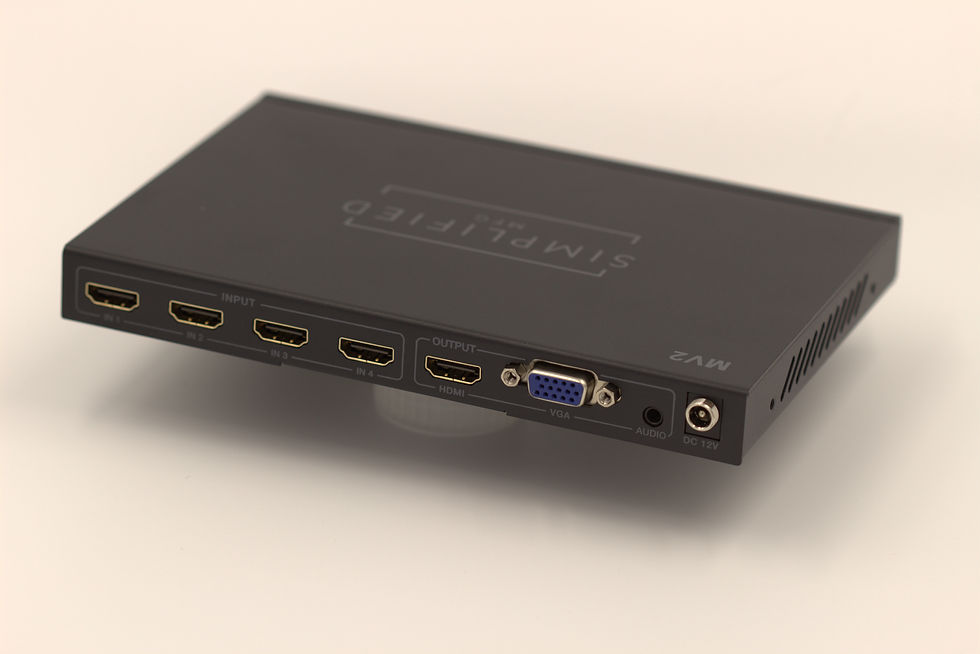

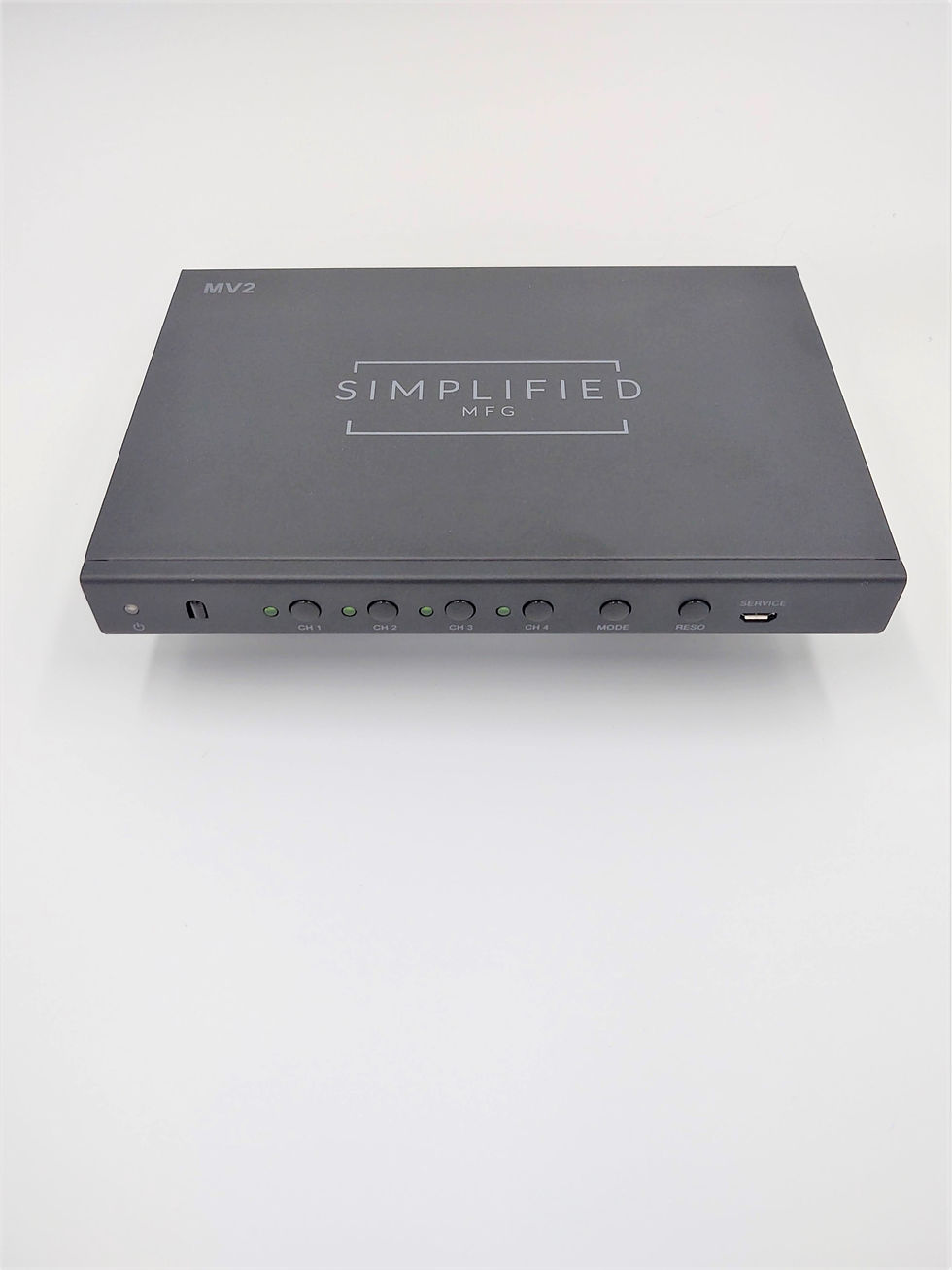

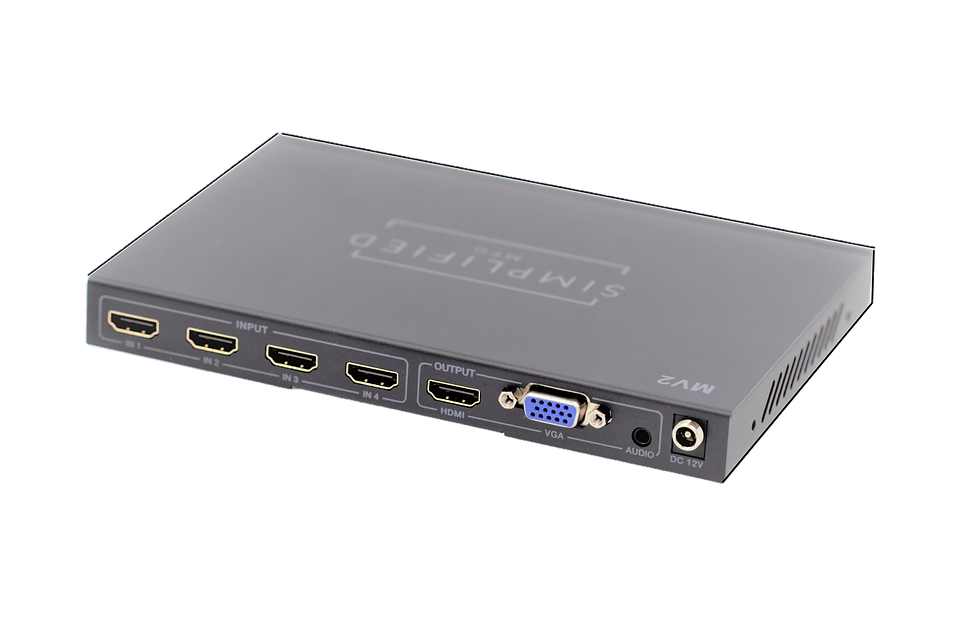

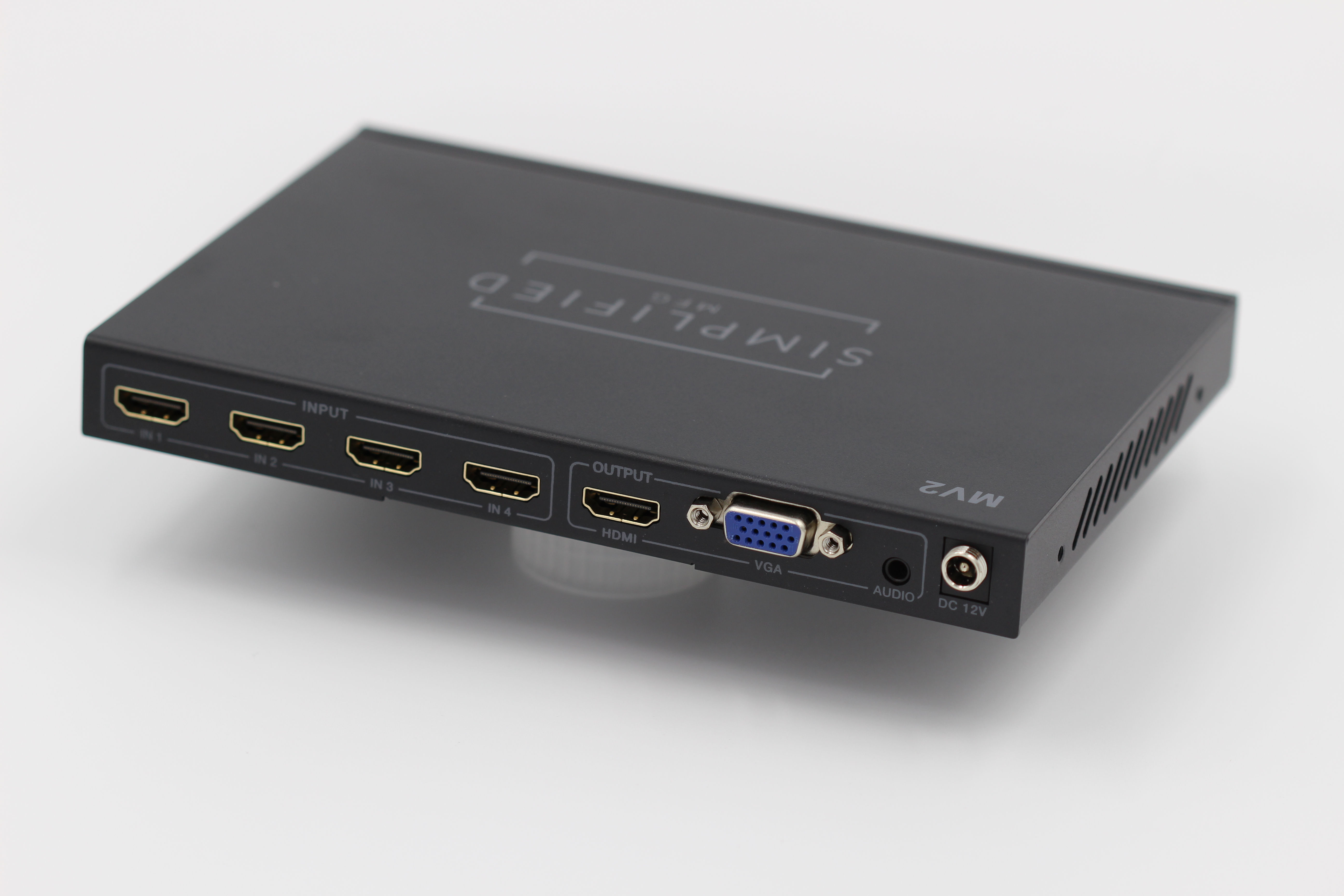

MV2
HDMI Multi-Viewer With Instant Switching and 4K Output
The MV2 is a 4 input, single multi-view output device that will accept four inputs and scale them to a Side by Side, Quad view, or Collaboration view in 4K @ 30Hz/1080p/720p resolutions. This device can also be used as a instant 1080p/4k 30Hz. switch. This is a perfect device for collaboration in a boardroom or classroom setting as well as sports bars. Because of the instant switching it is also ideal for live events such as presentations, education, and houses of worship. The MV2 can be controlled via IR Remote control and front panel buttons.
Features & Benefits:
HDMI 1.4b and HDCP 1.4 Compliant
Supports multiplexed HDMI 4-input and 1-output
Supports up to 4K @ 30Hz. resolution
Single View, Side by Side (stretched), Quad View, or collaboration mode (one large, 3 smaller pictures) output options
Up and Down Scaling options
Multiple Output Resolutions
Manual and IR Control Options
3-Year Warranty
HDMI Compliance 1.4b HDCP Compliance 1.4 Video Bandwidth 10.2Gbps Video Resolutions 3840x2160@30Hz,1920x1080@50/60Hz,1280x720@50/60Hz,1920x1200@60Hz,1024x768@60Hz Color Depth 8-Bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Audio Format LPCM2.0 44.1KHz 48KHz ESD Protection: Human Body Model ±8 kV (air-gap discharge) ±4 kV (contact discharge) Input Ports 4x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port] Output Ports 1x HDMI Type A [19-pin female] 1x VGA [VGA-D] 1x Audio [3.5mm Stereo Mini-jack] Housing Metal Color Black Dimensions 185mm/7.28" [W]×128mm/5.04" [D]×20mm/0.788" [H] Weight 595g/1lb., 5oz. Power Supply Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 7.68W (Max) Operating temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing)
