M44KT

Scaling HDBaseT 4x4 HDMI Matrix Kit over CAT5e/6/7
​

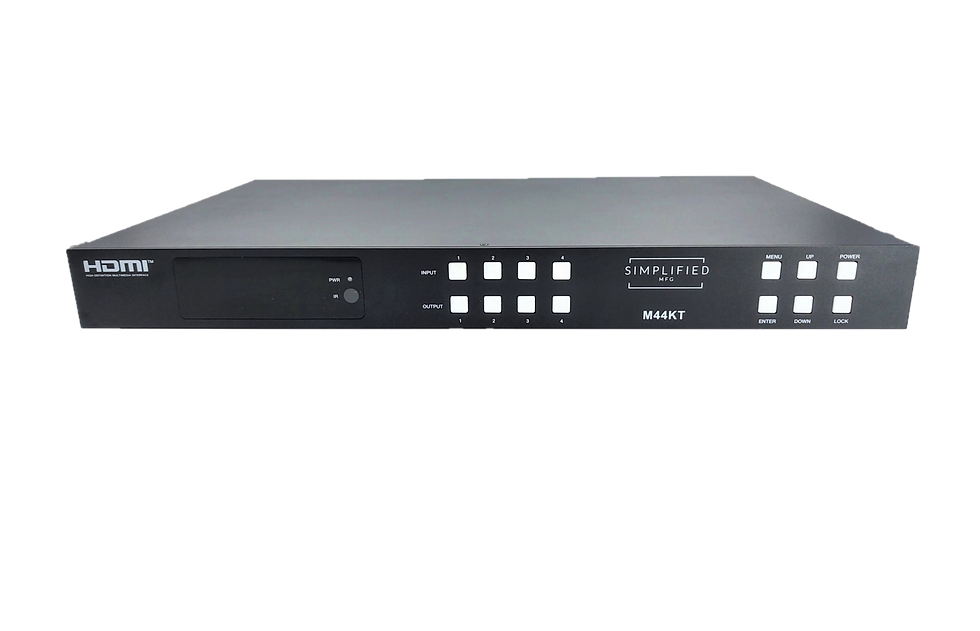

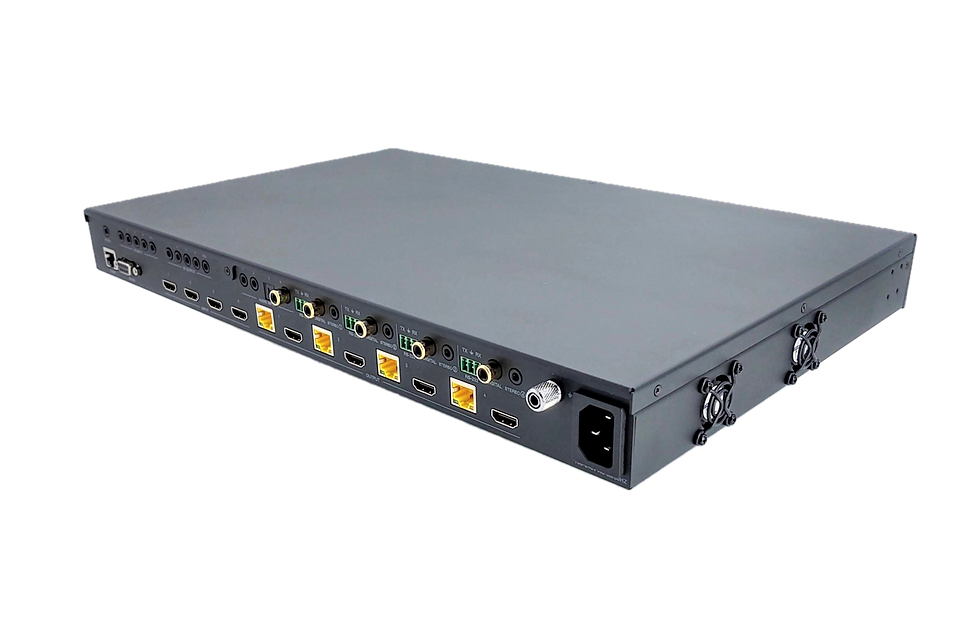

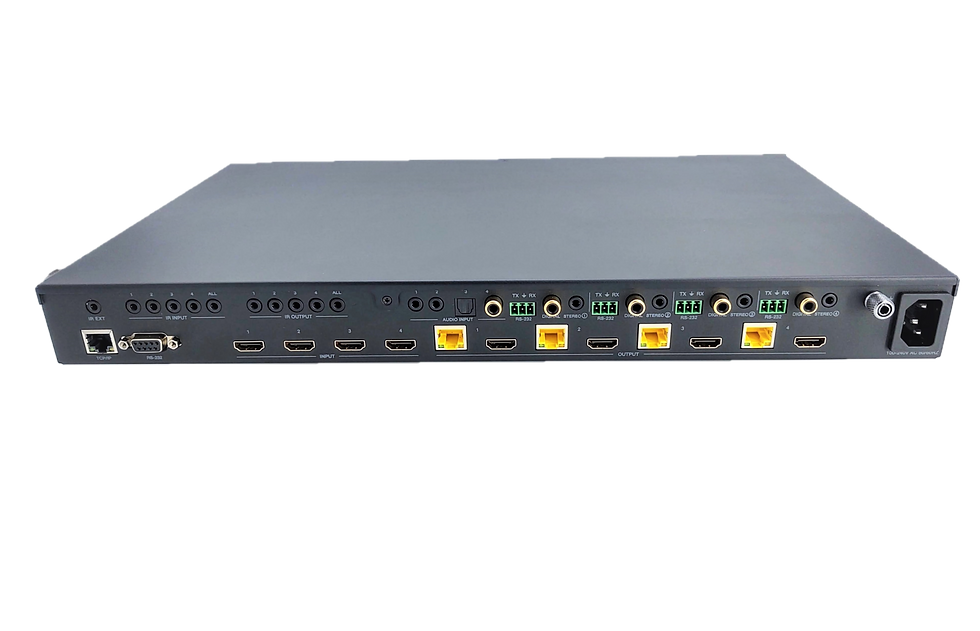

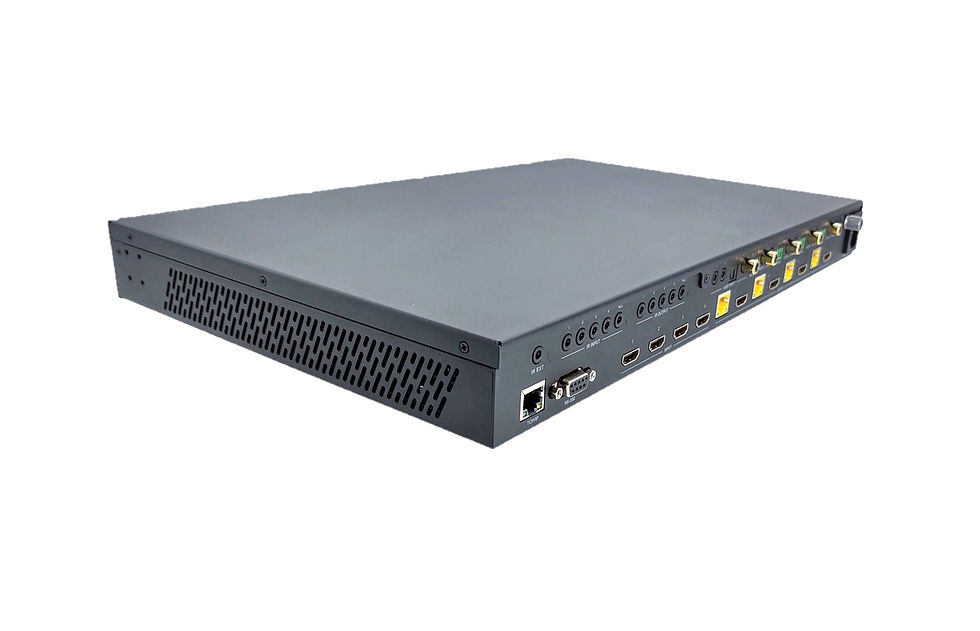

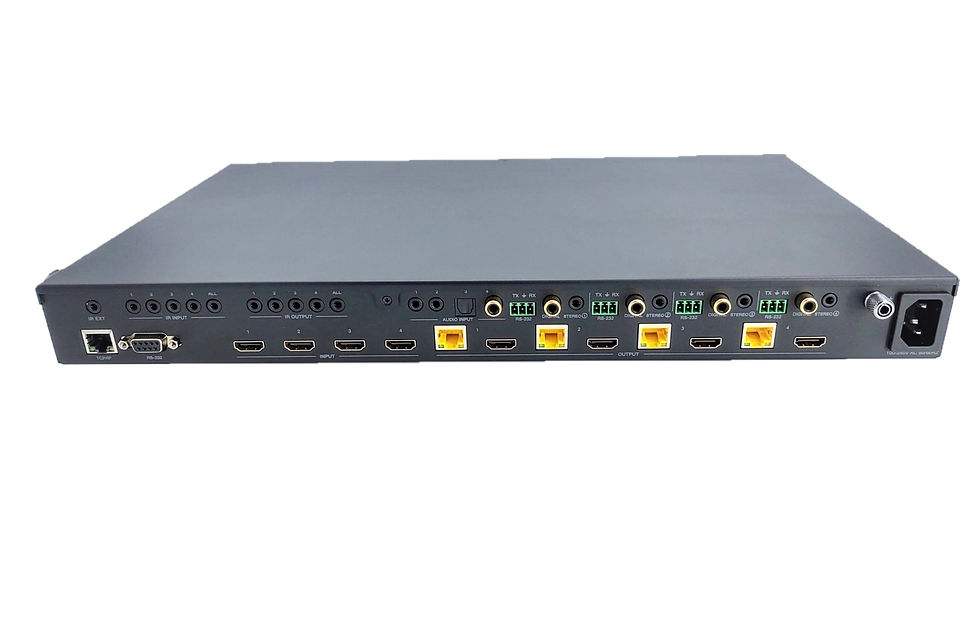

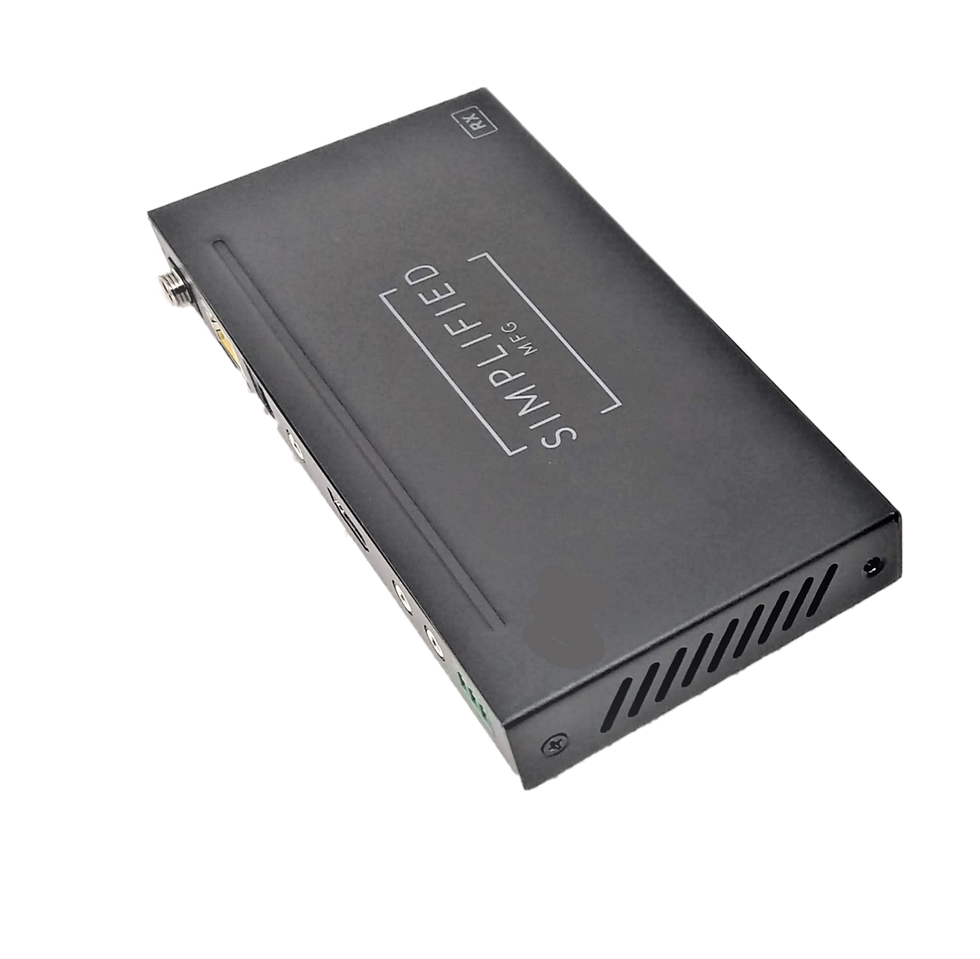

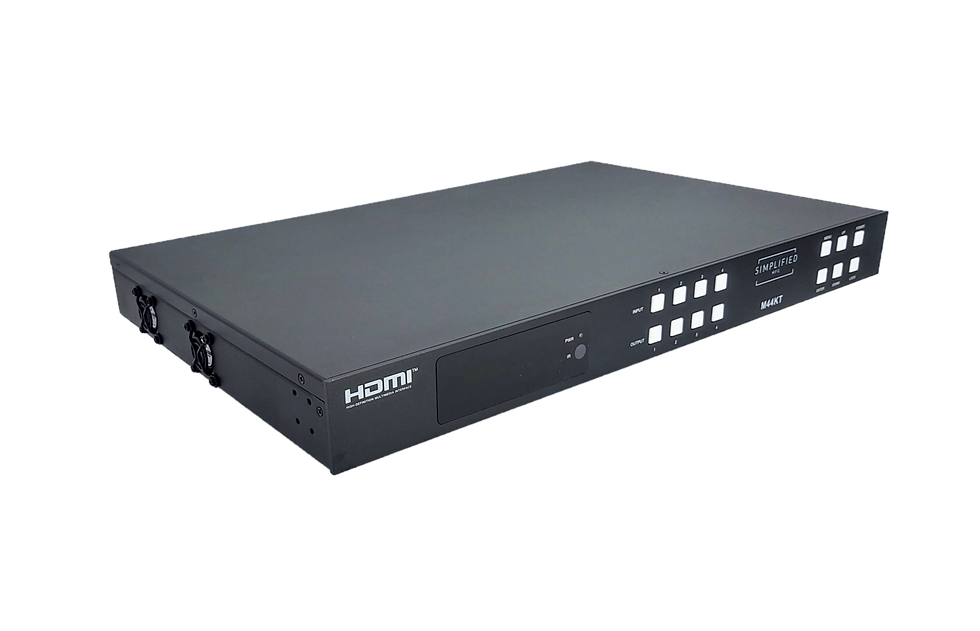

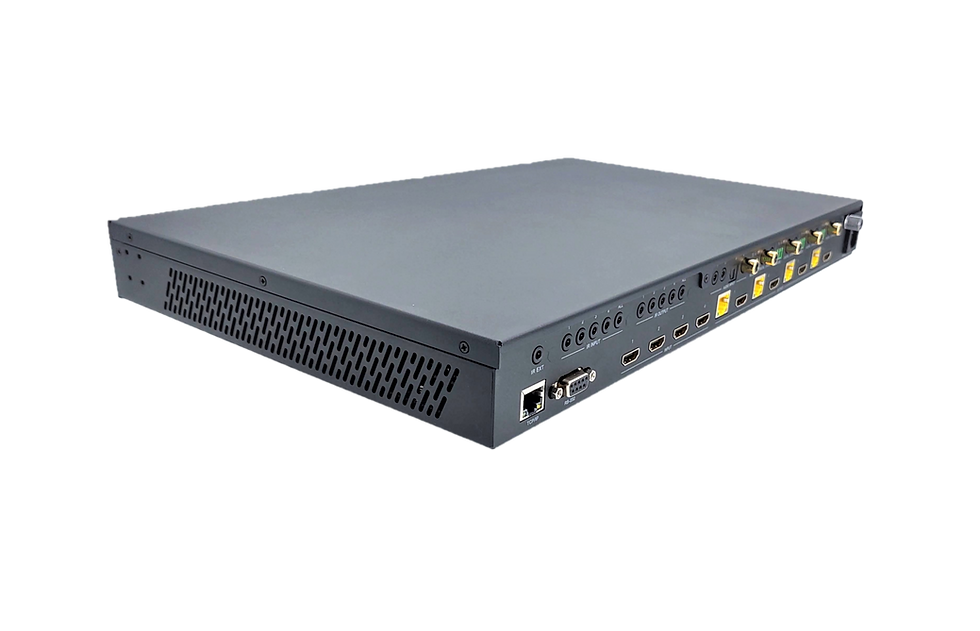

The M44KT is a Scaling HDMI 2.0b HDBaseT 18Gbpsgbps 4x4 HDMI Matrix with included 70m HDMI 1080p (40m 4K) over HDBaseT Receivers. This matrix switch features simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources up to eight displays (two mirrored per output channel). Each output can scale independently including the HDMI differently from the HDBaseT on the same channel. The M44KT supports the transmission  4Kx2K@60Hz (4:4:4), and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The HDBaseT receivers included in this kit will extend the HDMI signal up to 230ft/70m (1080p) or 131ft/40m(4K) for multi-room connectivity. The matrix also includes a 3.5mm mini and Coaxial S/PDIF audio breakout per channel.  Audio can be routed independent of the video as well. This matrix also supports HDR8/10/10+/DolbyVision.  ARC can be output via the S/PDIF if using a EXeARC1 or HDMI cable in the HDMI port.   Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. The innovative web GUI can be used to set scaling, ARC, Audio and presets to name a few features.

RTI Driver
URC Driver
Hercules Set-Up Utility by HW Group


Features & Benefits:
​​
Supports  RGB, YCbCr 4:4:4, YCBCr 4:2:2 and xvYCC video formats with deep color
Supports video format up to 4k2k@30Hz with 24bit RGB/YCBCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0
Supports HDR8/10/10+/DolbyVision pass through
Audio routing function including ARC (via HDMI port only)
Supports high resolution VESA mode video format up to QSXGA@60Hz
Supports reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS and HBR
Supports transmission distances up to 230ft/70m @1080p and 131ft/40m @ 4K through CAT5e/6/7 cable
Link and data flow indicators
Supports POE function
Supports wideband IR (30-60Khz) matrix system, IR transport channel can be forward or backward. And supports GLOBAL IR
Supports RS-232 4 channel bypass
Support simultaneous individually scaling HDMI and CAT outputs
Support RS-232, remote control, on-panel control and TCP/IP Control
Support smart EDID management with live function via innovative web GUI
3-Year Warranty
