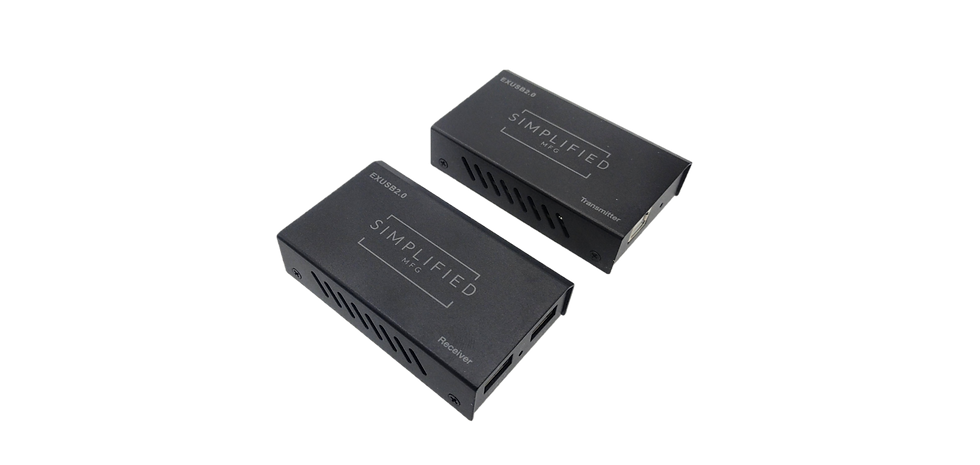

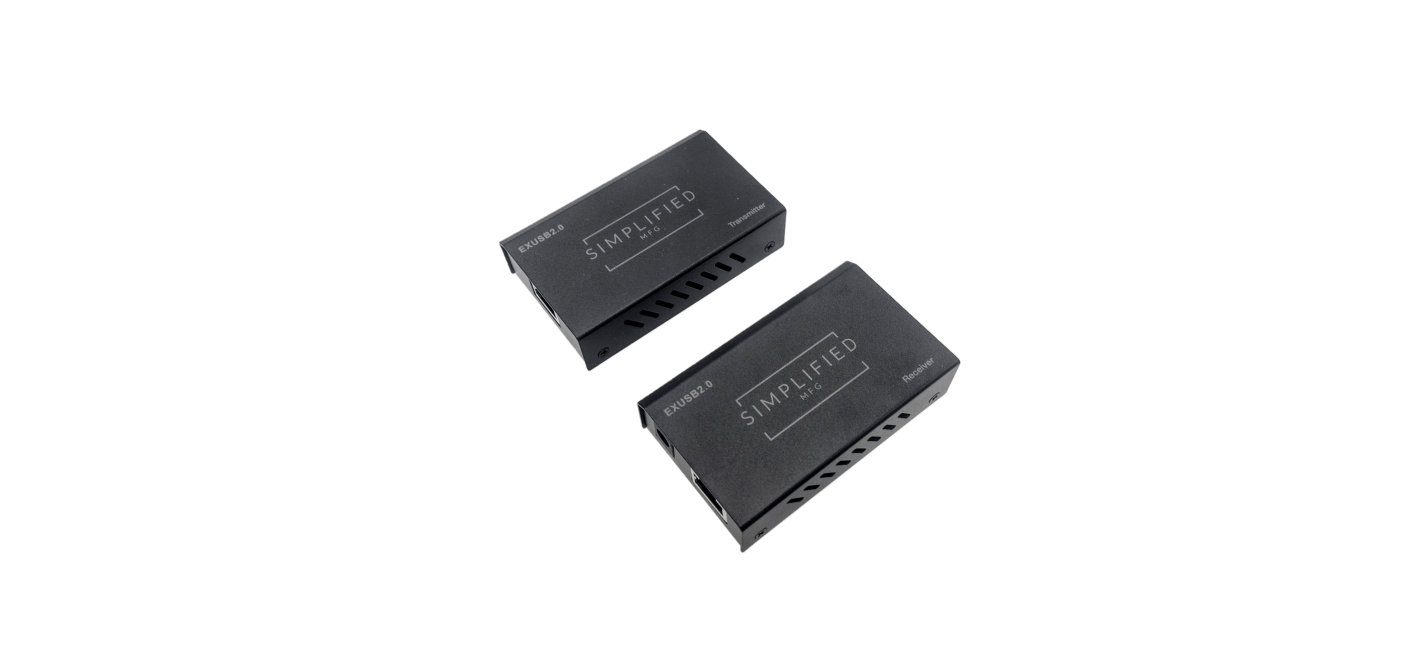

EXUSB2.0
$0.00Price
The EXUSB2.0 is a 40m (131ft.) USB2.0 over category cable extender
The EXUSB2.0 has a USB type B host port on the transmitter (TX) and two USB2.0 type A client ports on the receiver (RX). The TX is powered by USB and does not need a power supply. As much as 10m can be gained if the USB has more current delivery capability. The RX is powered by a 5V/1A power supply that is included in the kit. Applications are extending any USB device up to USB2.0 capability.
Features & Benefits:
Supports USB2.0 (480Mbps)
Up to 40m (131ft.) of distance
Plug and play, no setup
Single power supply at receiving end (TX is powered by USB)
One USB Type-B connection on TX, Two Type-A on the RX
3-Year Warranty
Distance by bit rate 192kHz. - 100m, 96kHz. - 150m, 48kHz. - 300m Digital to digital audio formats LPCM, DTS, Dolby Digital, & Dolby Digital+ Sample rates 32kHz., 4.1kHz., 48kHz., 96kHz., 192kHz. at 24-Bit resolution ESD Protection: Human Body Model +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge) Input Connections at TX Optical (Toslink) and Coaxial S/PDIF Output connections at RX Optical (Toslink), Coaxial S/PDIF, and 3.5mm mini jack Housing Metal enclosure Dimensions 69mm/2.72" [W] x 64mm/2.5" [D] x 24mm/0.95" [H] Weight TX 138g/4.875oz., RX 143g/5oz. Power Supply (1) 5V1A DC at RX Power Consumption 3 Watts max Operation Temperature 32~104 °F Storage Temperature -4 ~140 °F Relative Humidity 20~90 % RH (no condensation)
