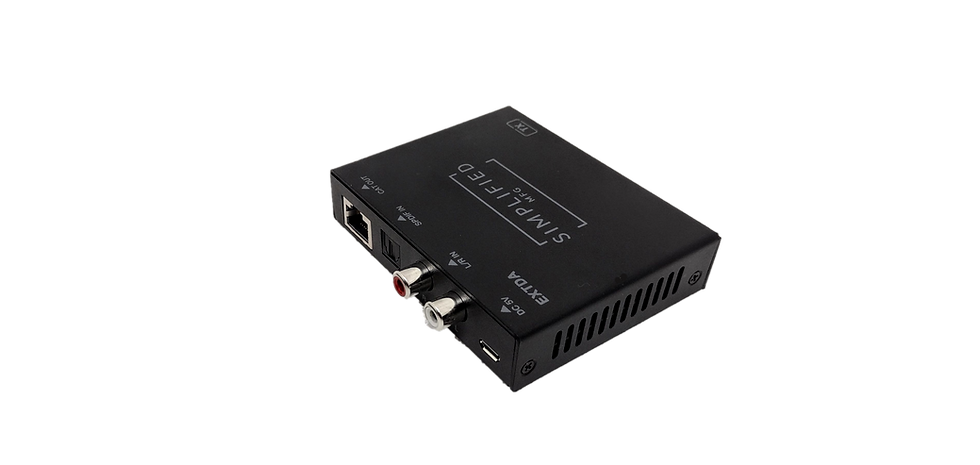

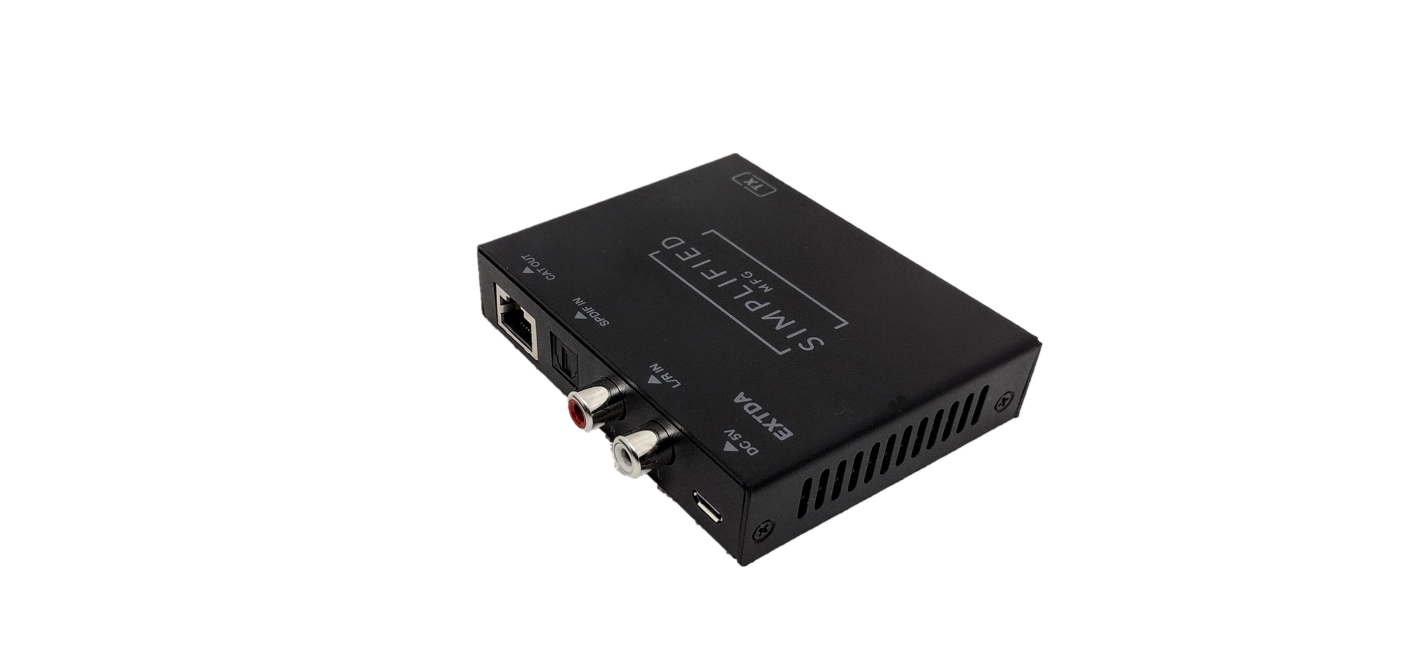

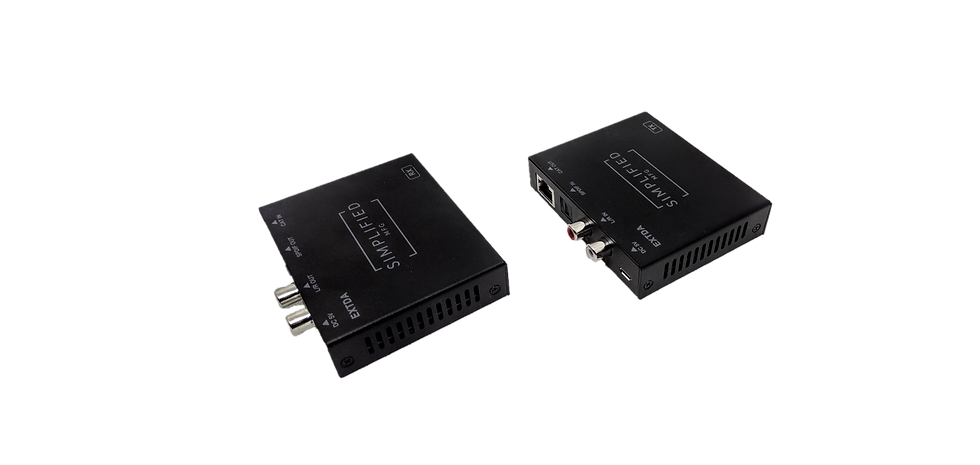

EXTDA
The EXTDA is a 100m digital audio extender that extends optical and/or RCA Analog formats over category cable
The EXTDA has an optical S/PDIF input and a pair of RCA inputs at the transmitter. The signal can be transmitted up to 100m at full bandwidth (192kHz.). Distances up to 300m can be achieved by lowering the sampling rate. The EXTDA can send both optical and RCA analog signals simultaneously and at the RX, the digital audio can be extracted in an analog format by selecting the TV/Optical switch (display audio has to be set to PCM). The EXTDA is compact and powers from either end via a Micro USB port.
Features & Benefits:
Both optical and RCA (analog) formats are supported
Either or both formats can be transmitted at the same time
RX has the option of selecting the digital audio or the analog audio to the RCA outputs
Supports up to192kHz. sampling rates at 24-bit resolution
LPCM, DTS, Dolby Digital, & Dolby Digital + is supported
Transmission Range:100m at full bandwidth and 300m at low bandwidth
Compact design for an easy and flexible installation
Powers at from either end via Micro USB port
3-Year Warranty
Distance by bit rate 192kHz. - 100m, 96kHz. - 150m, 48kHz. - 300m Digital to digital audio formats LPCM, DTS, Dolby Digital, & Dolby Digital+ Sample rates 32kHz., 4.1kHz., 48kHz., 96kHz., 192kHz. at 24-Bit resolution ESD Protection: Human Body Model +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge) Input Connections at TX Optical (Toslink) and Analog (RCA) Output connections at RX Optical (Toslink) and Analog (RCA) Housing Metal enclosure Dimensions 90mm (3.54”) [W] × 73mm (2.875”) [D] × 20mm (.79”) [H] Weight TX 173g/6.125oz. RX 176g/6.125oz. Power Supply (1) 5V1A DC at either device via Micro USB port Power Consumption 3 Watts max Operation Temperature 32~104 °F Storage Temperature -4 ~140 °F Relative Humidity 20~90 % RH (no condensation)
