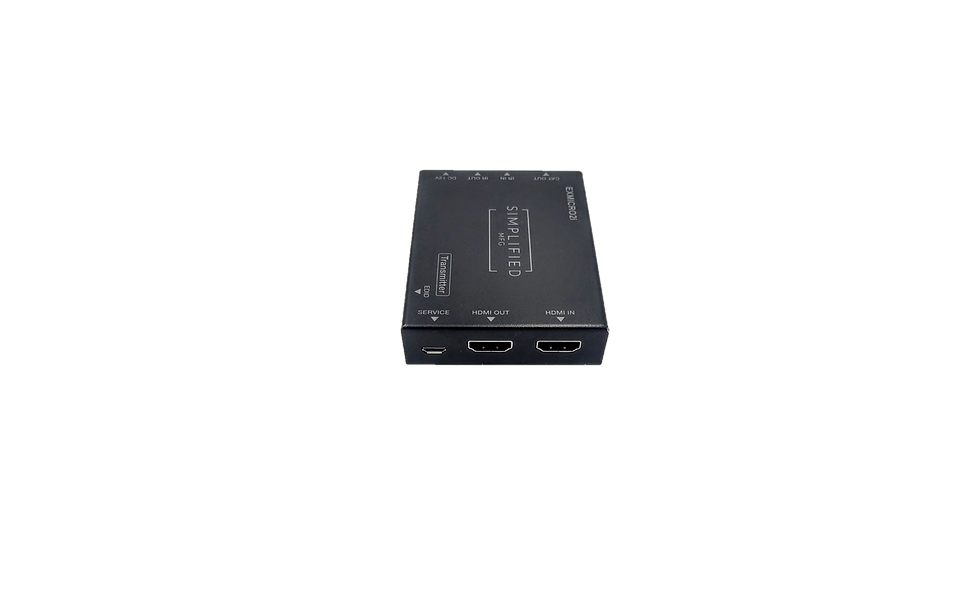

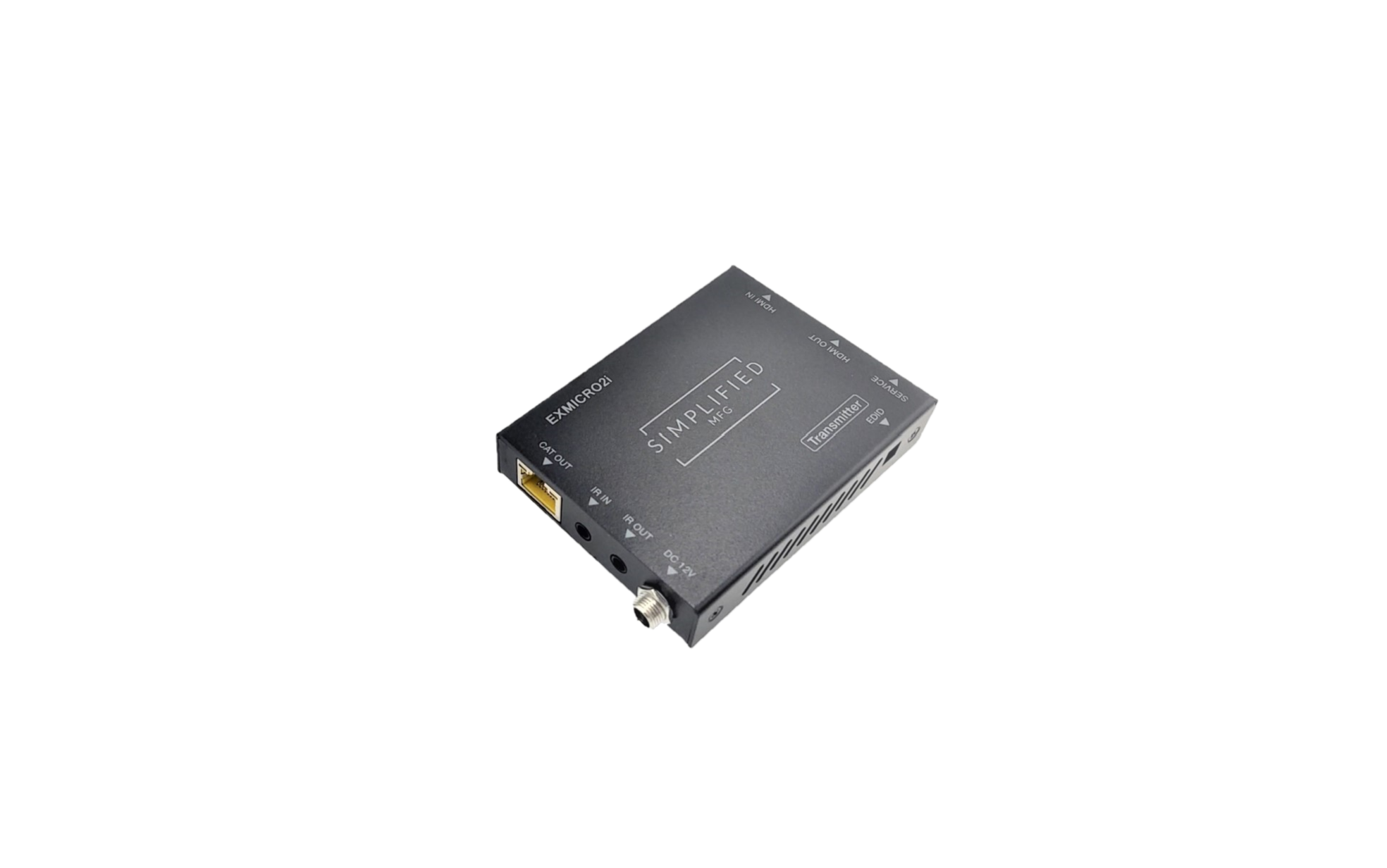

EXMICRO2i

EXMICRO2i

$0.00Price
Quantity
HDMI extender that supports 4K/UHD/1080p up to 50m/164ft. on Cat6/6A, with EDID and 2-Way 12V IR that is control system compatible
​

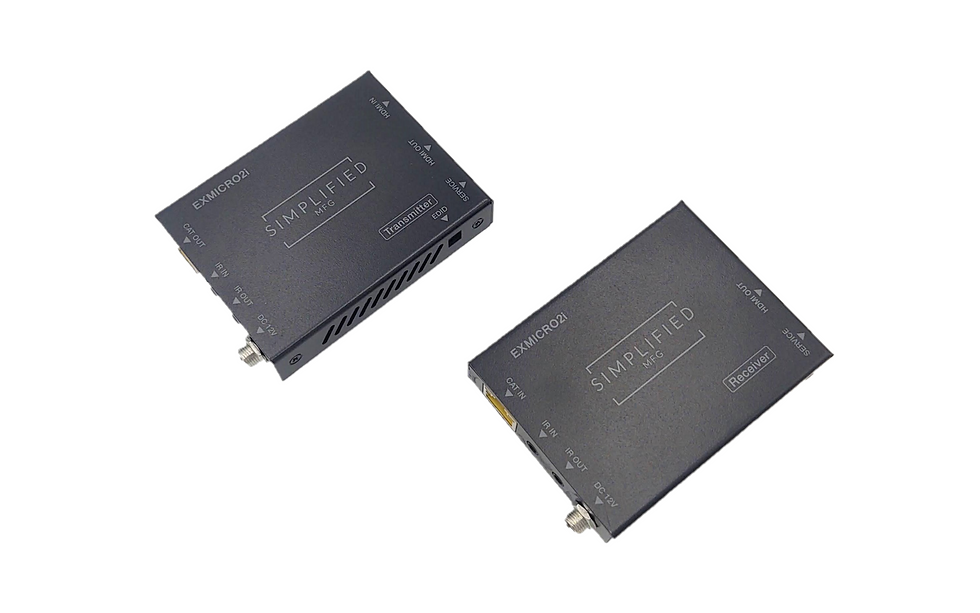

The EXMICRO2i is the latest in the Simplified MFG Micro line.  It extends either 4K/UHD or 1080p HDMI signals up to 50m/164ft.  The EXMICRO2i supports the entire HDMI 2.0b format including HDR and HDR+.  The extender kit only requires power from one end (either) and has a 2-Way 12V IR kit included (one TX and one RX).  There is also an innovative EDID circuit that allows for two preset EDID's (4K 60Hz. Stereo and 1080p 60Hz. Stereo.  The other two settings allow for copy of the connected display at the RX or at the TX.  In addition, this technology is more efficient than most only drawing about 1/3 the power (3.84W) of a typical extender set similar to its abilities.  Small, efficient, effective.

Features & Benefits:
​​
  • Allows HDMI 2.0b (18Gbps) Audio/Video and 2-Way IR signals (to and from display) to be transmitted over a single Cat6/5e cable
  • Built in EQ technology to eliminate
    clocking issues
  • EDID Management (copy from display at RX, copy from display at TX, 1080p 60Hz. Stereo, 4K 60Hz. Stereo)
  • Transmission Range:
    • 4K@60Hz up to 50m/164ft over Cat6 cable.
    • 1080P@60Hz up to 50m/164ft over Cat6 cable.
  • HDCP1.4 and HDCP2.2 compliant
  • Power from RX or TX
  • Compact design
  • 3-Year Warranty
  • HDMI Compliance  HDMI 2.0b
    HDCP Copliance  HDCP 2.2/1.4
    Video Bandwidth  18Gbps
    Video Resolution  Up to 4K @60Hz 4:4:4
    Color Space  RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
    Color Depth  8,10,12-Bit
    HDMI Audio Formats  LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
    ESD Protection  Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

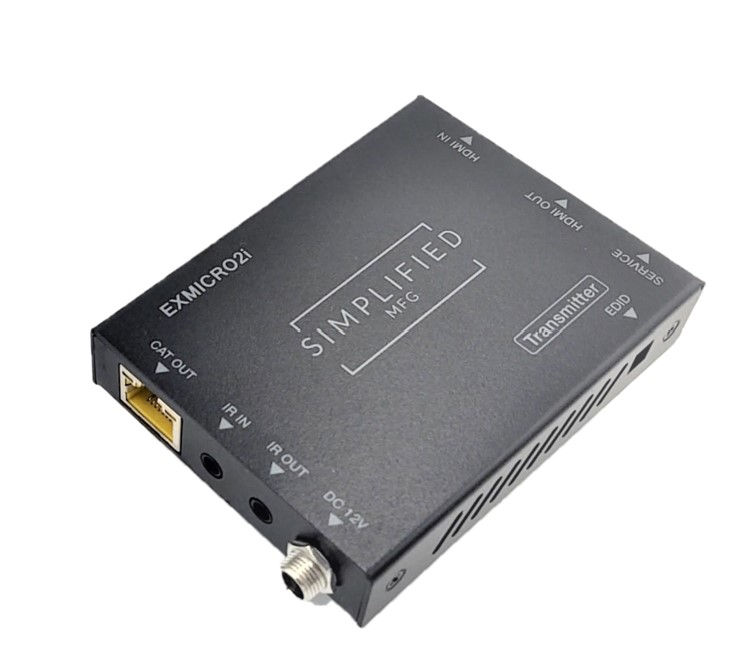

  • Transmitter Inputs  1x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port]
    Transmitter Outputs  1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female]

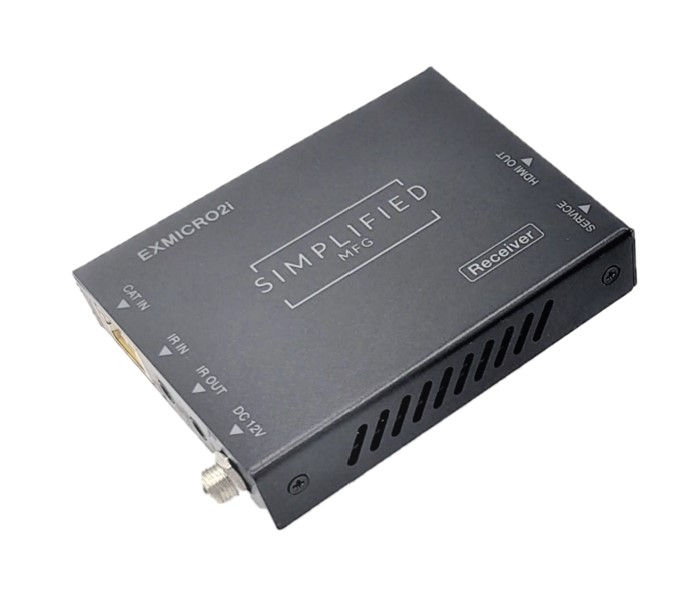

    Receiver Inputs  1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port]
    Receiver Outputs  1x HDMI Type A [19-pin female]
    Housing  Metal
    Color  Black
    Dimensions  3.5" (88mm) [W] x 2.4" (61mm) [D] x 0.7" (18mm) [H]
    Weight  Transmitter: 160g/5.6 oz., Receiver: 155g/5.5 oz.
    Power Supply  Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A
    Power Consumption  3.84 W
    Operating Temperature  32 - 104°F / 0 - 40°C
    Storage Temperature  -4 - 140°F / -20 - 60°C
    Relative Humidity  20 - 90% RH (no condensation)
