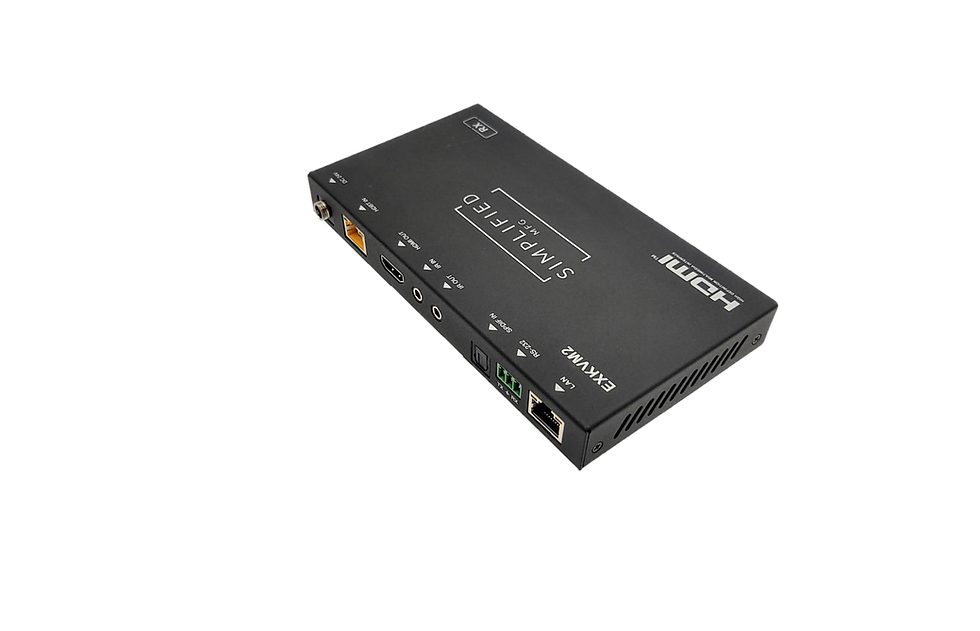

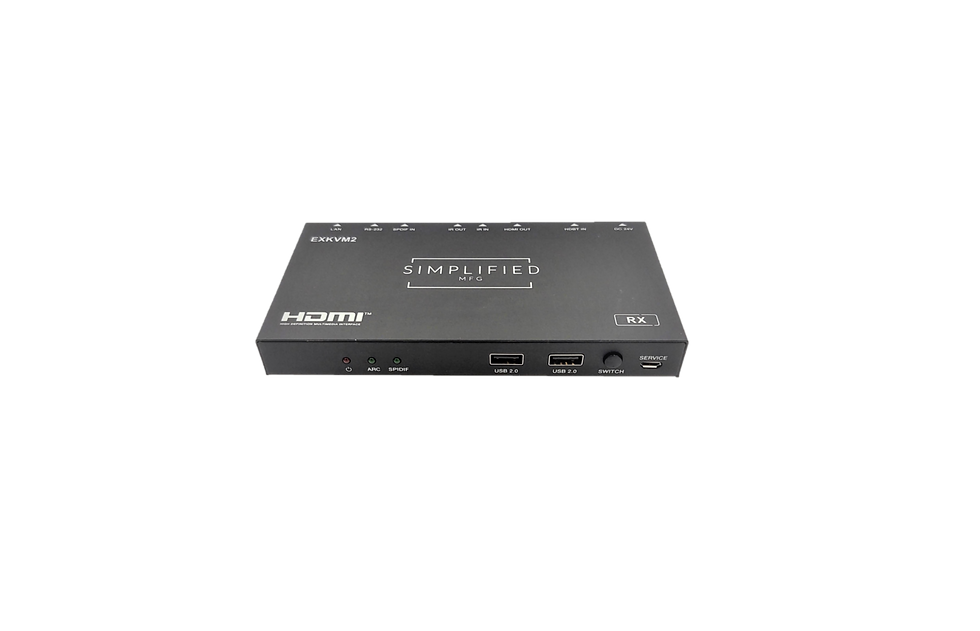

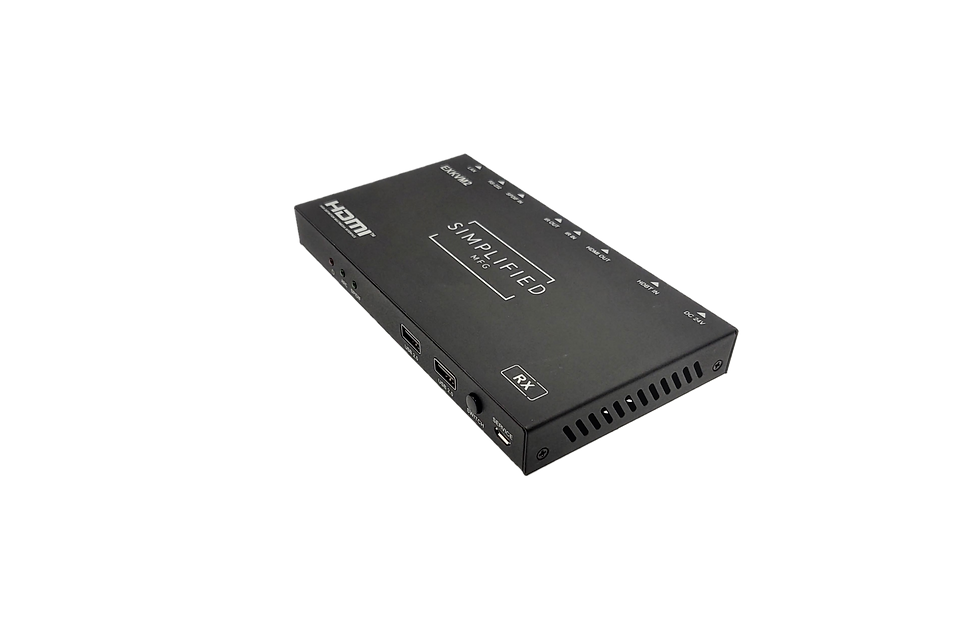

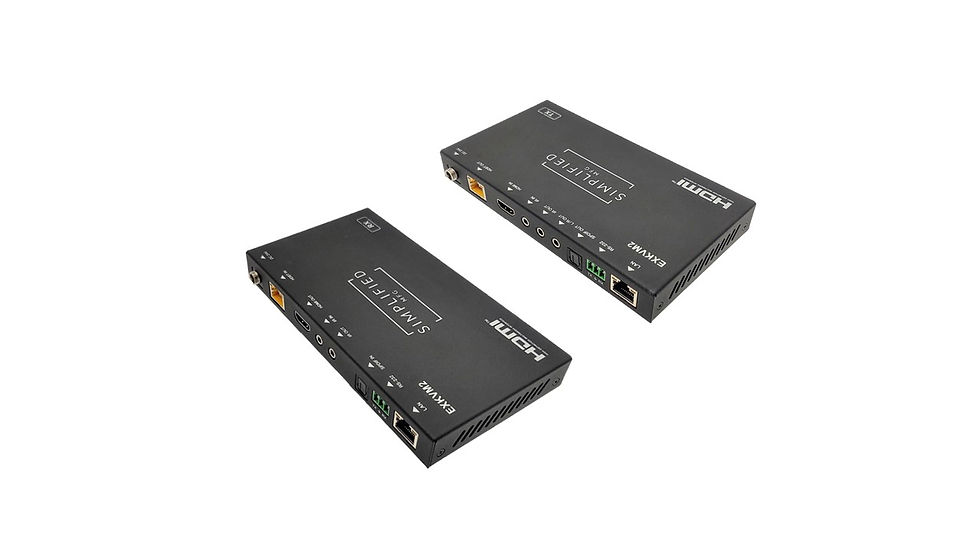

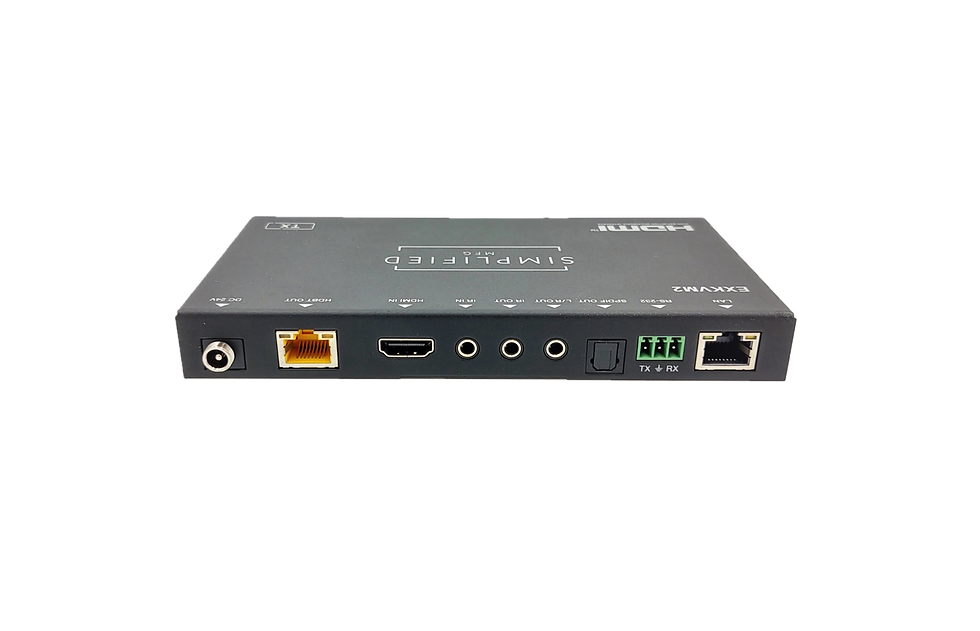

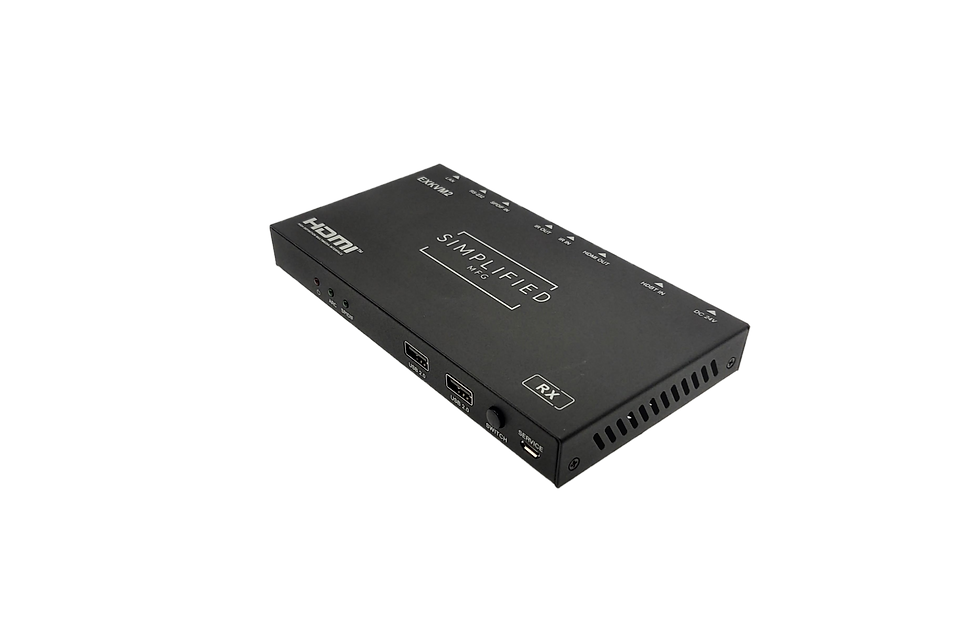

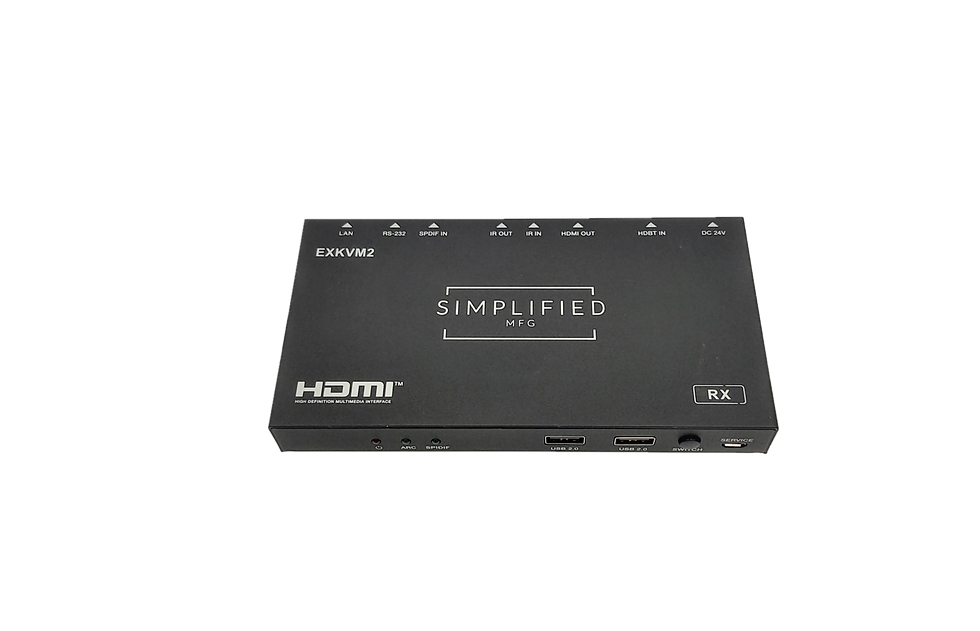

EXKVM2
HDMI 2.0b (18Gbps) Extender over Cat6/6A
The EXKVM2 Extender is a device which can extend your HDMI signal over 295ft/90meters to a compatible 4K display, 330ft/100meters to a 1080p compatible display, while simultaneously, returning audio and USB camera signals while sending the AV to the display along with control and Ethernet. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by category cable. The features include ARC return to TX via S/PDIF in or HDMI to display, Ethernet passthrough, USB 2.0, RS232, 2-Way 12V IR, and the ability to power on one end (RX or TX)
Primary Use: Extending HDMI AV and a myriad of control (including USB) and audio functions up to 330ft.
Features & Benefits:
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
ARC from Display to S/PDIF on TX
USB 2.0 (Client or Server from either end)
S/PDIF send from Display to S/PDIF on TX
100 BaseT Ethernet passthrough
Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
Bidirectional 12V Infrared control signal together with the HDMI signal
Transfer Bidirectional RS232 control signal together with the HDMI signal
Transmission distance: Over CAT6 cable
100 meters:
1080P @60Hz36bit; 3D1080P@30Hz36bit;
90 meters:
4K x 2K HDR/DolbyVision YUV 444 HDMI 2.0b (18Gbps)
3-Year Warranty
HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18 Gbps Video Resolutions up to 4K2K@50/60Hz (YUV4:2:0),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit, 10-bit, 12-bit HDMI Audio Format (Passthrough) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X POE Format 24V ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
