EXFBR Newly Revised!

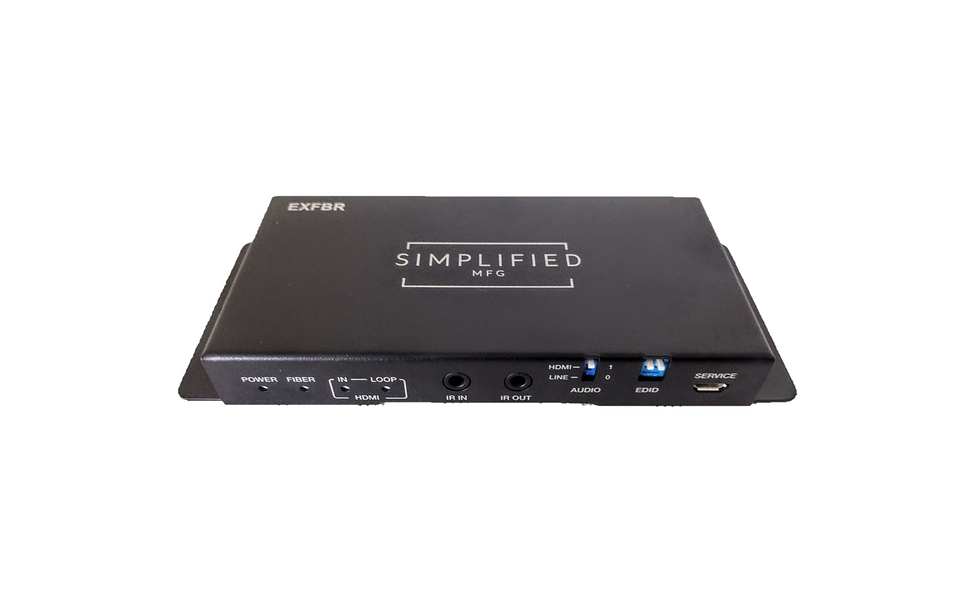

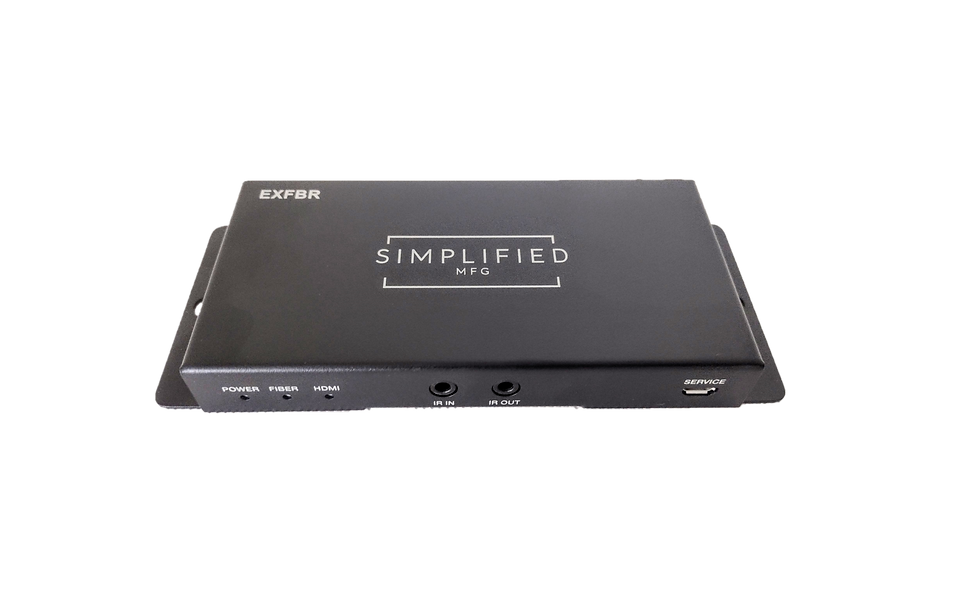

The EXFBR 18Gbps HDMI Extender is a device which can extend your HDMI signal over 10,000meters on single mode fiber to a compatible HDMI 2.0b display. The EXFBR supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. It also supports Bi-directional Infrared control, RS232, audio insertion or pass-through, and EDID management. The kit also includes Dual mode (single and multimode fiber) SFP modules.
Features & Benefits:
HDMI 2.0b (18Gbps)
HDCP 2.2
Video resolutions up to 4K2K@50/60Hz (YUV444)
HDR8/10/10+ pass through
Dolby Vision™ pass through
Supports HDMI High Bit Rate(HBR) audio pass through

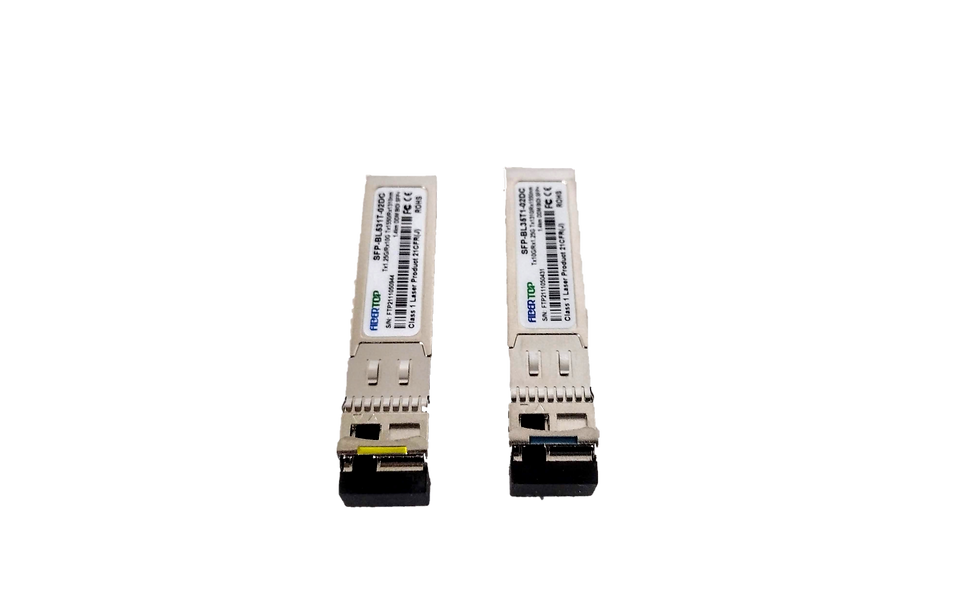

The kit includes SFP modules
Bidirectional Infrared control signal together with the HDMI signal
Transfer Bidirectional RS232 control signal together with the HDMI signal
Audio Insertion or pass-through ability
EDID management
Transmission distance over single mode fiber
10,000 meters/33,000 Ft.
3-Year Warranty
HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 & HDCP 1.4 Video Bandwidth 18Gbps Video Resolutions Up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit, 10-bit, 12-bit HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Operation Range Up to 33,000 feet/10,000 meters over single-mode fiber cable IR Frequency 20KHz - 60KHz RS-232 Baud Rate 4800-115200bps ESD Protection Human body model — ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions 134mm/5.28" [W] x 68mm/2.68" [D] x 18mm/0.71" [H] Weight TX: 280g/9.88oz. RX: 278g/9.8oz. Power Supply Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption TX 3.85W (max) RX .2.7W (max) Operating Temperature 32 - 104°F / 0 - 40°C Storage Temperature -4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation)
