HDMI 2.0b 18Gbps Extender over Cat5e/Cat6 with eARC

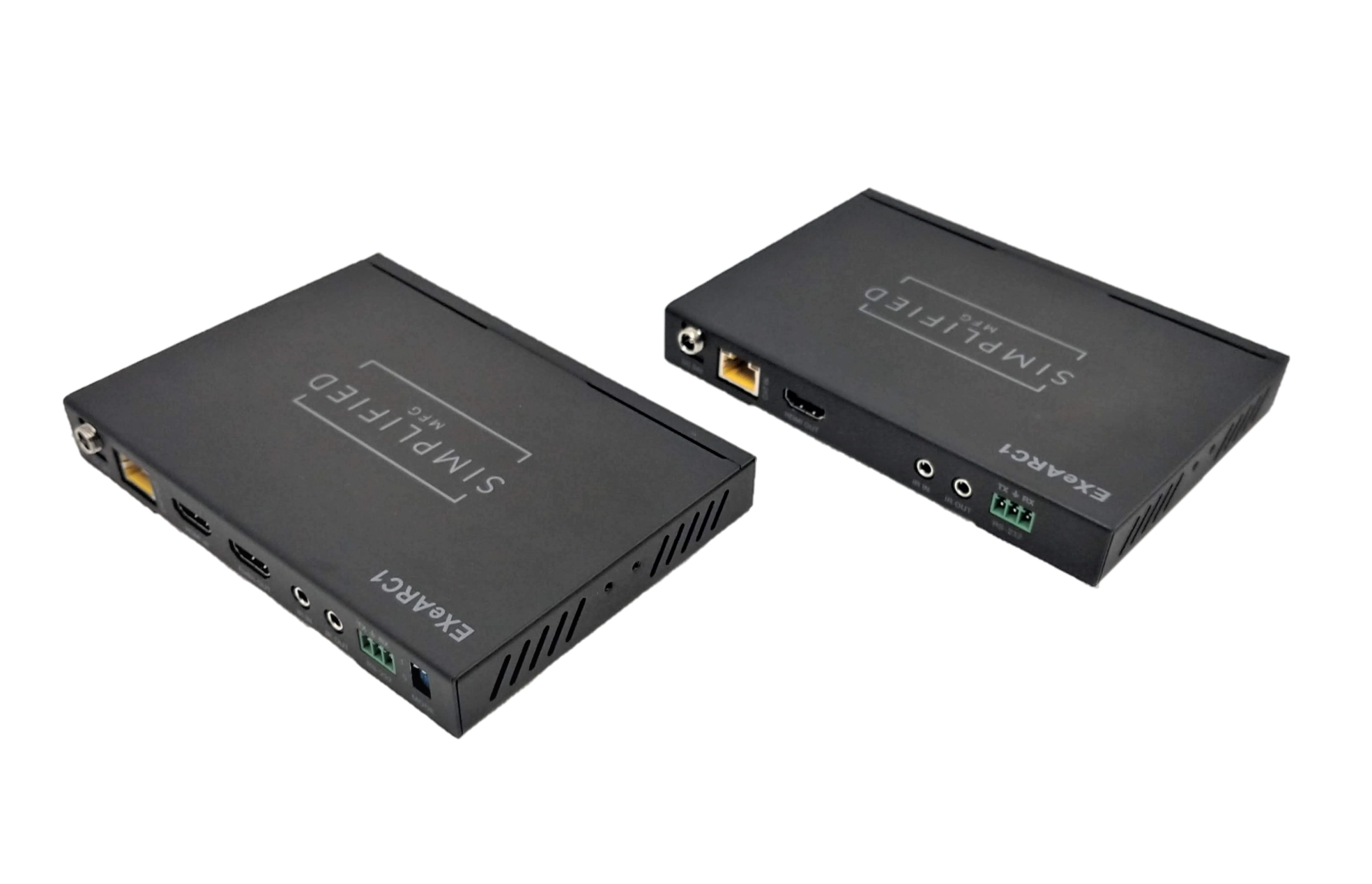

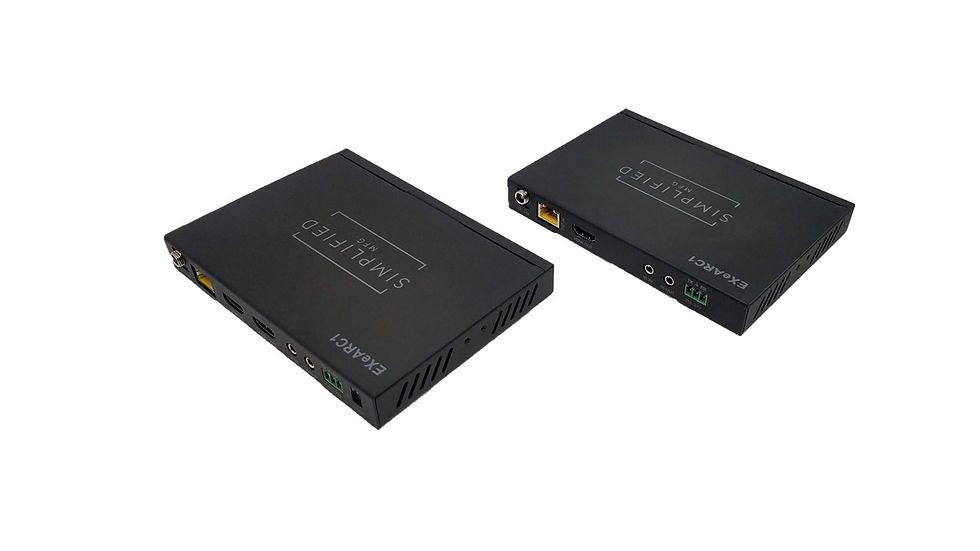

The EXeARC1 18Gbps HDMI 2.0b extender is the first of its kind that will bring eARC back from the display to the transmitter end. With this device you can bring uncompressed Dolby+/Atmos audio from your display back to the source/rack up to 50m. You can use it in ARC or eARC mode. The EXeARC1 supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard. It also supports Bidirectional Infrared control, RS232, together with the 18gbps HDMI 2.0b signal.
Features & Benefits:
eARC and ARC are fully supported to bring Dolby+ and Atmos audio back to your rack or AVR
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
HDR8/10/10+pass through
Dolby Vision™ pass through
Supports HDMI High Bit Rate(HBR) audio pass through
Supports CEC
Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
Bidirectional Infrared control signal together with the HDMI signal
Transfer Bidirectional RS232 control signal together with the HDMI signal
Transmission distance: Over CAT6 cable
50 meters:
1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
3-Year Warranty
HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.4 Video Bandwidth 18Gbps Video Resolutions up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8, 10, & 12-Bit HDMI Audio Formats (pass-through and eARC) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X POE Format 24V ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
