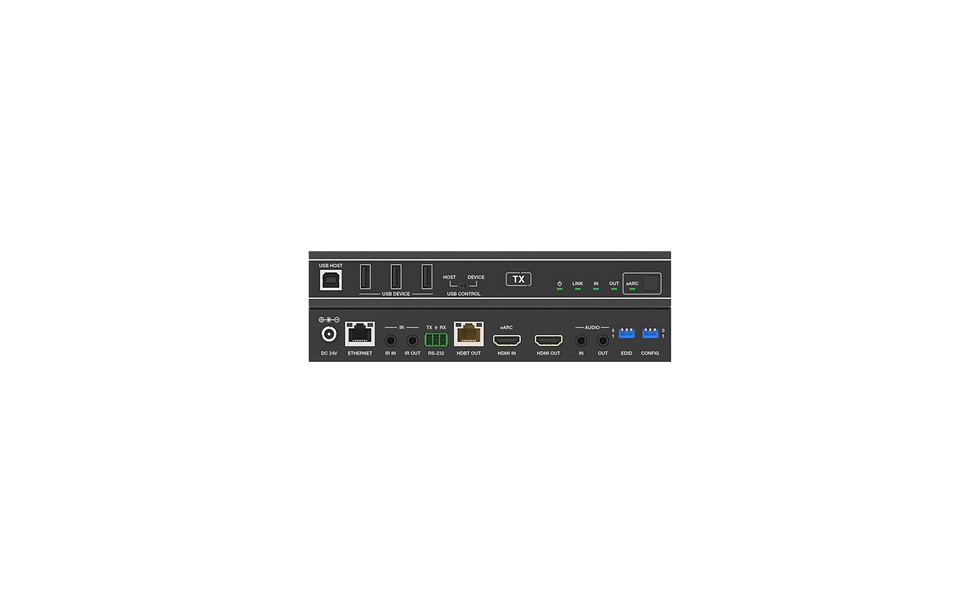

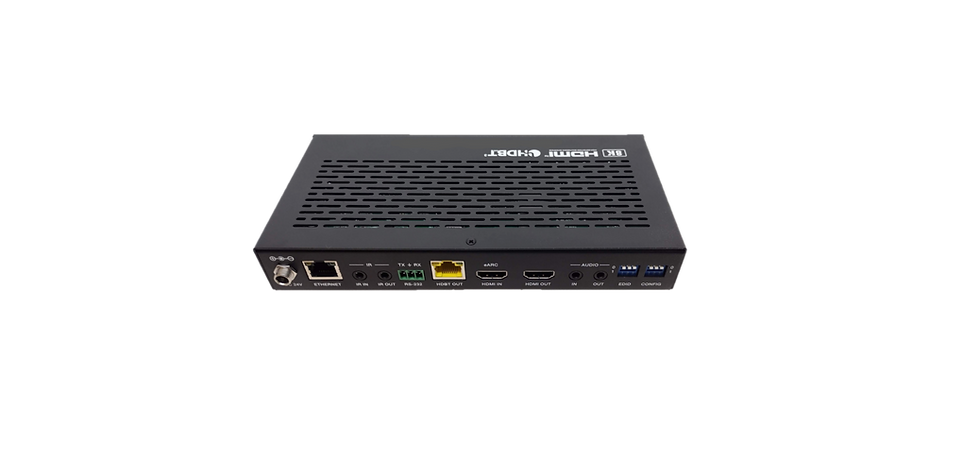

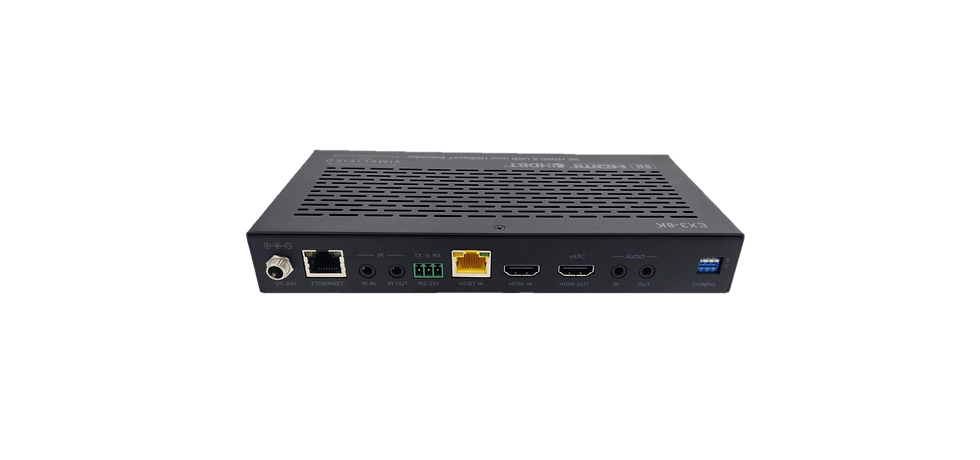

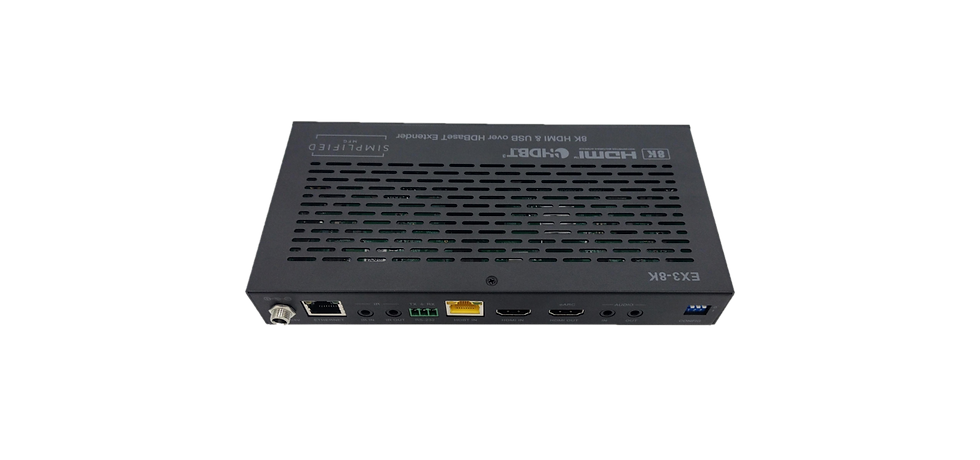

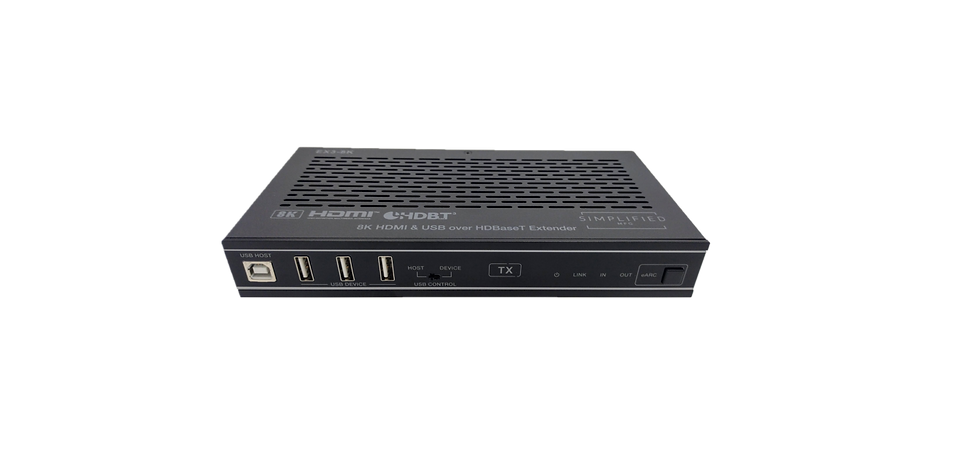

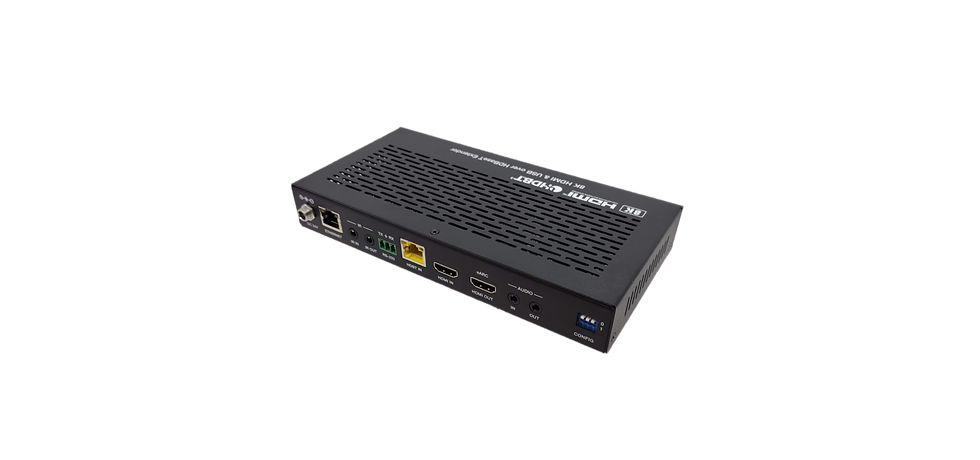

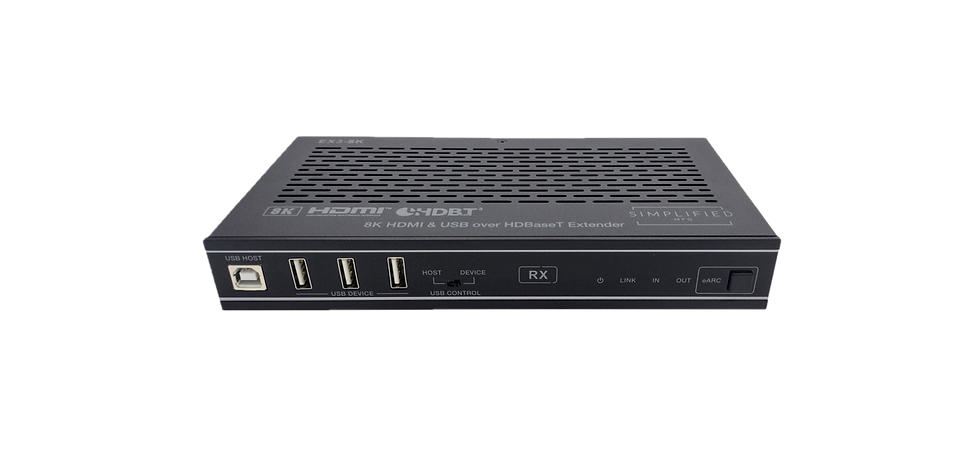

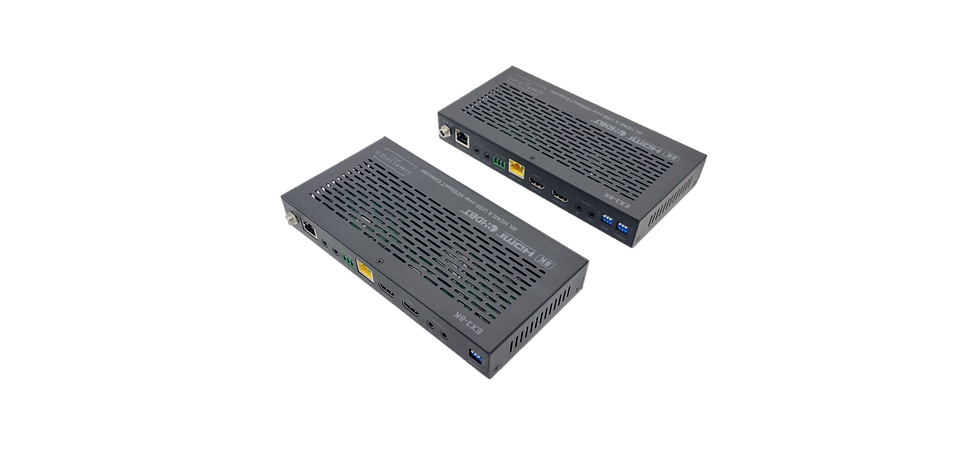

EX3-8K

EX3-8K

$0.00Price
Quantity
HDMI 2.1 (40Gbps) Extender over Cat6A
​

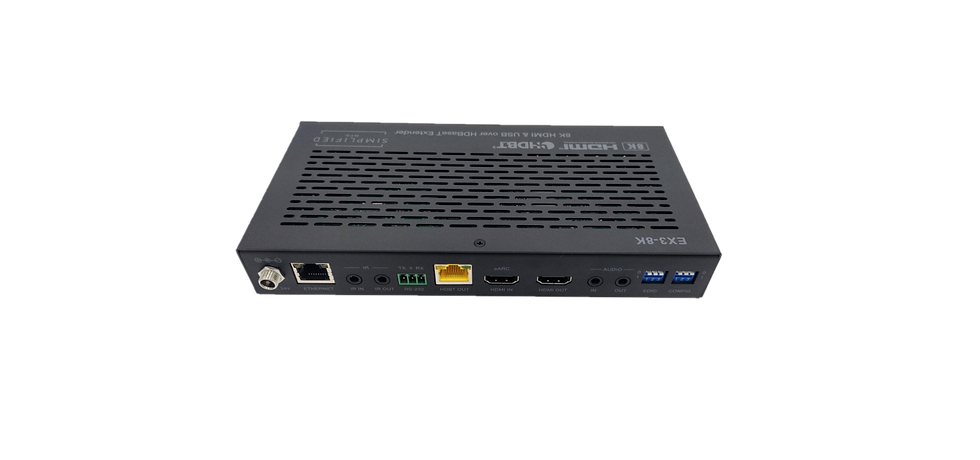

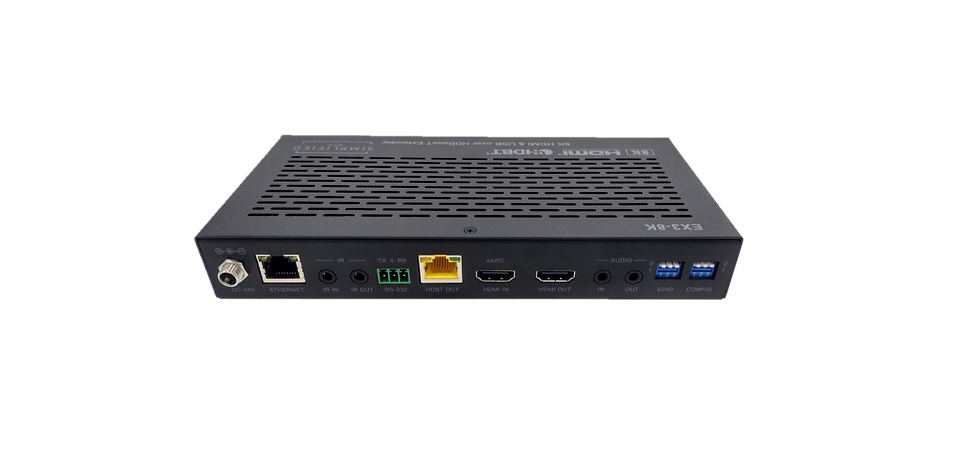

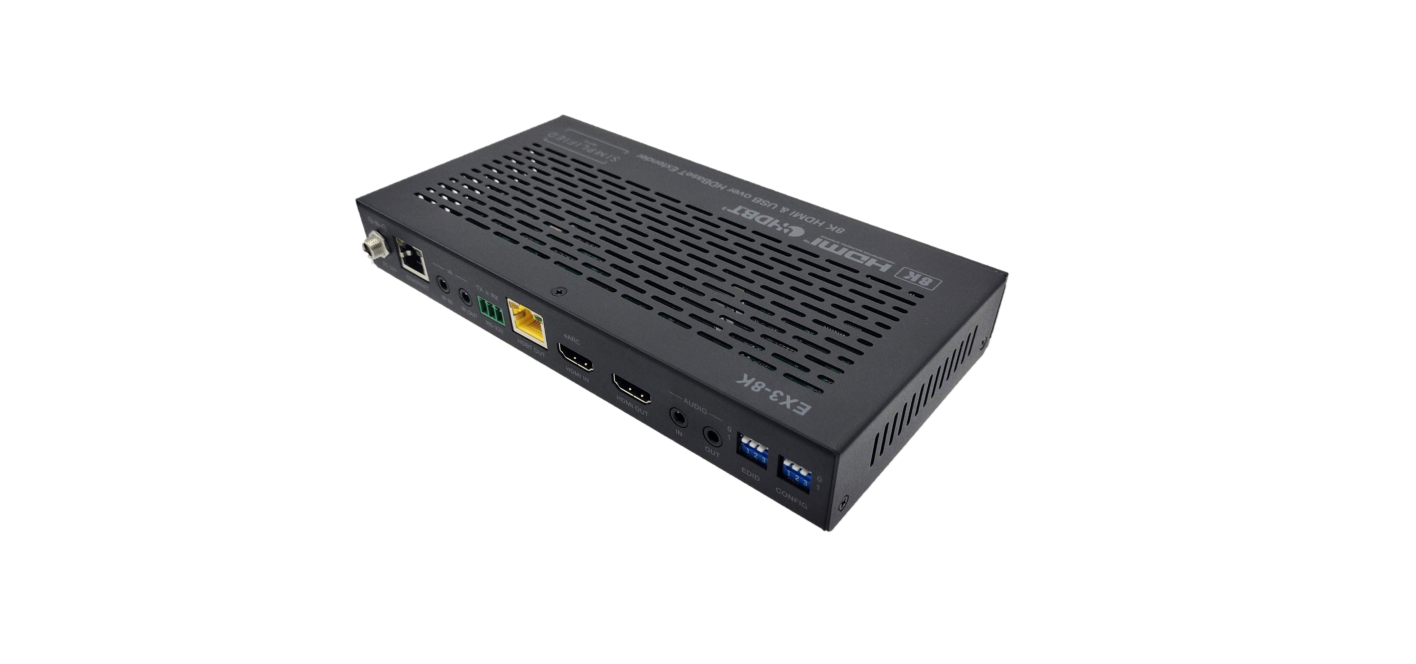

The EX3-8K Extender is a device which can extend your 8K or 4K@120Hz. HDMI signal over 295ft/90meters to a compatible 8K/4K display.  The EX3-8K also supports eARC, 1Gbps Etherenet pass-thru, USB 2.0, 2-Way IR, RS-232, and a separate stereo audio pass-thru.  This is the most capable 8K on category cable HDMI extender on the market. Other advanced features include, EDID management, configurable RS-232 functions (can reset extender with a command), and even a 1080p @24Hz video return ability.
​
Primary Use: Extending High bandwidth 8K or 4K@120Hz. HDMI AV and a myriad of control  (including USB) and audio functions up to 295ft on category cable.  The EX3-8K will operate on Cat 6 at a shorter distance (50-60m).
​
Available October 2023

Features & Benefits:
​​
  • HDMI 2.1 (40Gbps), HDCP 2.3/HDCP2.2, HDCP1.4 and DVI compliant
  • Video resolutions up to 8K2K@50/60Hz (YUV444) / 4K 120Hz. (YUV444)
  • Uncompressed eARC support
  • USB 2.0 (Client or Server from either end)
  • 1Gbps Ethernet Pass-Thru
  • Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
  • Bidirectional 5V or12V Infrared control signal together with the HDMI signal
  • Transfer Bidirectional RS232 control signal together with the HDMI signal
  • Separate stereo pass-through (both directions)
  • RS-232 pass through can be routed to the extender to update and do basic commands, like a reset.
  • eARC/ARC bandwidth can be used for 1080p @24Hz video return
  • Transmission distance: Over CAT6A cable​
  • 90 meters (Cat6A/7), 50m (Cat6)​
      • 8K x 4K HDR/DolbyVision YUV 444 HDMI 2.1 40Gbps)
  • 3-Year Warranty
  • HDMI Compliance  HDMI 2.1
    HDCP Compliance  HDCP 2.3, HDCP 2.2, and HDCP 1.4
    Video Bandwidth  40 Gbps
    Video Resolutions  up to 8K4K@50/60Hz
    Color Space  RGB, YCbCr 4:4:4, YCbCr 4:2:2
    Color Depth  8-bit, 10-bit, 12-bit
    HDMI Audio Format (Passthrough)  LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    POE Format  24V
    ESD Protection  Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
