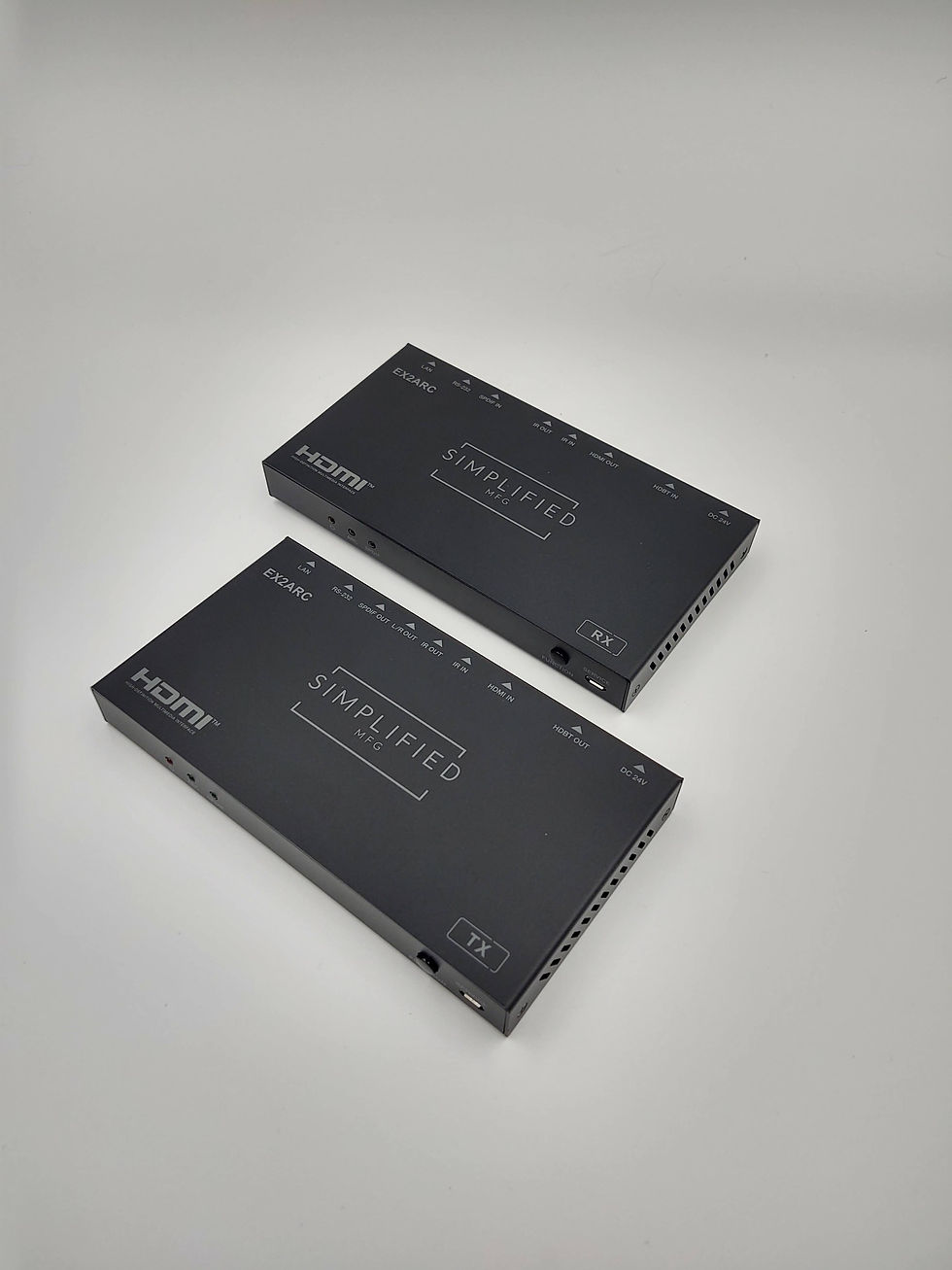

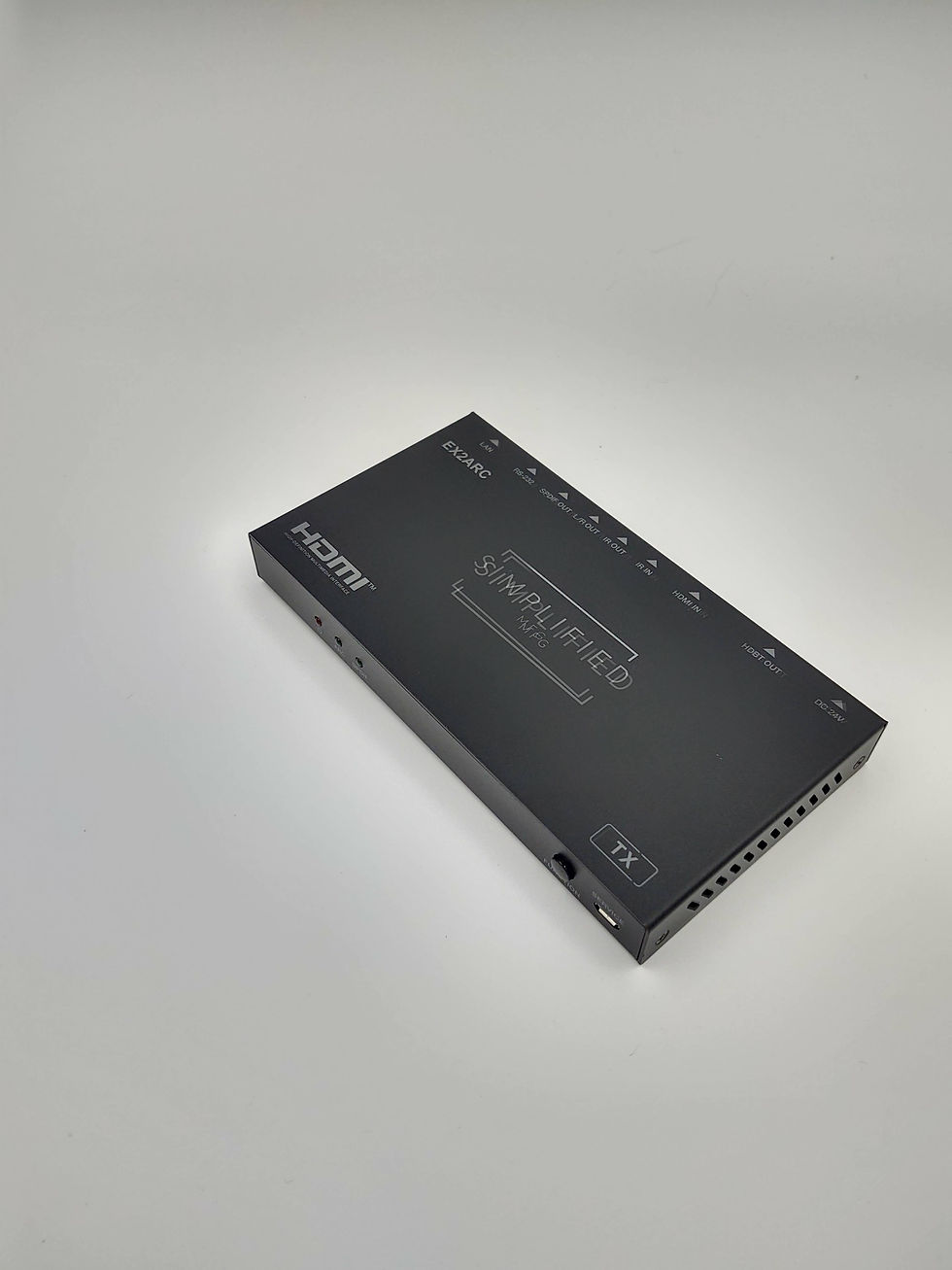

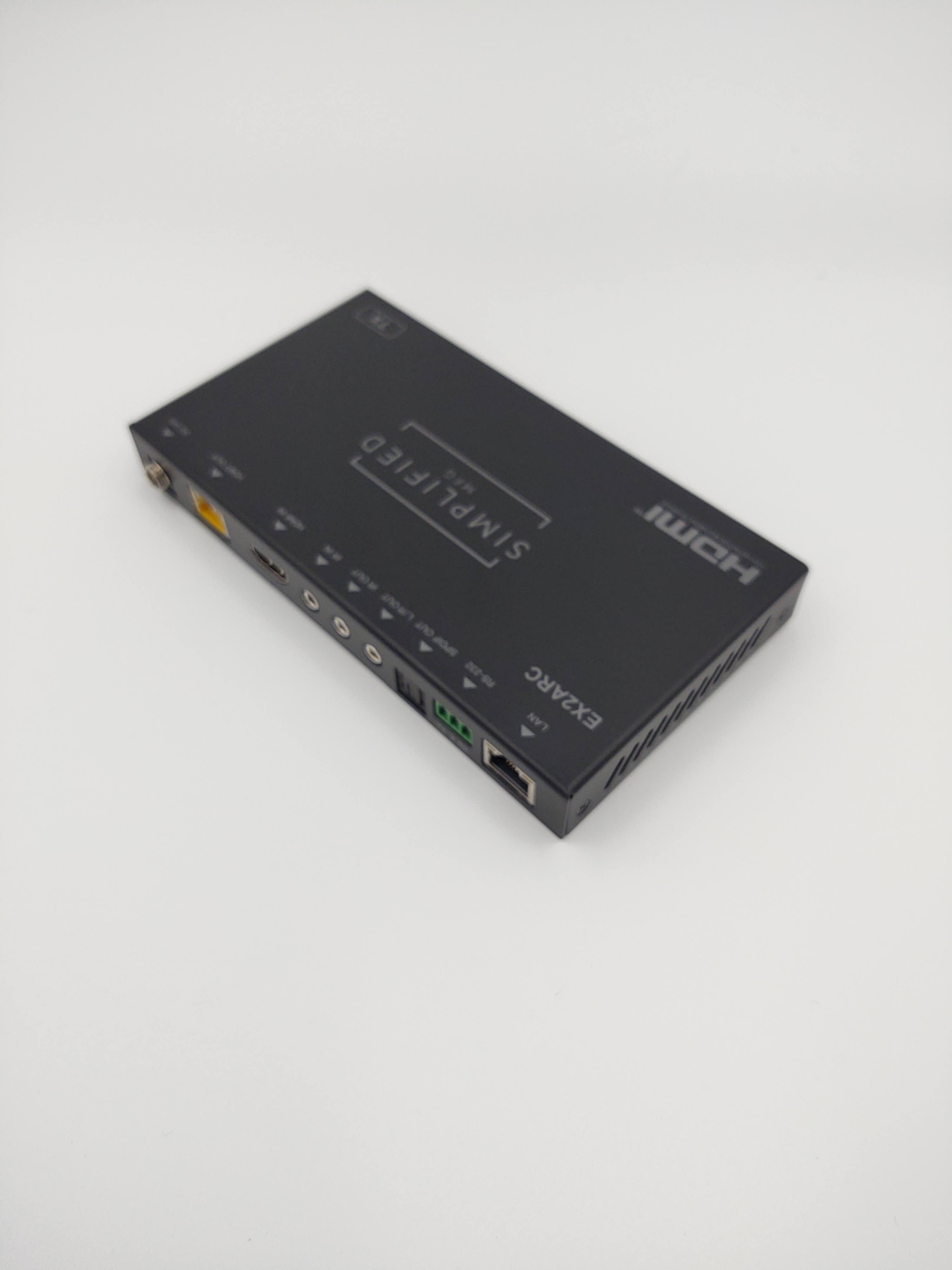

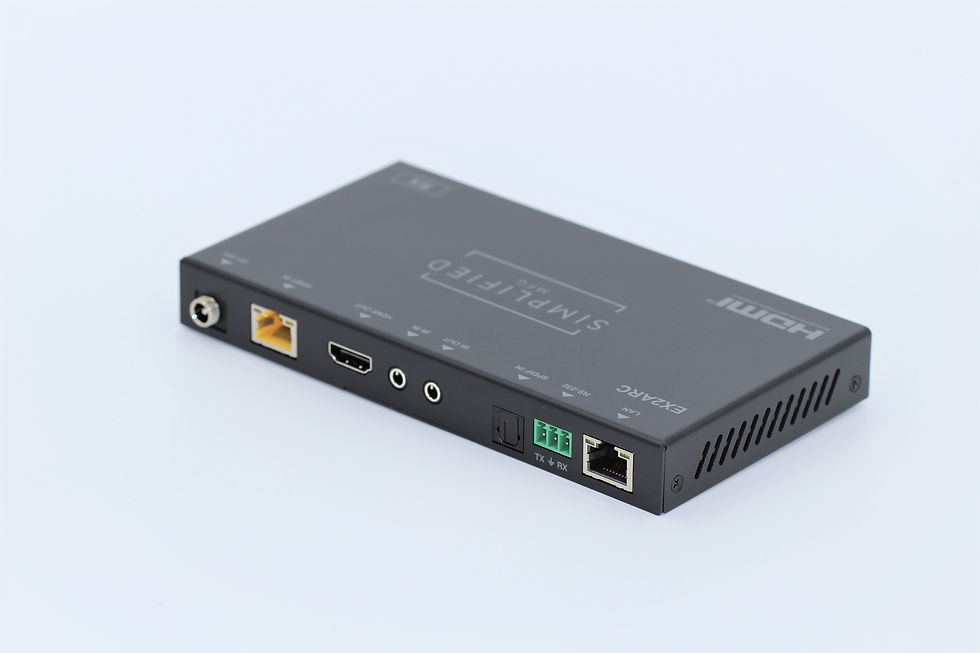

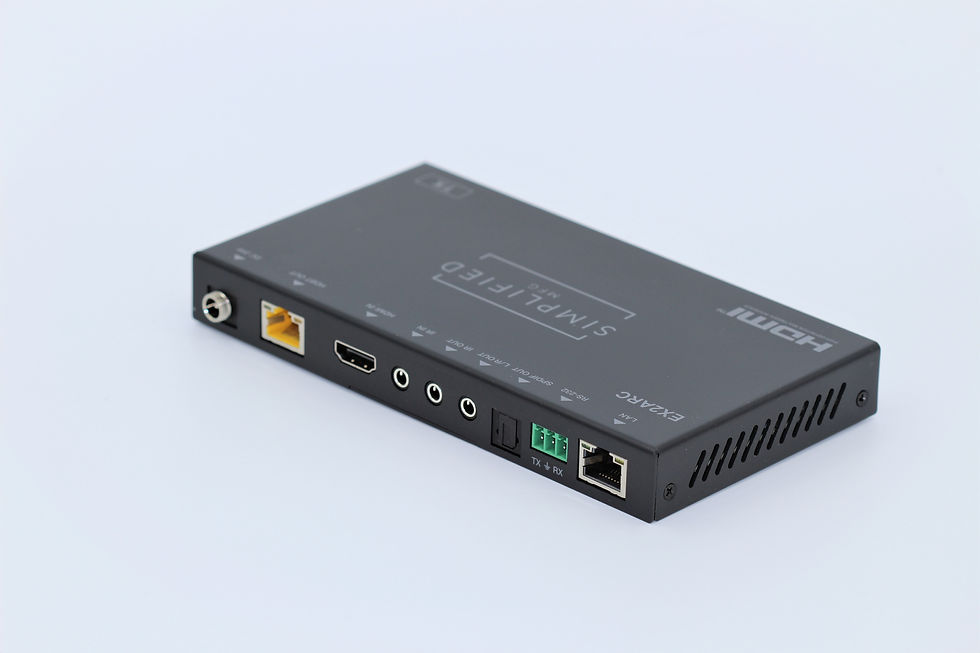

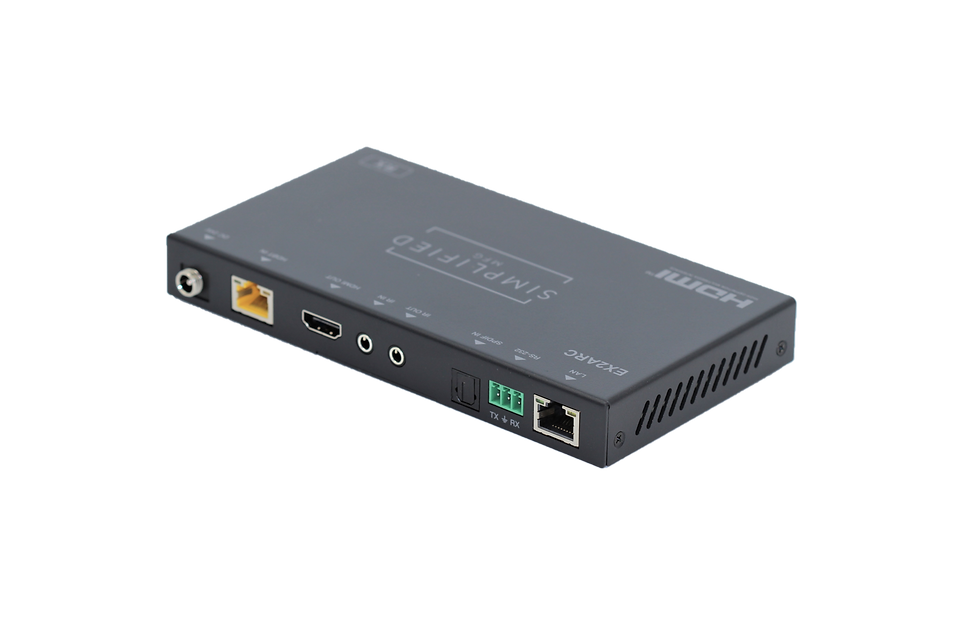

EX2ARC

4K HDMI 90m/230 ft. on Cat6/Cat 5e 18Gbps extender
​
The EX2ARC 18Gbps HDMI Extender is a device which can extend your HDMI signal over 330ft/100meters to a compatible 1080p display, 295ft/90meters to a HDMI 2.0b 18gbps compatible display. The EX2ARC supports HDR8/10/10+ and Dolby Vision as well as the entire HDMI 2.0b standard.  The multifunction ARC/Audio feature makes the EX2ARC great for "one wire" situations or when you need to bring audio back to the TX/Rack from the display.  It also supports Bidirectional 12V Infrared control, RS232, & 100 Base T Ethernet together with the 18gbps HDMI 2.0b signal.
​
Primary Use: Extending HDMI AV signals along with control, ARC or S/PDIF return from display, and Ethernet over a single Category cable.

Features & Benefits:
​​
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
HDR8/10/10+ (High Dynamic Range) pass through
Dolby Vision™ pass through
Supports ARC or S/PDIF return from display to TX/Rack
Supports HDMI High Bit Rate(HBR) audio pass through
Supports CEC
Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
100 BaseT Ethernet pass through
12V Bidirectional Infrared control signal together with the HDMI signal.
Transfer Bidirectional RS232 control signal together with the HDMI signal.
Transmission distance: Over CAT6 cable
100 meters:
1080P @60Hz36bit; 3D1080P@30Hz36bit;
90 meters:
4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)
3-Year Warranty
