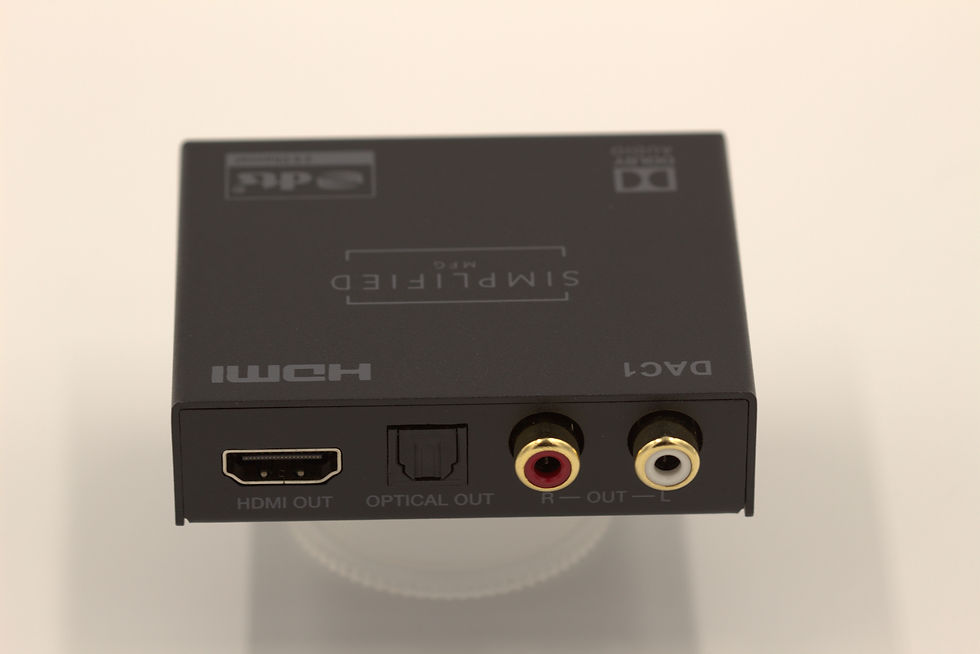

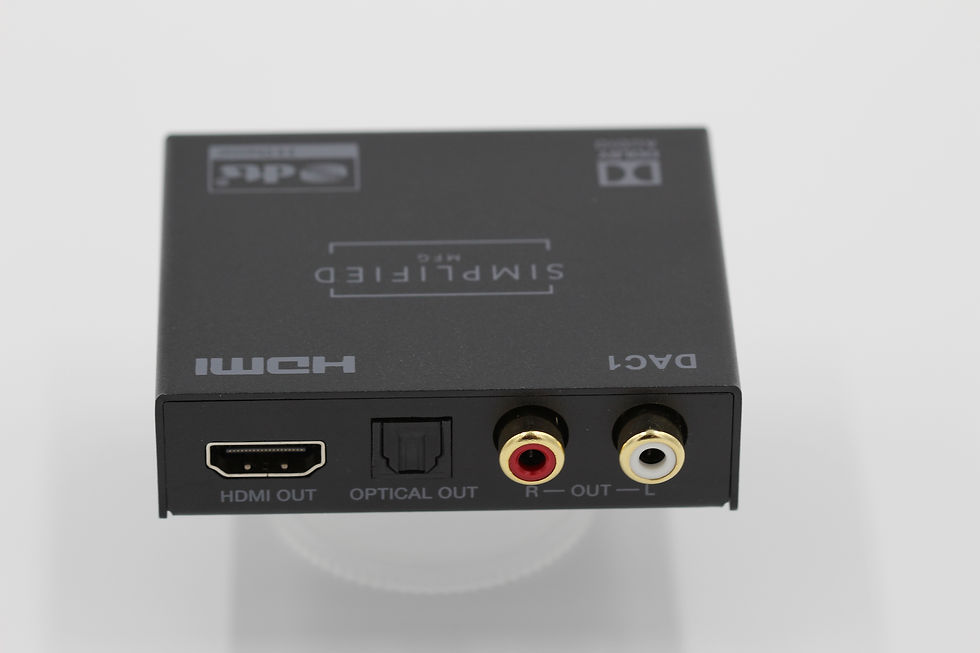

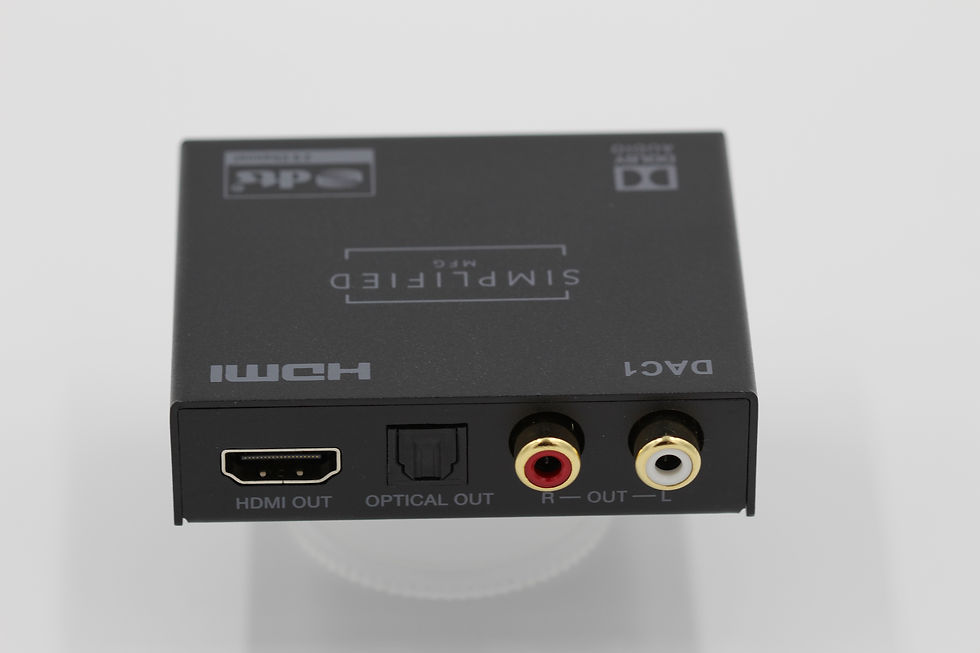

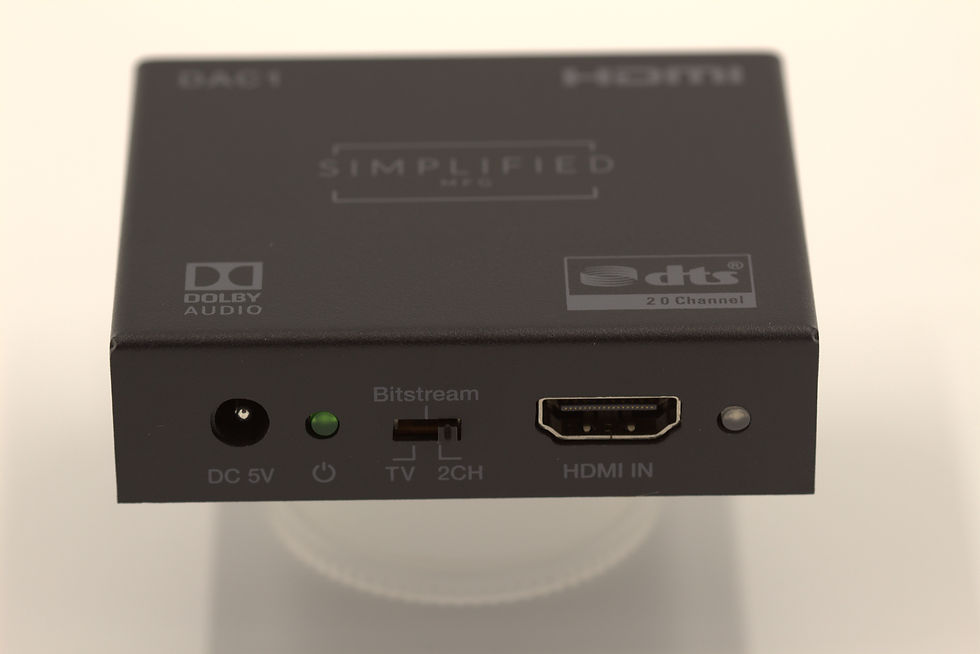

DAC1
HDMI 18Gbps Audio DownMixing Device that supports HDR/DolbyVision.
The DAC1 HDMI 18Gbps Audio Extractor extracts audio signals (Dolby 5.1 and DTS 5.1) and downmixes the signal to stereo from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Both input and output HDMI connections support video resolution up to 4K2K@50/60Hz (YUV444) while supporting HDR 8, 10, 10+, and Dolby Vision passthrough. HDCP 2.2 and CEC bypass are supported.
Primary Use: to extract audio from a media player and then convert the multichannel audio to stereo.
Features & Benefits:
HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
Supports HDMI High Bit Rate(HBR) audio pass through
Audio sample rates up to 192kHz
HDR 8, 10, 10+, and Dolby Vision (High Dynamic Range) pass through
Supports CEC bypass
3-Year Warranty
HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 594KHz (18gbps) Video Resolutions up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit, 10-bit, & 12-bit HDMI Audio Formats (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, & Dolby Digital+ Optical Audio Formats LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH L/R Audio Formats Analog Stereo 2CH
