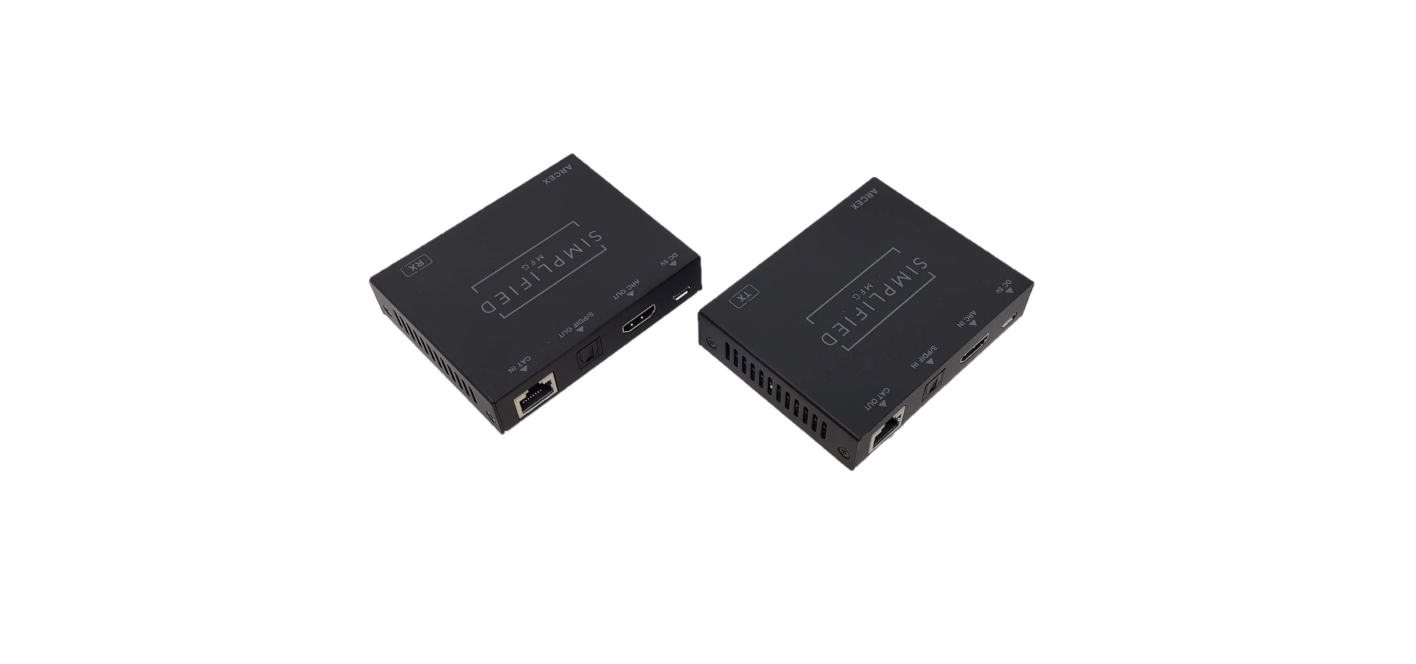

ARCEX
The ARCEX is a 90m digital audio extender that extends ARC up to 90m/295ft. to ARC capable audio devices. The units are powered via supplied USB power supplies. Power can be attained from display as the current draw of the TX device is abour 1/3 of a Watt. RX current draw is 0.7W. CEC and all ARC formats are supported from display back to rack/AVR/ARC capable amplifier.
The ARCEX can also operate as an optical to optical extender as well (S/PDIF). There is a switch on the TX portion that will switch the unit to optical mode, this will disable ARC mode. The optical does not output on the HDMI ARC.
Features & Benefits:
Use your smart TV as your audio source where your amplifier or other ARC enabled audio device is remote
Supports al ARC formats
90m/295ft via ARC, 150m/495ft. via optical
Powers via USB Micro and draws very little current so display USB ports can be used
USB Power Supplies are also included
CEC functions are retained so that TV's remote wil control the ARC enabled audio device's volume
3-Year Warranty
Technical Distance by bit rate ARC Mode 90m/295ft. Optical mode 150m/495ft. Digital to digital audio formats PCM, Dolby 5.1 Sample rates (ARC) 32kHz., 44.1kHz., 48kHz., 88.2kHz., 96kHz., 176.4kHz. & 192kHz. Sample rates (Optical) 32kHz., 44.1kHz., 48kHz., 88.2kHz. & 96kHz. ESD Protection: Human Body Model +/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge) TX Connections In: 1xHDMI, 1xOptical, & 1 USB Micro. Out: 1x RJ-45 RX Connections In: 1xRJ-45 & 1x USB Micro. Out: 1xHDMI & 1 Optical Mechanical Housing Metal enclosure Dimensions 90mm (3.54”) [W] × 73mm (2.875”) [D] × 20mm (.79”) [H] Weight RX and TX 175g/6.175oz. Power Supply (2) 5V1A DC at each device via Micro USB port (can use available USB port) Power Consumption TX - 0.35W / RX - 0.7W Operation Temperature 32~104 °F Storage Temperature -4 ~140 °F Relative Humidity 20~90 % RH (no condensation)
